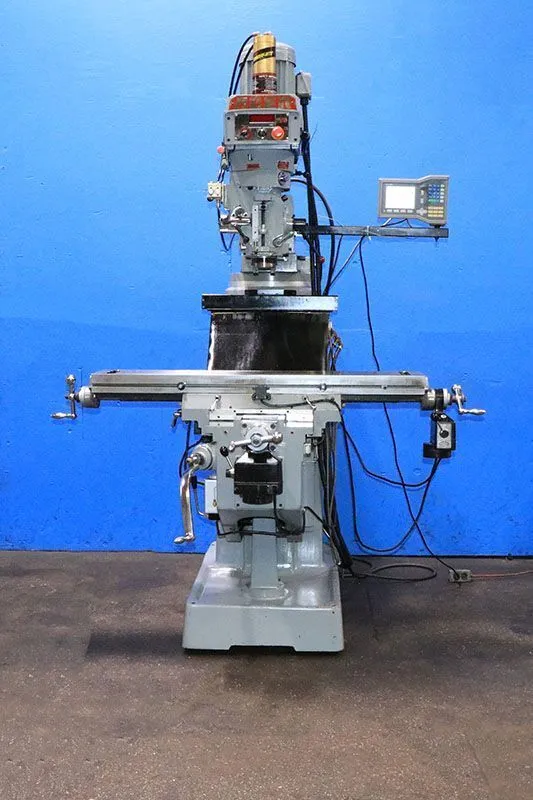

USED 2016 ACER EVS-5VK
Overview
Specs
ACER VERTICAL MILLING MACHINE
MODEL EVS-5VK, NEW: 2016
SPECIFICATIONS:
TABLE WORKING SURFACE ......................... 10" X 50"
NUMBER OF T-SLOTS (WIDTH) ..................... 3 (5/8")
RANGE: LONGITUDINAL, MANUAL (X) ............... 32-1/2"
CROSS (Y) ........................ 16"
VERTICAL, KNEE ................... 19"
QUILL (Z) ........................ 5"
RAM TRAVEL .................................... 20"
HEAD TILT, LEFT AND RIGHT ..................... 90 DEGREES
TURRET ROTATION ............................... 360 DEGREES
MAX/MIN DISTANCE, SPINDLE NOSE - TABLE TOP .... 18"/2"
(3) POWER QUILL FEEDS ............ .0015, .003, .006 I.P.R.
QUILL DIAMETER ................................ 3-3/8"
INFINITELY VARIABLE SPINDLE SPEEDS ............ 0 - 3,750 RPM
SPINDLE TAPER ................................. #40 NST
MAXIMUM COLLET CAPACITY ....................... 3/4"
APPRROXIMATE DIMENSIONS .................. 79" x 74" x 90"H
APPROXIMATE WEIGHT ............................ 3,500 LBS.
Equipped With
EQUIPPED WITH:
AC FREQUENCY INVERTER SPINDLE DRIVE
ACU-RITE TWO-AXIS DIGITAL READOUT
SERVO POWER FEED FOR LONGITUDINAL TABLE TRAVEL
SERVO POWER FEED FOR CROSS SADDLE TRAVEL
TORQUE-RITE AIR ACTUATED POWER DRAW BAR
HARDENED AND GROUND BOX WAYS FOR X & Y AXES
MEEHANITE CASTING
ONE-SHOT LUBRICATION SYSTEM
5 HORSE POWER SPINDLE DRIVE MOTOR
INSPECT UNDER POWER IN NEW JEERSE WAREHOUSE
