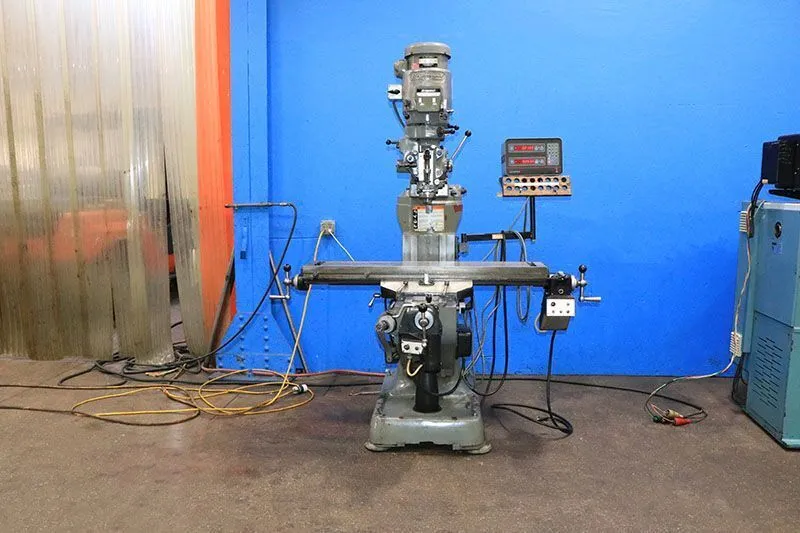

USED 1989 BRIDGEPORT SERIES 1

BRIDGEPORT SERIES 1 vertical mill, 1989, used condition. 9" x 48" table, 36" longitudinal, 12" cross, 5" quill travel. 60-4,200 RPM variable speed, R-8 taper, ACURITE two-axis readout, power feed, chrome ways, 2 HP spindle motor, 2,000 lbs.

BRIDGEPORT VERTICAL MILLING MACHINE
MODEL: SERIES I, S/N: BR 255205, NEW: 1989

SPECIFICATIONS:
TABLE SIZE .............................. 9" X 48"
NUMBER OF T-SLOTS ....................... 3
LONGITUDINAL TABLE TRAVEL ............... 36"
CROSS TRAVEL ............................ 12"
QUILL TRAVEL ............................ 5"
KNEE TRAVEL ............................. 16"
RAM TRAVEL .............................. 12"
MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 18-1/2" / 2-1/2"
MAX/MIN DISTANCE, CENTERLINE OF SPINDLE.
TP FACE OF COLUMN ................... 18-3/4" / 6-3/4"
HEAD TILT, LEFT & RIGHT ................. 90 DEGREES
HEAD TILT, FRONT & REAR ................. 45 DEGREES
INFINITELY VARIABLE SPEED RANGE ......... 60-4,200 RPM
SPINDLE TAPER ........................... R-8
MAX COLLET CAPACITY ..................... 3/4"
QUILL TRAVEL ............................ 5"
QUILL FEEDS ........................ 0.0015", 0.003", 0.006"
APPROXIMATE WEIGHT ...................... 2,000 LBS

EQUIPPED WITH:
ACURITE TWO AXIS DIGITAL READOUT
BRIDGEPORT POWER FEED FOR LONGITUDINAL TRAVEL
BRIDGEPORT POWER FEED FOR CROSS TRAVEL
CHROME WAYS
BIJUR ONE SHOT LUBRICATION SYSTEM
BRIDGEPORT SERIES I MILLING HEAD S/N: J279649
2 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
