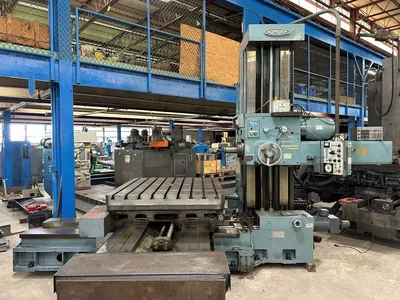

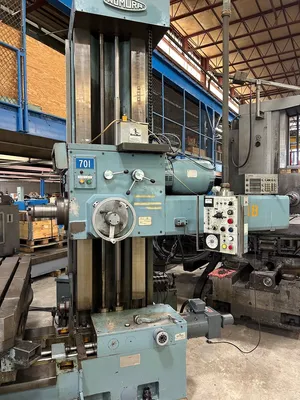

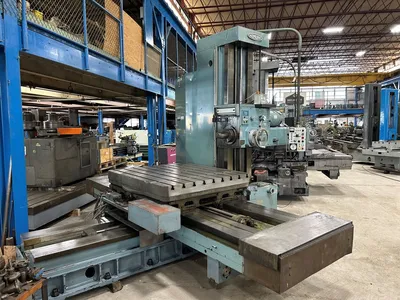

Explore productivity with the used NOMURA B-100WR table-type horizontal boring mill. Featuring a 4" spindle, 55"x63" rotary table, and 18-speed range up to 1200 RPM. Equipped with #50 taper spindle, digital readout, and 20 HP motor for efficient operations.
| Spindle Size | 3.94" | 100.08 mm |
| X-Horiz Tvl of Table | 78" | 1,981.2 mm |
| Y-Vert Tvl of Head | 60" | 1,524 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 1,200 RPM | 1,200 RPM |
| Table-W | 63" | 1,600.2 mm |
| Table-L | 55" | 1,397 mm |
| Spindle Tvl. | 26" | 660.4 mm |

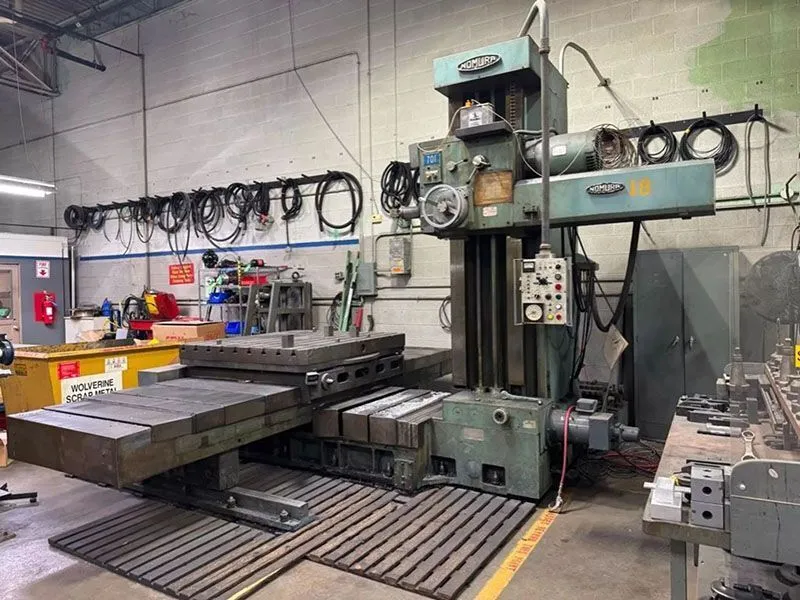

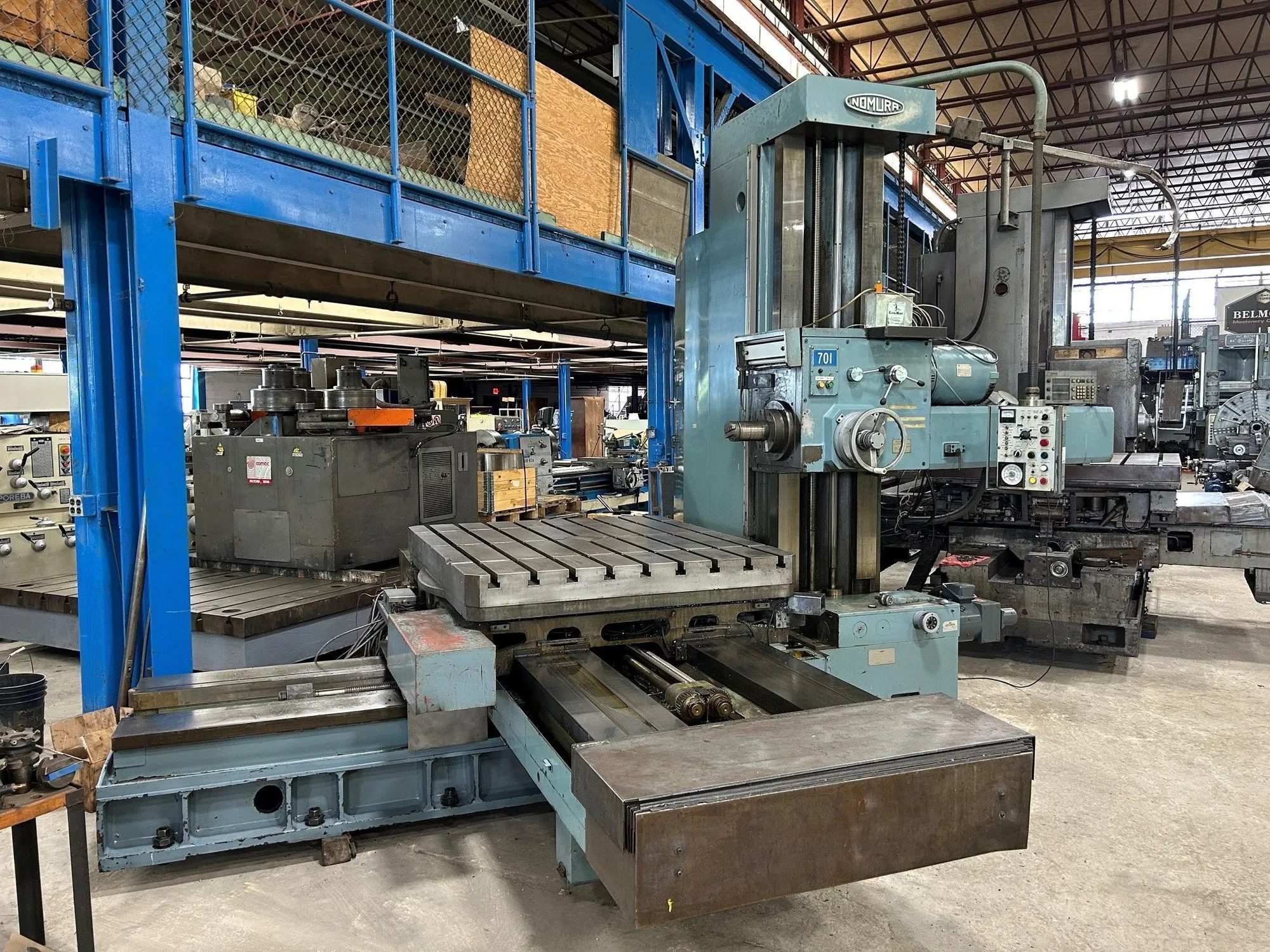

4" NOMURA TABLE TYPE HORIZONTAL BORING MILL
MODEL: B-100WR, NEW: 1980'S
SPECIFICATIONS:
SPINDLE DIAMETER ..................... 4"
SPINDLE TRAVEL ....................... 27"
SPINDLE TAPER ........................ #50
SPINDLE SPEED RANGE (18) ............. 21 TO 1200 RPM
SPINDLE FEED RANGE ................... 0.025 - 62.5 IPM

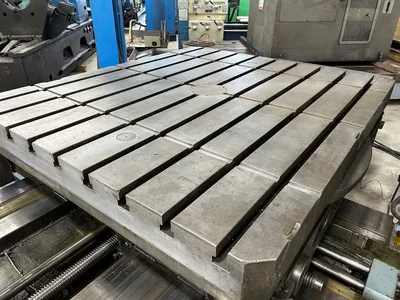

BUILT IN POWER ROTARY TABLE .......... 55" X 63"
TABLE LOAD CAPACITY .................. 13,200 LBS
VERTICAL TRAVEL OF HEADSTOCK ......... 60"
TABLE CROSS TRAVEL ................... 78"
LONGITUDINAL TRAVEL .................. 50"
MILLING FEED RANGE ................... 0.039 - 97.5 IPM
EQUIPPED WITH:
HARDENED AND GROUND WAYS
#50 TAPER SPINDLE W/POWER CLAMP

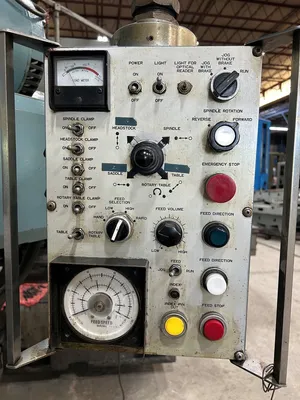

PENDANT CONTROL
FEEDS & RAPID TRAVERSE ALL AXES
SONY DIGITAL READOUT
HARDENED & GROUND WAYS ALL AXES

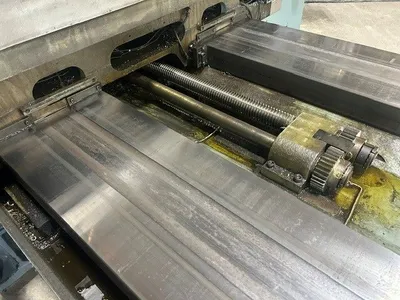

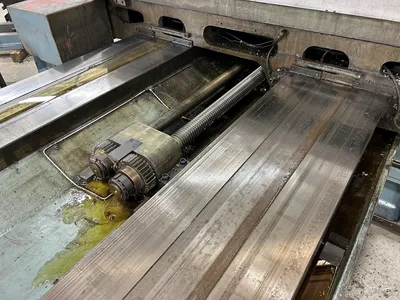

BALL SCREWS
OUTRIGGER SADDLE SUPPORTS
WAY COVERS
20 HORSE POWER MAIN MOTOR
