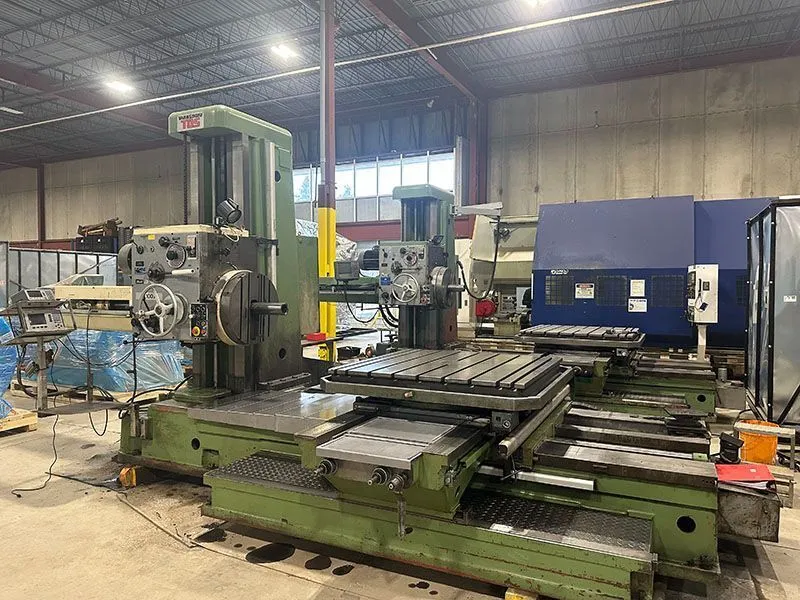

USED 1996 TOS MODEL W100A
Overview
1996 TOS Model W100A Horizontal Boring Mill, used. Features 4" spindle diameter, 49"x49" table, 63" cross table travel, and 23 shaft speeds. Equipped with rotary table, digital readout, continuous feed facing head, and more. 35,000 lbs weight.
Specs
4" TOS TABLE TYPE HORIZONTAL BORING MILL
MODEL: MODEL W100A, S/N: 3908, NEW: 1996
SPECIFICATIONS:
DIAMETER OF SPINDLE ............... 4"
TAPER OF SPINDLE .................. #50 STD.
SPINDLE TRAVEL .................... 35-1/2"
WORKING SURFACE TABLE ............. 49" X 49"
CROSS TABLE TRAVEL ................ 63"
MAX DISTANCE SPINDLE TO TABLE ..... 44"
SADDLE TRAVEL ..................... 49"
SPINDLE SPEEDS (23) ............... 7.1 TO 1120 RPM
FACEPLATE SPEEDS (16) ............. 7.1 TO 224 RPM
BORING FEED RANGES (32) ........... .0008 TO .47 IPR
MILLING FEEDS (18) ................ .7 TO 35.4 IPM
ROTARY TABLE FEEDS (18) ........... .98 TO 55 IPM
RAPID TRAVERSE RATE ............... 110 IPM
MAXIMUM WEIGHT OF WORK PIECE ...... 6,600 LBS.
WEIGHT APPROXIMATELY .............. 35,000 LBS.
Equipped With
EQUIPPED WITH:
- POWER DRAW BAR
- ACU-RITE FOUR AXIS DIGITAL READOUT
- NEW HEIDENHAIN DIGITAL DISPLAY & ENCODER FOR ROTARY AXIS
- ROTARY TABLE
- 23-1/2" BUILT-IN CONTINOUS FEED FACING HEAD
- NEW X & Z WAY COVERS
- INCH/METRIC THREADING CAPABILITY
- HARDENED AND GROUND BED AND TABLE WAYS
- 15 HORSE POWER MAIN MOTOR
