Available Immediately. Please note: Sold “as‑is, where‑is.” Pricing excludes decommissioning, loading, shipping, installation, training, taxes, and all other associated costs.
| Power | 25 hp | 18.6 kW |
| RPM | 4,000 RPM | 4,000 RPM |
| Control | CNC | CNC |
| Dimensions | 47" × 47" (1200 × 1200 mm) | 47" × 47" (1200 × 1200 mm) |
Drill Heads 1 Vertical / Monospindle Head
Spindles 1
Spindle Power 25 HP (19 kW)
Spindle Speed 180–4,000 RPM (some later configs up to 5,000 RPM)
Max Drill Diameter 1-9/16" (40 mm)
Tool Changer 6-Station Automatic Tool Changer

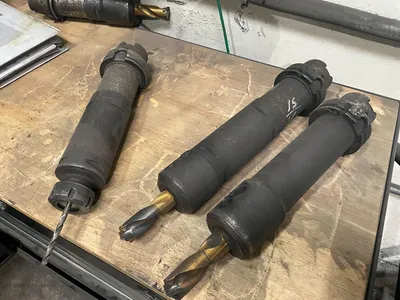

Tool Holder HSK A80
Max Beam Capacity 47" × 47" (1200 × 1200 mm)
Min Section Depth 2"
Beam Processing Length 40 ft.
X-Axis Speed ~115–138 FPM
Y-Axis Speed ~470–742 IPM

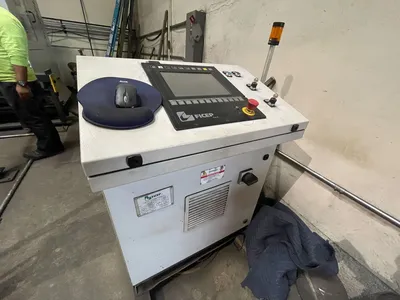

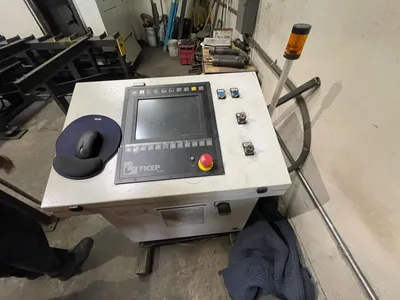

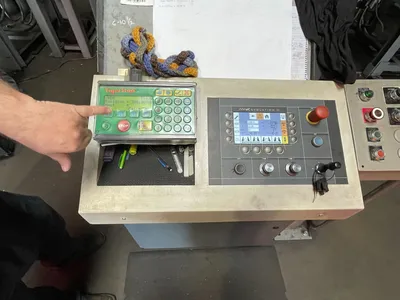

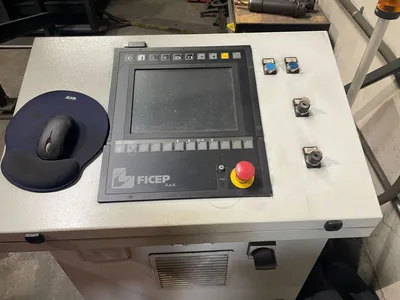

CNC Control Pegaso REX12 / Ficep Windows-based CNC
Spindle Type Direct Drive
Coolant System Internal & external drill coolant

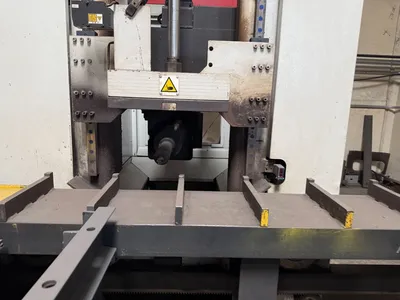

Clamping System Automatic hydraulic top/bottom clamp

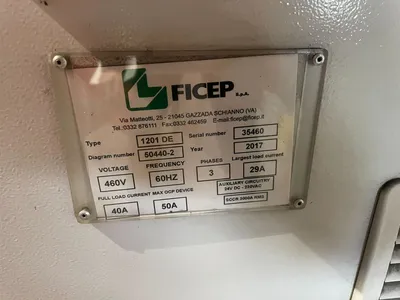

Power Requirement 460V / 3-phase common
Material Types Wide flange, HSS tube, channel, angle, flat bar
