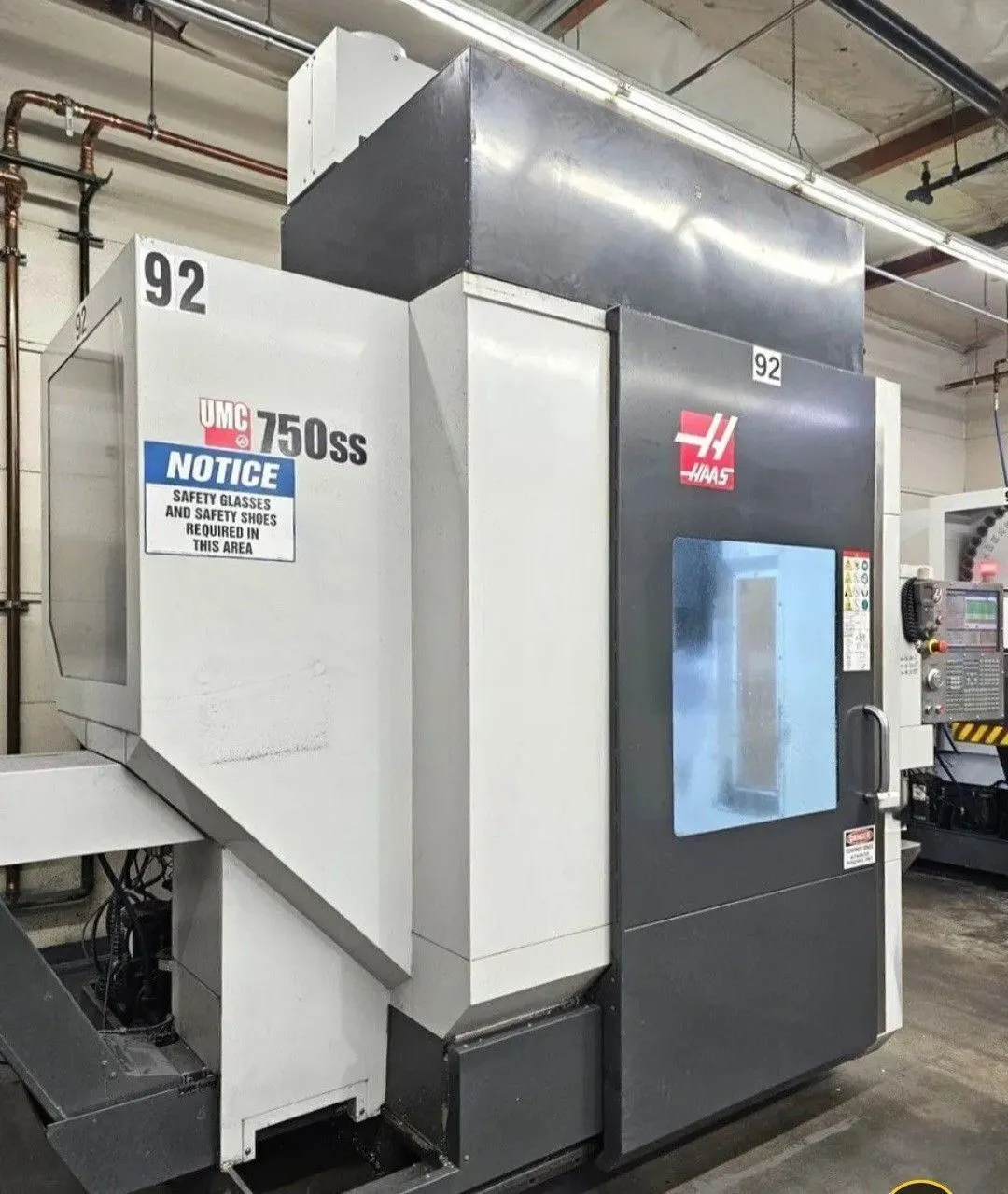

USED 2017 HAAS UMC-750SS

Haas UMC-750SS CNC Universal Machining Center, New in 2017
Chip Conveyor, WIPS, 40 ATC

General Specifications:
Table size: 19.7" x 24.8"
Table load capacity: 660 lbs
X axis travel: 30"
Y axis travel: 20"
Z axis travel: 20"
B axis rotate of trunnion: -35 Degrees to 110 Degrees
C axis table rotation: .001 Degree Positioning
Spindle taper: CAT #40
Spindle speed: 15,000 RPM
Spindle motor: 30 HP
Distance Spindle Nose to Table Top: 4" - 24"
Tool magazine: 40
Maximum Tool Diameter / Length / Weight: 5" / 12" / 12 lbs.
Rapid traverse rates: 1200 IPM
Maximum feed rates: 650 IPM

Machine dimensions: 162" x 113" x 110"
Machine weight: 20,000 lbs

HAAS CNC CONTROL WITH 1 GB MEMORY EXPANSION
RJH-C - REMOTE JOG HANDLE WITH COLOR LCD
ETHERNET INTERFACE
HAAS CONNECT OPTION
2-AXIS PROGRAMMABLE TRUNNION TABLE
40-POSITION AUTOMATIC TOOL CHANGER
15,000 RPM SPINDLE
HIGH SPEED MACHINING VPS EDITING
HOME - SECOND HOME POSITION
MEDIA DISPLAY - MEDIA DISPLAY M-CODE
WIPS-R-EC RENISHAW INTUITIVE PROBING
RENISHAW OTS TOUCH-OFF PROBE
MACROS
UMC-750SS - VMC UMC MEDIUM
ROTATION AND SCALING
RTAP-3 RIGID TAPPING
DWO-DYNAMIC WORK OFFSETS & TCPC-TOOL CENTER POINT CONTROL
M19 SPINDLE ORIENTATION
COMPENSATION TABLES
PROGRAMMABLE COOLANT NOZZLE
300 PSI THRU SPINDLE COOLANT
EC-E4 BELT-TYPE CHIP CONVEYOR

LOCATION: Under Power in Northern California
