USED 2024 TSUGAMI B0205-VR

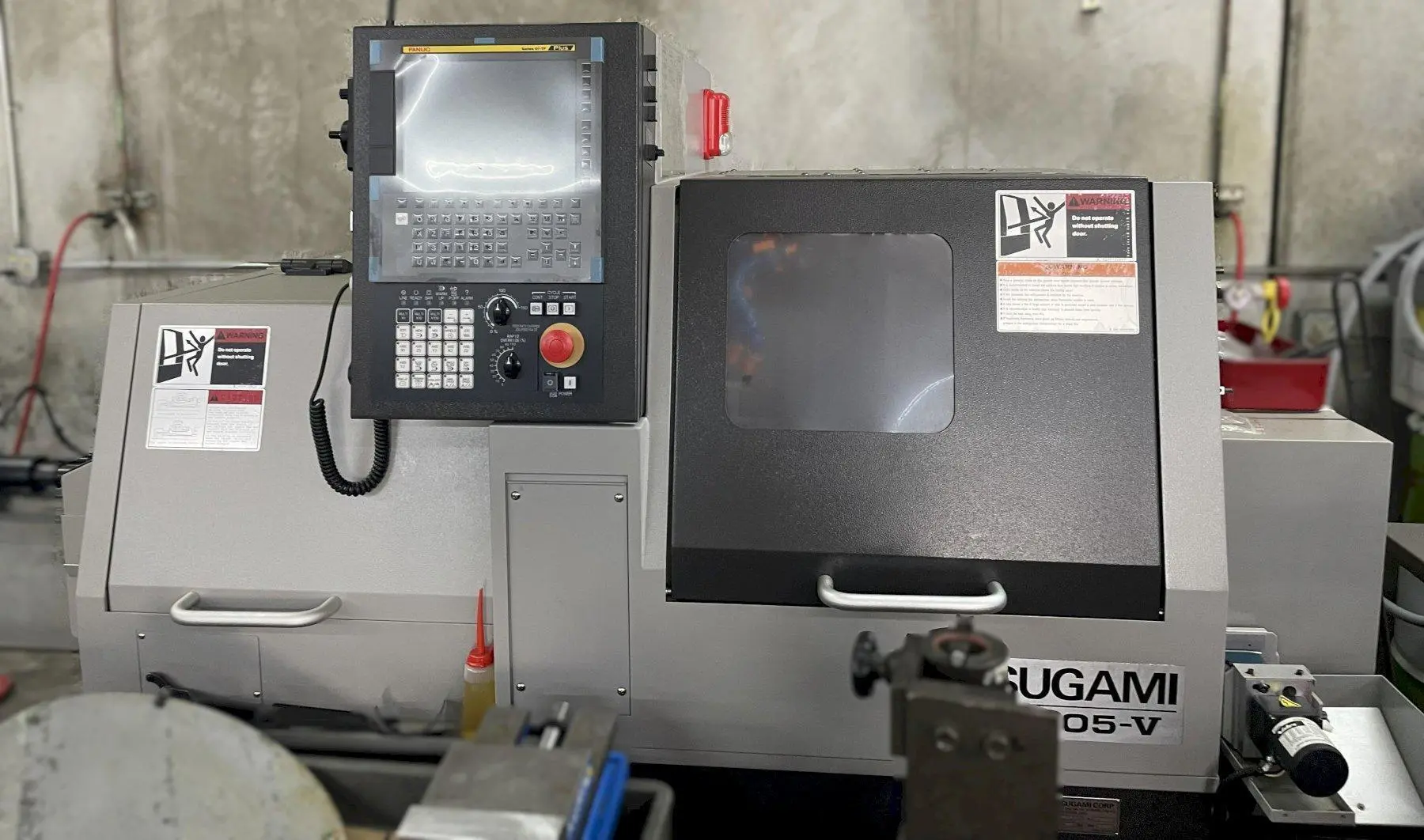

Tsugami B0205-VR CNC Swiss-Type Lathe
Mfd. 2024
Hours: 73
NEVER RAN PRODUCTION!

Accessories & Options:

Fanuc 0i-TF Control
Fire Trace Fire Suppression (5 lbs)
B0-WORK-KIT MKIII Work Conveyor
Through Sub-Spindle Coolant with Pump
Abile Programming Software
Edge Scout 320 Barfeed
Two Channel Sets

Specifications:

Max Machining Diameter: .787"
Max Headstock Stroke: 6.69" (Guide Bushing) / 1.771" (Chucker)
Main Spindle Speed: 10,000 rpm
Sub Spindle Speed: 12,000 rpm
Live Tool Spindle Speed: 8,000 rpm
Tool Positions: 21
Sub Spindle Max Machining Diameter: .787"
Sub Spindle Front Ejection Max Length: 3.15"
Max Tool Spindle Slotting Cutting Diameter: 1.18"
Rapid Traverse Rate: 36M/min
Main Spindle Motor: 7.5 hp | Sub Spindle Motor: 5.0 hp
Coolant Tank Capacity: 47 gal.
System Input Power: 13.0 KVA
Compressed Air: 60 psi
Dimensions: 69" x 41.5" x 67" | Weight: 3,968 lbs
