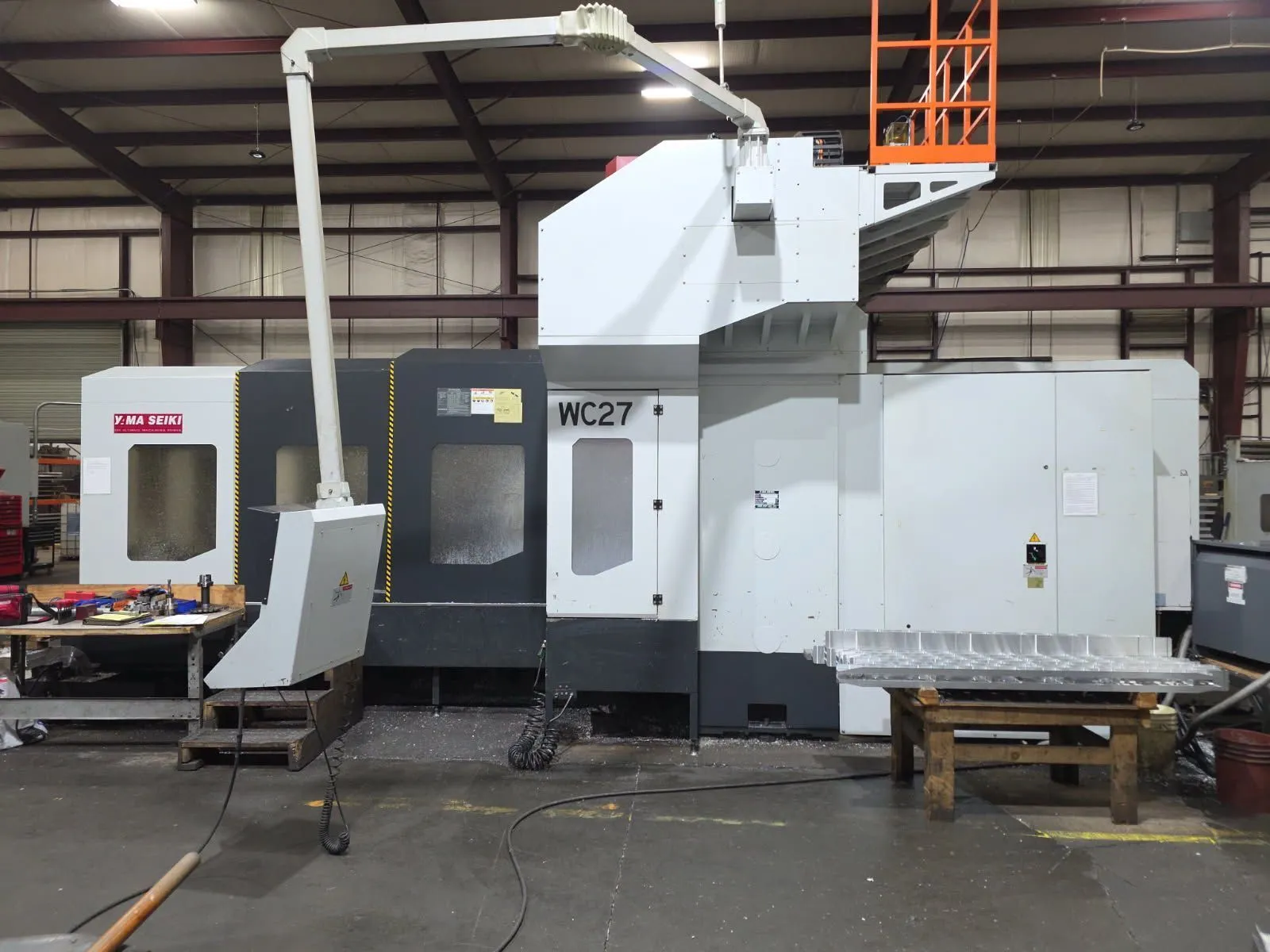

USED 2017 YAMA SEIKI MEGA 5 P3020

Yama Seiki Mega 5 P3020 Bridge Type Vertical Machining Center, New in 2017

General Specifications:
Control: Heidenhain 640 series
X-axis travel: 118.1"
Y-axis travel: 98.4"
Z-axis travel: 39.3"
Table Size: 126" x 60"
Max. table load: 26,450 Lbs.
Spindle taper: HSK-100A
Spindle speed max: 15,000 RPM
Spindle motor ( 30 min. / cont. ): 66 / 53 HP
X-axis rapid feedrate: 393 ~ 787 IPM
Y-axis rapid feedrate: 590 IPM
Z-axis rapid feedrate: 393 IPM
Tool Changer: 40 ATC

SPECIFICATIONS ADDITIONAL:
X-Axis Travel 118" 3,000 mm
Y-axis travel 100" 2,560 mm (Vertical head/ 2,000 mm ( Horizontal head )
Z-axis travel 39" 1,000 mm
Distance between columns 66.9" 1,700 mm
Distance from spindle nose to table top mm 200 ~ 1,200
Distance from 90o spindle center line to table mm 480 ~ 1,480
Table size ( X x Y ) mm 2,310 x 1,500
T slot ( Width x Distance ) mm 22 x 170

SPINDLE:
Spindle taper HSK-100A
Spindle motor ( cont. / 30 min ) kW 56 / 70
Spindle speed rpm 15,000
FEED RATE:
X-axis rapid feedrate m/min. 20
Y-axis rapid feedrate m/min. 20
Z-axis rapid feedrate m/min. 15
Cutting feedrate m/min. 1 ~ 10
TOOL MAGAZINE
Tool magazine capacity 40 ATC
Max. tool length mm 350
Max. tool weight kg 8
Max. tool diameter / adj. pocket empty mm Ø140 / Ø180

GENERAL
Coolant tank capacity liter 420
Lubrication oil tank capacity liter 6
Hydraulic unit tank capacity liter 100
Pneumatic pressure requirement ( min. ) kg/cm2 6 ~ 8 ( 6 )
Max. work-piece dimension:
Length ( X-axis ) mm 3,000
Width ( Y-axis ) mm 1,500
Height ( Z-axis ) mm 850

Heidenhain 640 Series 5 CNC Control
Through Spindle Coolant
40 Station ATC
Full Splash and Chip Enclosure
Spindle Cooling System
Centralized Automatic Lubricating System
Twin Screw Type Chip Augers
Electric Cabinet with Air Conditioner
Mobile Handwheel
Foot Switch for Tool Release
