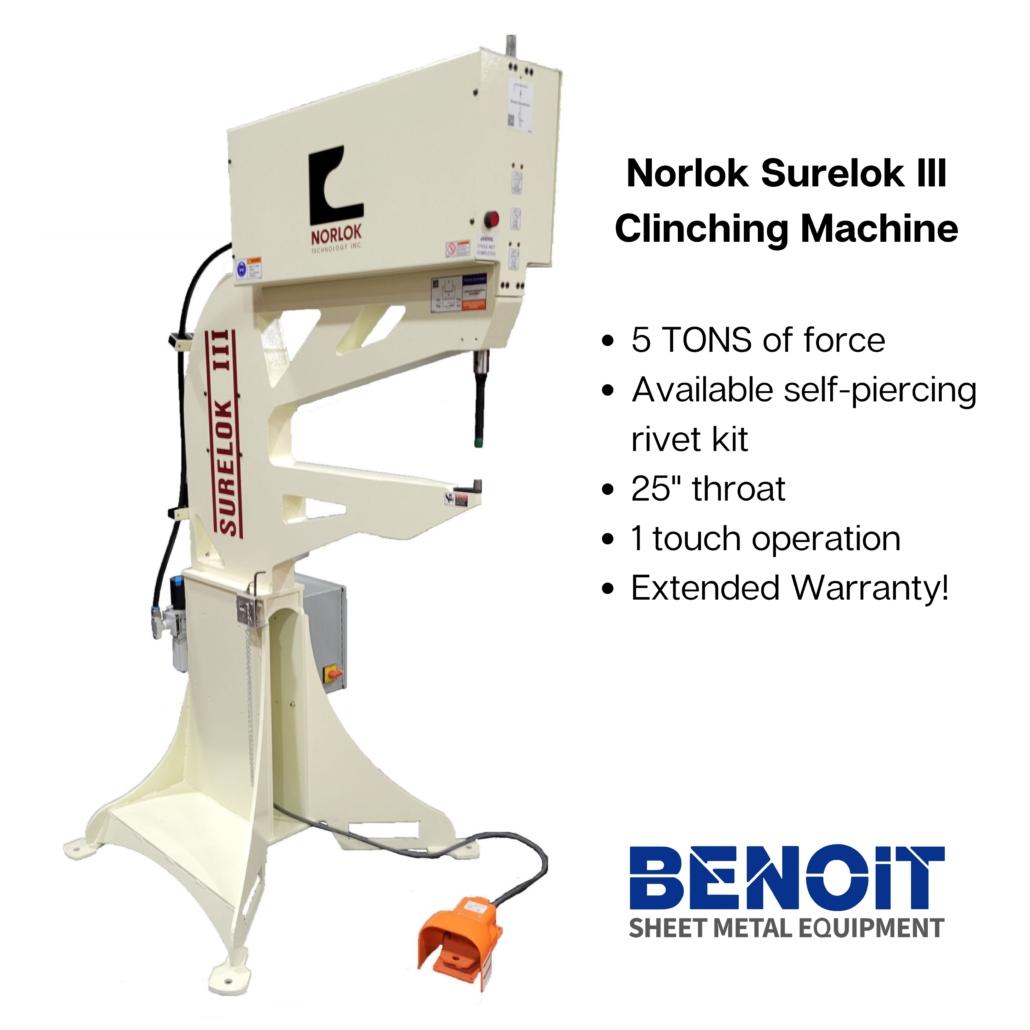

NEW NORLOK SURELOK III

STANDARD FEATURES:
Throat 25″
Choose the depth of frame behind punch
Round Punch
Comes with 1 punch, 3 Dies, Punch Stripper, and Die Collar
Close reach lower arm
Clinch in tight areas – also great for pipes
2 piece die holder and insert
Fast to change and easy to clean
Adjustable 2 1/2″ stroke
Adjust open height to minimize pinch point
“Intelligent” Safety stroke
Reduces pinch point to less than 1/4″ (6.4mm) even with 2 1/2″ (64mm) stroke.
High speed control
1 touch operation with increased speed & reliability
– includes pressure sensing circuit.
Laser pointer
Shows where clinch will be made – easy to use
– meets all regulations for laser pointers.
Air Filter / Regulator / Shutoff
Nothing to add – just plug your air line into the shut off valve
Extended Warranty
standard warranty is 3 years (punches and dies excluded).
OPTIONS
Rectangular Tooling
(for Stainless Steel, non-rotating, and Multi layer applications)
1 Complete Set of tooling for 0.12″ (3mm) Rectangular clinching.
Includes a Punch Stripper for Rectangular Punch and a Die Collar for Rectangular Die.
Reversible Tooling
(Punch or Die mounts in upper or lower tooling)
1 Set of tooling as either Ø0.18 Round (4.6mm) or 0.12″ (3mm) Rectangular clinching.
Includes a Punch, Punch Stripper, and Tooling shaft. [Dies sold separately]

Superior features include:
APU – Advanced Power Unit.
The New Surelok III is Faster, Smoother, Quieter and Uses less air than ever before.
Stainless Steel Ready.
Order your rectangular tool kit and clinch up to 2 layers of 18 Gauge Stainless Steel (304,308,316 etc).
No hassle 2 minute changeover.
5 Tons of Air Power.
Adjustable 2 1/2″[63mm] Stroke.
Convenient Adjustment makes accuracy and safety a snap.
SPR Tooling Kit – Now available.
