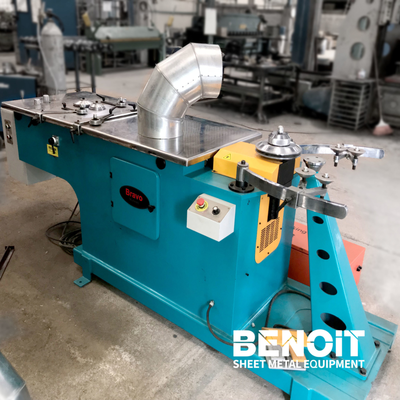

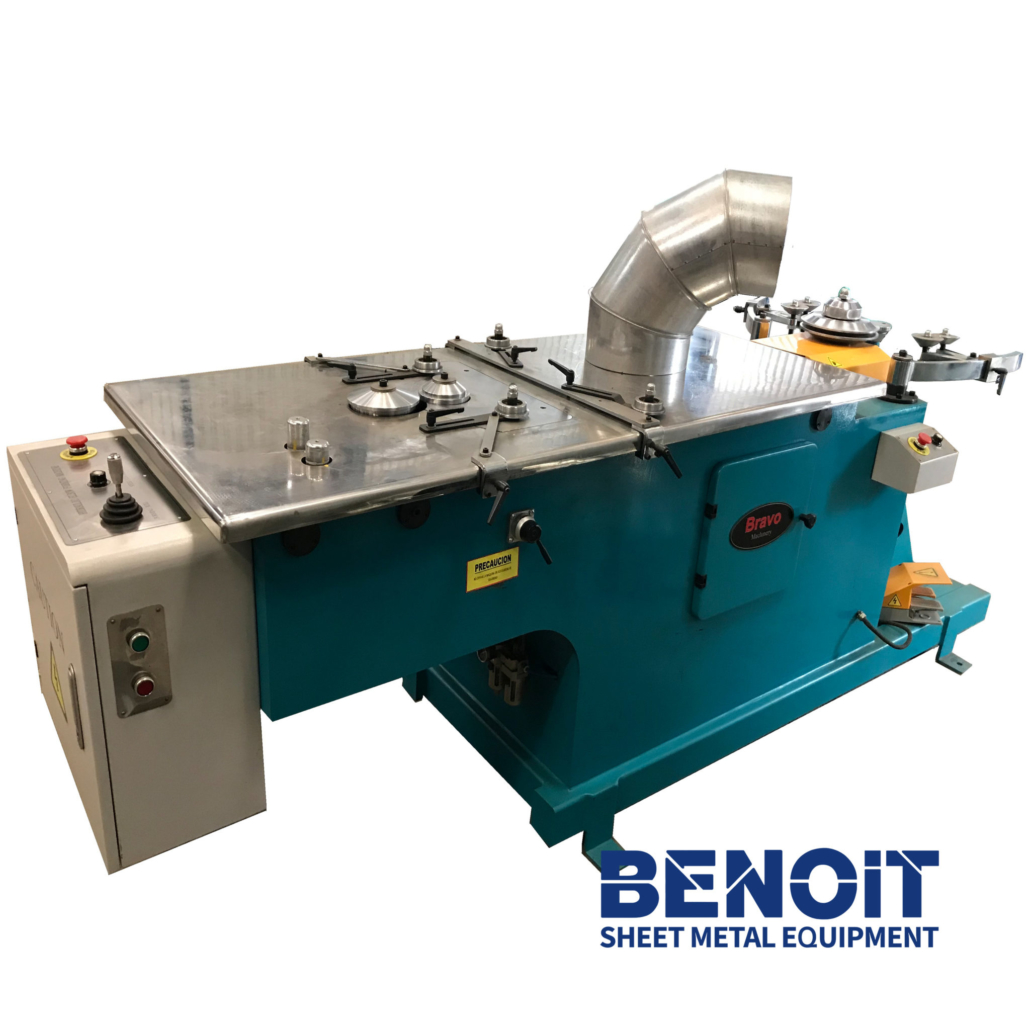

Bravo Hydraulic Elbow Forming Machine

NBRAVHEM
Gore-Locking Elbow Machine

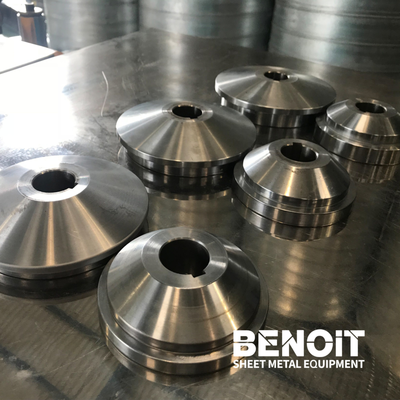

Edge-forming made easy with 3 sets of forming rolls, forming up to 48″ diameter x 18 Ga

Diameter Range: 5” to 50”
Max segment angle: 30 degrees (90 degree elbow, 4 parts)
Material Thickness
(26 ga- 16 ga.) galvanized steel
(26 ga.-22 ga.) stainless steel
(22 ga-18 ga) aluminum
Flanging Speed
Max. Adjustable to 120 m/min. (394 fpm)
Production Time
90 sec. (bend ø 200 mm, 90° / 4 segments)

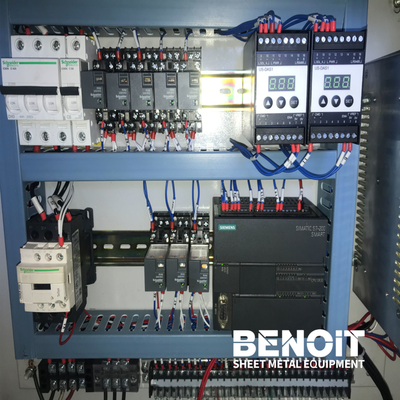

Electrical Connection:
4KW, 220volts/3phase/60Hz
