Bravo TF360 Spiral Duct Forming Machine

NBRAVTF360

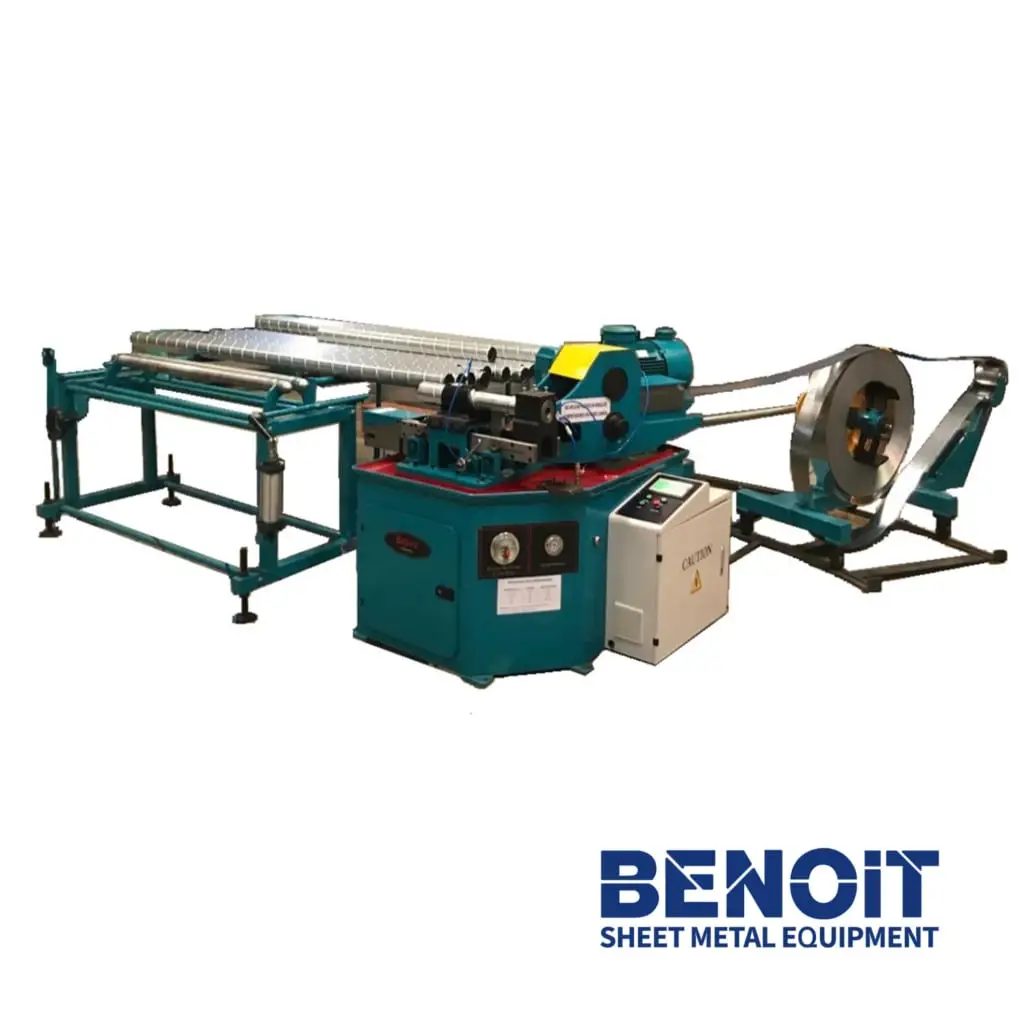

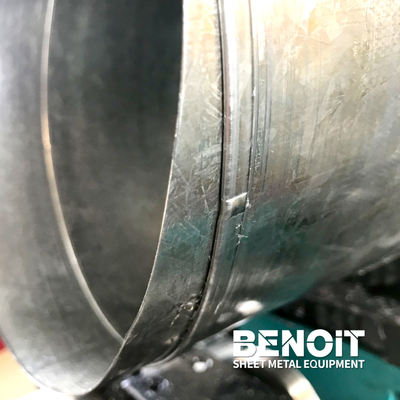

TF 360 Spiral Tube Former
Spiral Duct Forming Machine

Power: 220/3/60
Pneumatics required: 100 psi with minimum of 200 l/min.
Capacity: 26 ga. to 18 ga. galvanized mild steel (26-22 Ga SS)
Strip width: 5.394”
Foot print –  154” x 140” x 70”high
Weight – 4,630 lbs
Programmable feed speed range approx. 0-100 FPM.
Included Features:

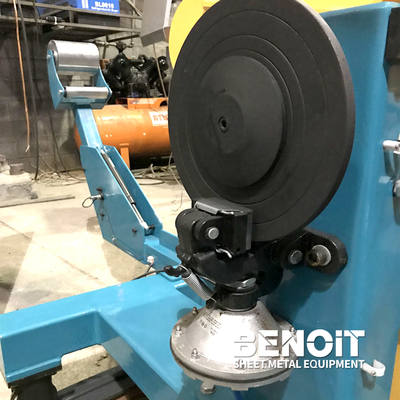

2200 lb capacity payoff reel.

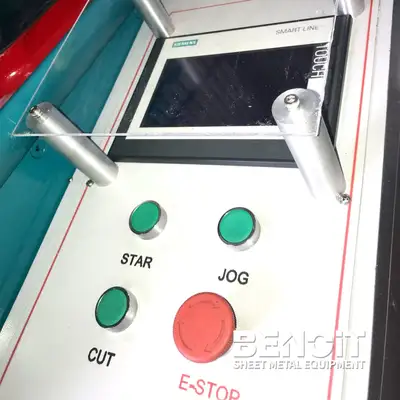

Control Panel with easy to use interface…programmable in English – Spanish
Length control by Infrared Sensor Switch
Flying Slitter Cut-off System….smooth and quiet.
Plasma Cutting System… special for heavy gauges.
10ft Run Out Table with Automatic Dumping
Receiver table for duct sections dumped from the Run Out Table
Beading Attachment optional (for stiffening lighter gauges)

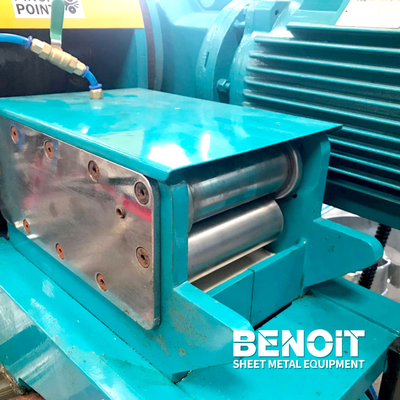

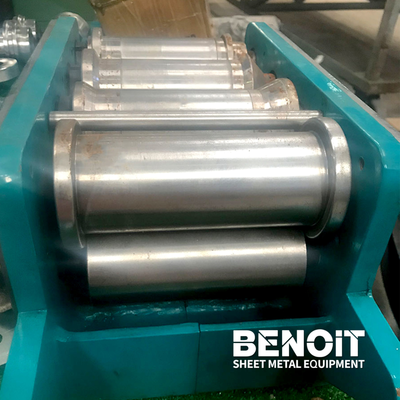

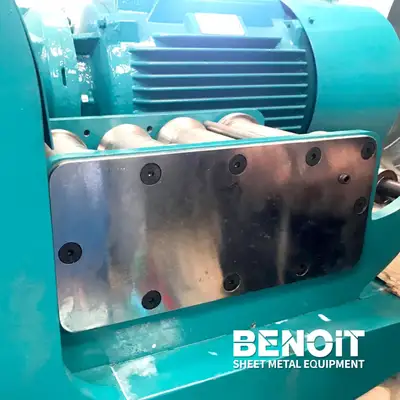

Two roll formers cassettes to enable duct forming from 26 gauge to 18 gauge galvanized.

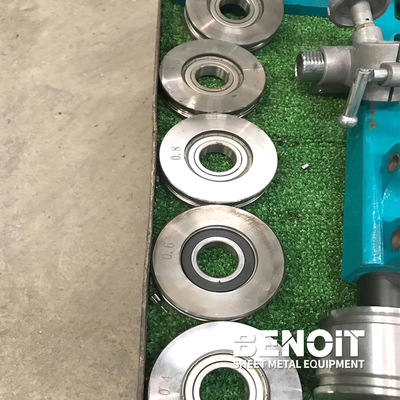

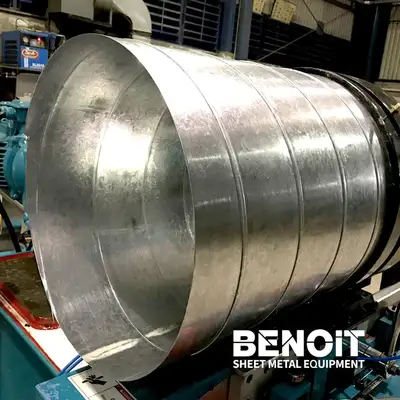

Hard Tool Molds, from 4” to 70” (pairs diam)
Forms mild steel, aluminum and stainless
Meets SMACNA Standards
Internationally recognized and available components to include but not limited to:
Schneider Electrics
Siemens PLC and Touchscreen

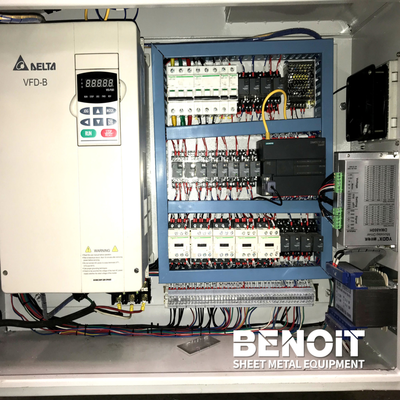

Delta Inverter
NSK Bearings
Hypertherm Plasma Unit
Expected Performance (based on 10 ft sections)
– 0.5 mm (0.020’’) thickness – 100 mm (4”) diameter –  120 Ducts/hour
– 0.7 mm (0.028’’) thickness – 500 mm (20”) diameter –  45 Ducts/hour
– 0.9 mm (0.035’’) thickness – 1250 mm (50”) diameter – 15 Ducts/hour
