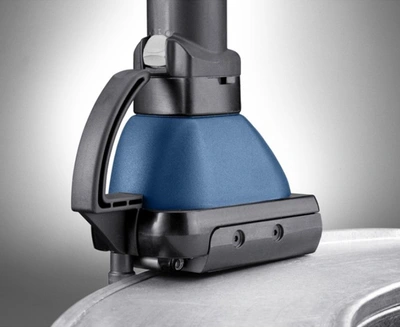

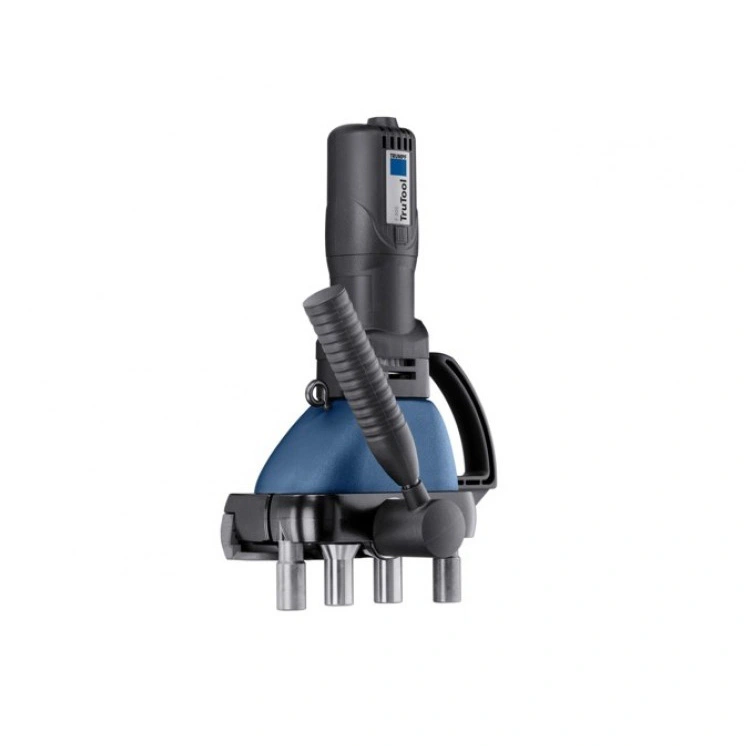

NEW TRUMPF TRUTOOL F 300, TRUTOOL F 301
Overview
Description

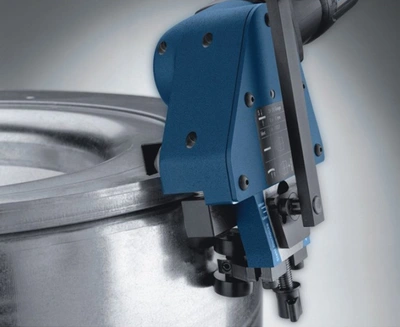

The TruTool F 300 closes Pittsburgh seams in straight or bent ducts in an independent roll-glide process. The sheet thickness range extends from 0.03 to 0.05 inch mild steel. The seam locker works conveniently and quietly; the infeed ensures continuous and tight seams. There is no need for conversion for processing of shaped and curved pieces. Adaptation to sheet thickness is automatic. On-site assembly is also possible.
The important qualification for these tools is the height of the seam to be closed: the F 301, recommended for applications from 19 to 26 gauge, requires a minimum seam height of 1/4″. The F 300 is recommended for 18 gauge duct, and requires a minimum seam height of 5/16″.
Product Specifications
TruTool F 300 (230V)
TruTool F 300 (110V)
Min. sheet thickness
Steel 400 N / mm²
0,75 mm
0,75 mm
Max. sheet thickness
Steel 400 N / mm²
1,25 mm
1,25 mm
Min. flange height (B)
Sheet thickness – 0.75
9 mm
9 mm
Sheet thickness > 0.75 – 1
11 mm
11 mm
Sheet thickness > 1 – 1.25
13 mm
13 mm
Working speed
4-7 m/min
4-7 m/min
Smallest inner radius (preformed)
150 mm
150 mm
Smallest outer radius
300 mm
300 mm
Rated input power
600 W
500 W
Weight (electrical version: without cable, cordless version: with battery)
5,4 kg
5,4 kg
TruTool F 301 (230V)
TruTool F 301 (110V)
Min. sheet thickness
Steel 400 N / mm²
0,45 mm
0,45 mm
Max. sheet thickness
Steel 400 N / mm²
1 mm
1 mm
Min. flange height (B)
Sheet thickness – 0.75
7,5 mm
7,5 mm
Sheet thickness > 0.75 – 1
8 mm
8 mm
Working speed
4-7 m/min
4-7 m/min
Smallest inner radius (preformed)
150 mm
150 mm
Smallest outer radius
300 mm
300 mm
Rated input power
500 W
500 W
Weight (electrical version: without cable, cordless version: with battery)
5,2 kg
5,2 kg
TruTool F 305 (230V)
TruTool F 305 (230V)
Min. sheet thickness
Steel 400 N / mm²
0.45 mm
0.45 mm
Max. sheet thickness
Steel 400 N / mm²
0,75 mm
0,75 mm
Min. flange height (B)
Sheet thickness – 0.75
5 mm
5 mm
Working speed
4-7 m/min
4-7 m/min
Rated input power
500 W
500 W
Weight (electrical version: without cable, cordless version: with battery)
5,2 kg
5,2 kg
