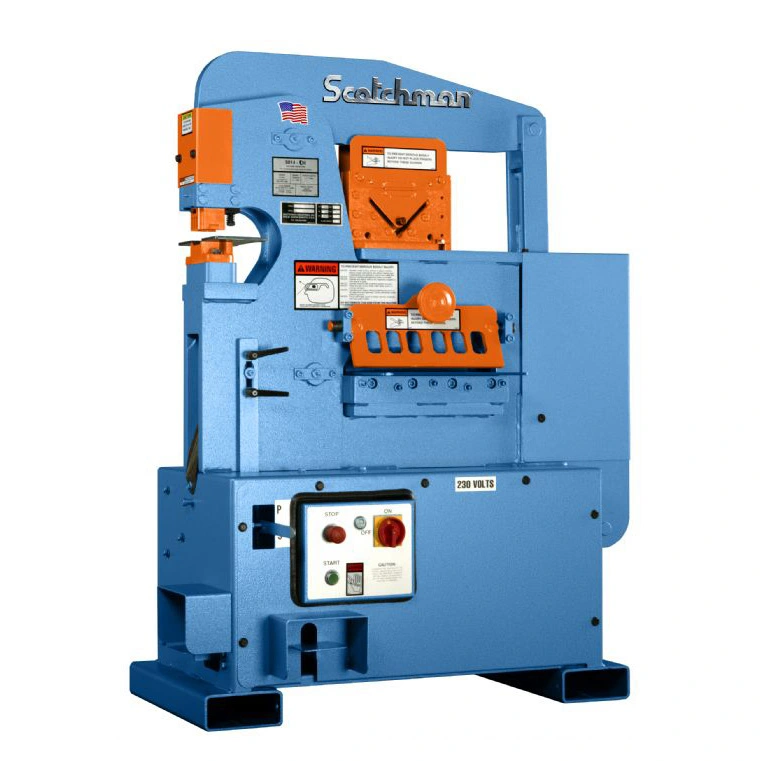

NEW SCOTCHMAN 5014

5014-CM Standard Features
50 Ton Punch Station (1-1/4″ in 1/2″)
Keyed Punch Ram for Safety
6″ Throat Depth
2″ Die Holder
Punch Nut with Wrench & Stripper
One Round Punch & Die: Max. Dia. 1″
Adjustable Stroke Control
Angle Shear Capacity 4″ x 4″ x 3/8″
and 2″ x 2″ x 3/8″ at 45 Degrees
14″ Flat Bar Shear with 4-Way Reversible
Blade (3/4″ x 4″, 1/2″ x 6″, 3/8″ x 8″
1/4″ x 12″, 3/16″ x 14″)
Tool Table Work Area
Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations
230/460 volt /3 Phase Electrics (must specify voltage)
All Guards Necessary to Comply with
ANSI B 11-5 Standards
Forklift Accommodations
One- year warranty
Made in USA
