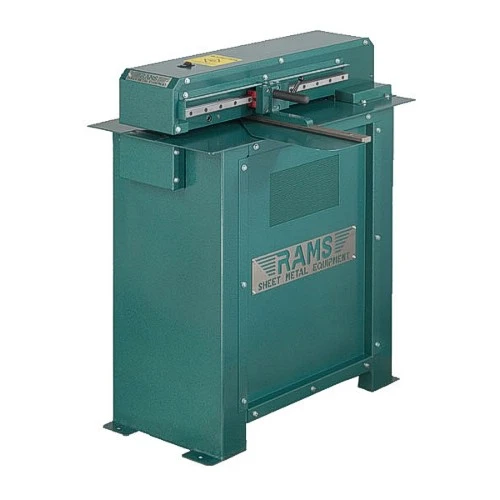

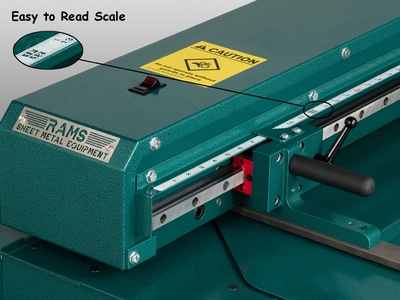

The highlight of these machines is the THK Bearing Slide Rail for effortless one hand adjustments. There is also an easy to read scale and an adjustable top cutter, eliminating the need for shims. The unit comes with a 1 HP electric motor, 110-115V single phase. The cabinet is heavy gauge steel with a Hammertone Green Finish. These machines will hold tolerances of +/- .015 over an 8 foot distance.
CAPACITY
16 GA. MAX. MILD STEEL
MIN. SLIT WIDTH
3/4″
MAX. SLIT WIDTH
24-3/8″
APPROX. SPEED
65 FPM
DIMENSIONS
36″ LONG x 28″ WIDE x 34″ HIGH (Cabinet Mount)
36″ LONG x 28″ WIDE x 6″ HIGH (Tabletop)
APPROX. WEIGHT
410 LBS (Cabinet Mount)
375 LBS (Tabletop)
