2012 HAAS ST-20 CNC Horizontal Lathe in used condition, featuring a 31.75" swing, 20.5" machining length, 8.3" 3-jaw chuck, 12-station turret, 2" bar capacity, 20 hp power, max 4,000 RPM, and 15" turning diameter. Tailstock & Bar feeder included. Features also include: 195/260 Volts, 3-Phase, Haas Controls, Slant Bed, Haas Servo Bar 300, Model BAR48A,
| Swing | 31.75" | 806.45 mm |
| Machining Length | 20.5" | 520.7 mm |
| Chuck Size | 8.3" | 210.82 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 15" | 381 mm |
| Tailstock | Yes | Yes |
| Dimensions | 127" x 77" x 78" (ST-20) 104" x 60" x 48" (Bar Feeder) | 127" x 77" x 78" (ST-20) 104" x 60" x 48" (Bar Feeder) |
| Weight | 10500 lbs. | 10500 lbs. |
HAAS ST-20 Specifications:
• Length.......... 127"
• Width.......... 77"
• Height.......... 78"
• Weight.......... 9000 lbs.
Bar Feeder:
• Length.......... 104"
• Width.......... 60"
• Height.......... 48"
• Weight.......... 1500 lbs.
Equipped With:
• LCC2: Belt type chip conveyor
• ATP: Automatic Tool Probe
• PC1: Parts catcher system
• PTS-1: Programable tailstock
• Bar Feeder: BAR2008ST
• Bar Feed:ST20
• 8.3" Chuck
• Bar Feed s/n 93660

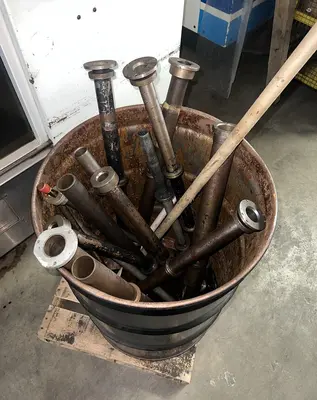

Included Bar Feed Draw Tubes:
Liner 1: Size - 1/2" - 13mm Liner 500 P/N: 59-0920 - OAL: 42.375
Liner 2: Size - 1.125" / 28mm Liner 1125 P/N: 59-0924 - OAL: 42.375
Liner 3: Size - 1.375" / 35mm Liner 1375 P/N: 59-0926 - OAL: 42.375
Liner 4: Size - .375" / 9mm Liner 375 P/N: 59-0919 - OAL: 42.375
Liner 5: Size - .625" / 16mm Liner 625 P/N: 59-1506 - OAL: 42.375
Liner 6: Size - .875" / 22mm Liner 875 P/N: 59-0922 - OAL: 42.375
Liner 7: Size - 1.3" / 33mm - OAL: 42.375
Liner 8: Size - 1.55" / 39.2mm Liner 500 - OAL: 42.375
Liner 9: Size - 1.05" / 26.6mm Liner 500 - OAL: 42.375
