USED YUASA 550-212

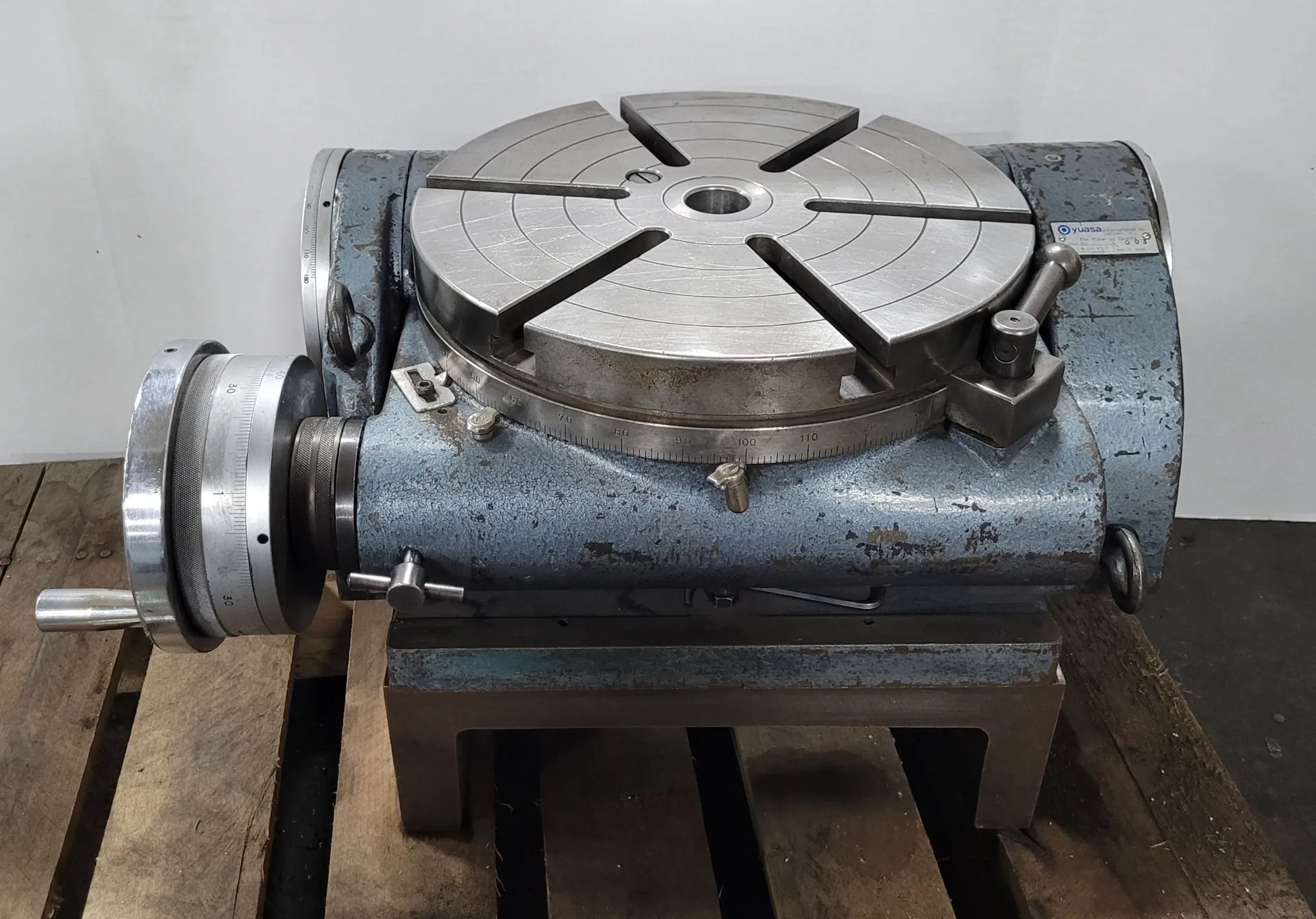

Yuasa 550‑212/003 Tilting Rotary Table - 12” Diameter

USED

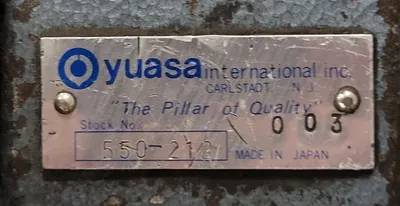

Brand: Yuasa
Model: 550-212
Lot Number: 003
Rotary Table
Table Diameter: 12”
T-Slotted
T-Slot Width: 0.55 inches (13.97 mm)
Gear Ratio: 90:1
Center Hole: 1-1/4" (measured)
Center Taper: 4MT (Morse Taper)
Vernier Reading: 10.00 seconds
Center Hole Concentricity: 0.01 mm
Squareness (Clamp to Center Slot): 0.0008"
Parallelism (Clamp Surface to Base): 0.0008"
Can be used Horizontally or Vertically
