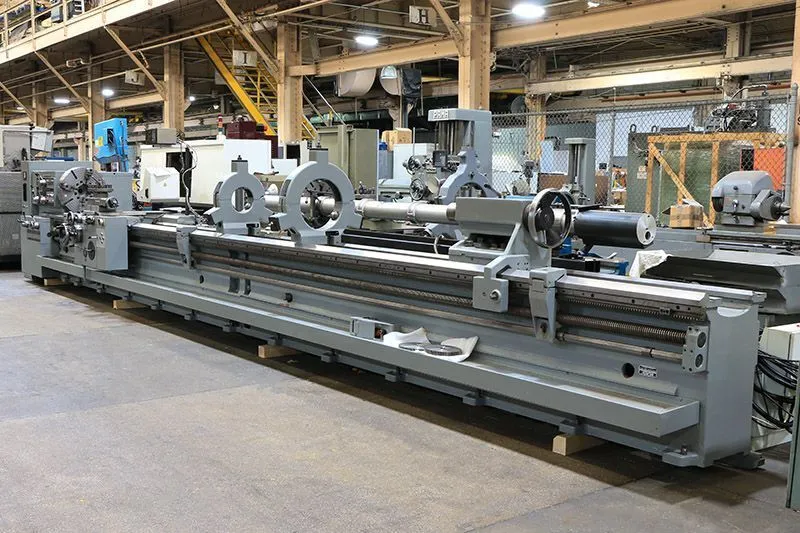

USED 1991 TOS SUS-63
Overview
1991 TOS SUS-63 Engine Lathe in excellent used condition. Features a 25.8" swing over bed, 320" center distance, 9-1120 RPM spindle speed, and equipped with inch & metric threading, digital readout, taper turning, and more. 25 HP main motor.
Specs
SWING OVER BED WAYS ......................... 25.8"
SWING OVER CROSS SLIDE ...................... 15.4"
DISTANCE BETWEEN CENTERS .................... 320"
HOLE THRU SPINDLE ........................... 3.3"
WIDTH OF BED ................................ 23"
SPINDLE SPEED RANGE (22) .................... 9 - 1120 RPM
LONGITUDINAL FEED RANGE .................... .002" - .12 IPR
LONGITUDINAL FEED W/SPINDLE COUNTER SHAFT .. .004" - .94 IPR
CROSS FEEDS ARE HALF OF LONGITUDINAL SETTING
INCH THREADING RANGE (48) .................. 1/4 - 56 TPI
METRIC THREADING RANGE (40) ................ .5 - 224 mm
TAILSTOCK SPINDLE TRAVEL ................... 11"
TAILSTOCK SPINDLE TAPER .................... 6 MT
APPROXIMATE WEIGHT ......................... 26,000 LBS
DIMENSIONS ................................. 390" x 74" x 60"
Equipped With
INCH & METRIC THREADING
SONY TWO AXIS DIGITAL READOUT
TAPER TURNING ATTACHMENT
RAPID TRAVERSE
23-1/2" 4-JAW CHUCK
4-WAY TURRET TOOLPOST
15" ROLLER TYPE STEADY REST
8-1/2" ROLLER TYPE STEADY REST
COOLANT SYSTEM
HARDENED & GROUND BED WAYS
25 HORSE POWER MAIN MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
