USED 2004 THERMWOOD C67S

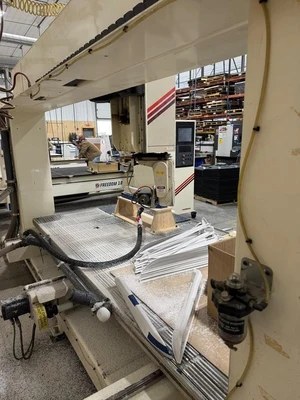

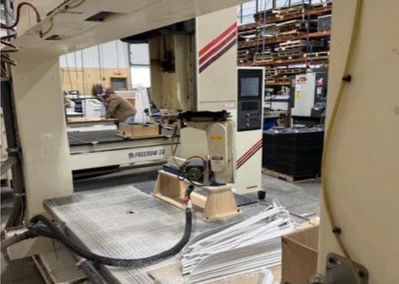

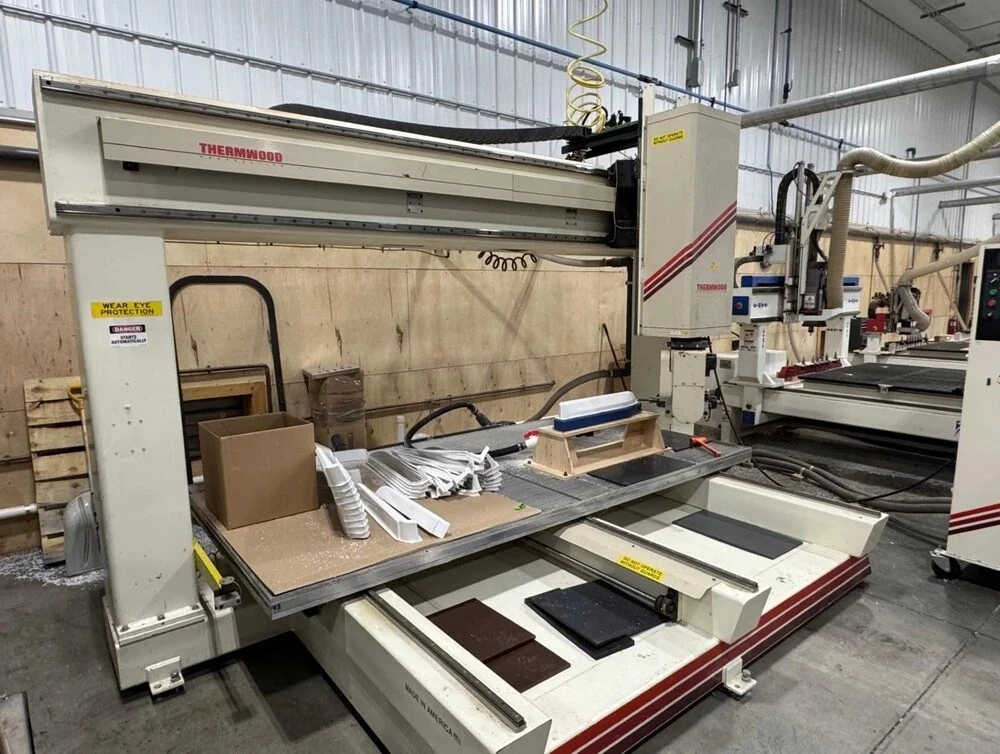

Thermwood "C67S" CNC Router - 5-Axis

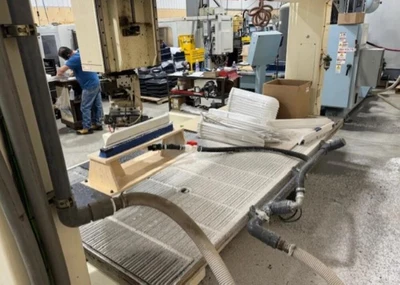

5' Wide x 10' deep moving table; aluminum tables with 1" thick tool and jig plate.

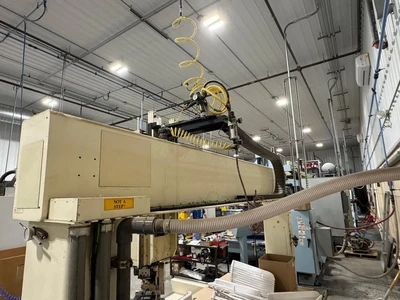

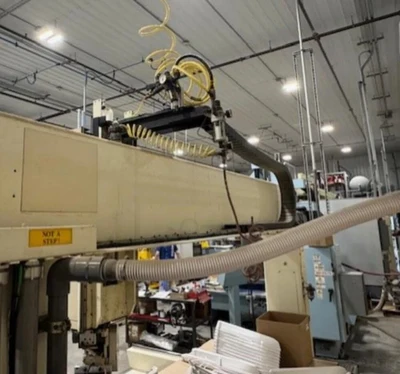

Head Travel & Rotation: X-Axis (table travel) is 120", Y-axis (head on gantry travel) is 60", Z-axis is 36"

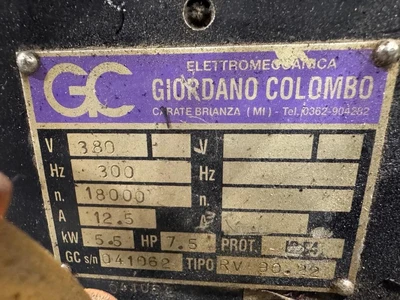

(1) 7.5 HP, ISO 30 Spindle, (3,000 - 18,000 RPM) with solid-state inverter

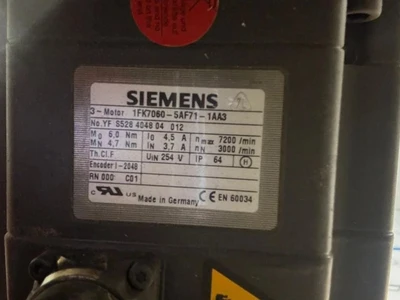

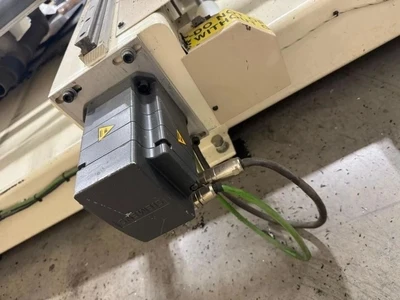

Lead Screw: With compensation for correcting pitch tolerance, zero-backlash ball nuts, high performance AC Servo drive system with feed speed up to 1,500 IPM; automatic lubrication system.

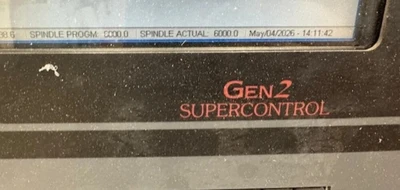

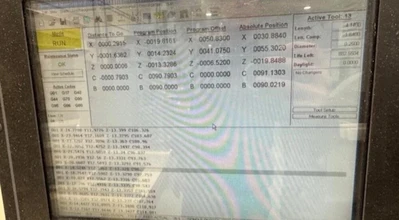

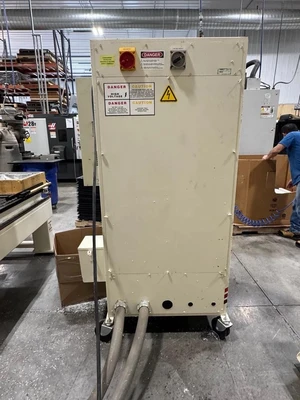

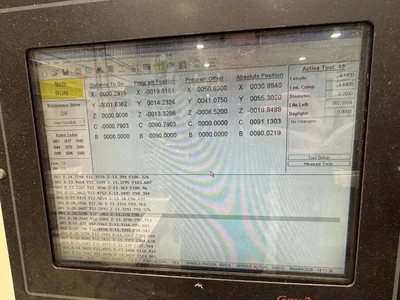

THERMWOOD "91000 Super Control" controller, programmable spindle speed option, compatible with major CAD/CAM and offline CNC programming systems; Automatic tool length sensor; Stand-alone, refrigerated control cabinet.

Phase: 3 PHASE
Voltage: 460 VOLT
Estimated Dimensions: 13′ L x 6′ W x 9.5′ H
Seller Comment: A rigger is required. Buyer's Responsibility for Break-down, loading and removal. By appointment ONLY!
Lot Notes: Andy Baker @ Baker Rigging, [email protected], (480) 939-4233
Onsite Contact: Thomas Aronson, [email protected], 941-699-8717
Load Out Period: Within (2) weeks after purchase date
