USED MENNEKES ME 420P7W
Overview
Description

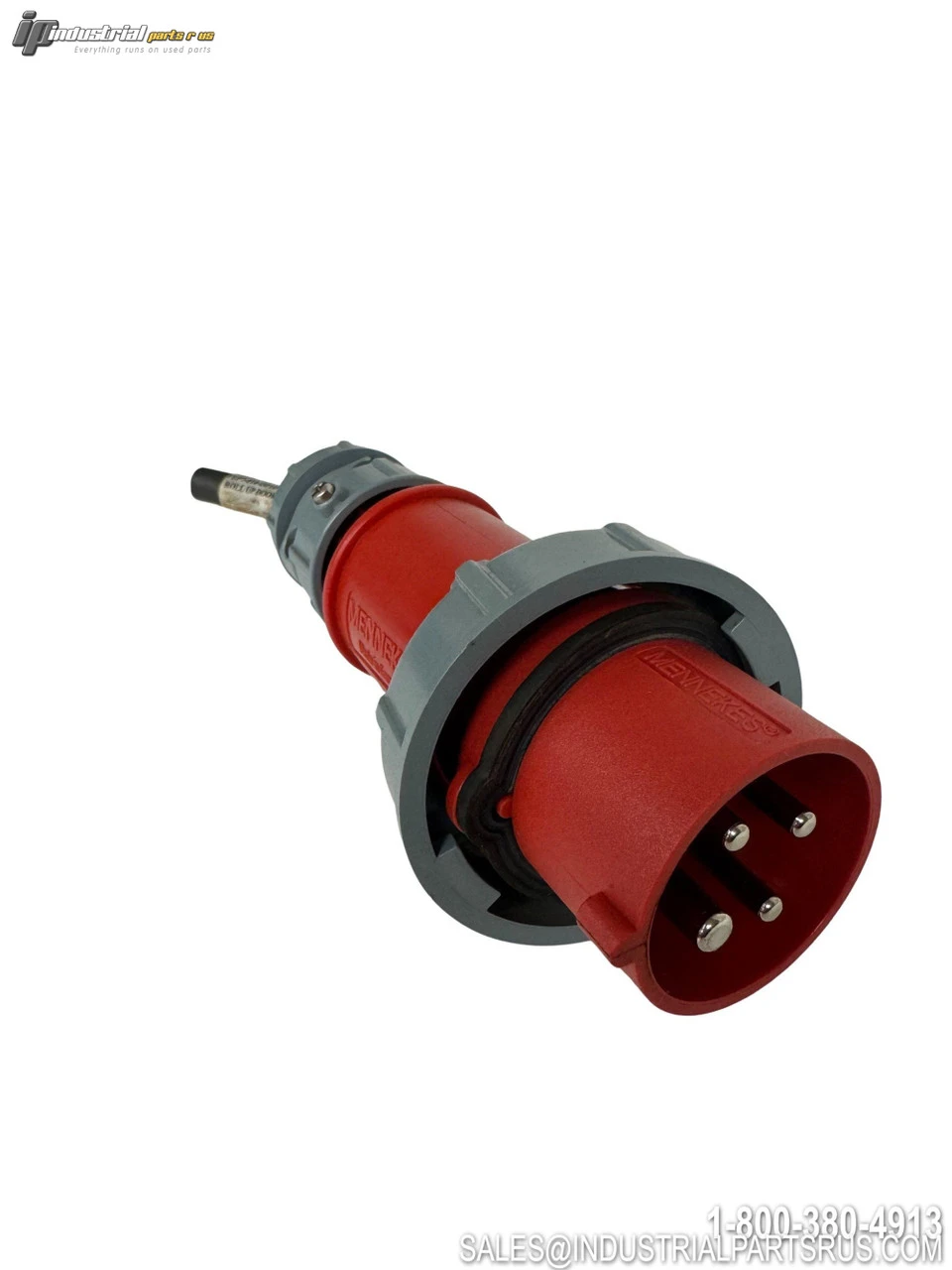

The Mennekes ME420P7W is a professional-grade pin and sleeve watertight plug designed for industrial electrical connections. This in-line plug features a non-metallic, impact and chemical resistant housing with watertight protection rated to IEC IP 67 standards. The device is part of Mennekes' 309 Series and is fully compatible with other IEC 60309-2 brands.
Specification
Value
Brand
Mennekes
Model/Part Number
ME420P7W
Series
309
Type
Pin and Sleeve Watertight Plug
Current Rating
20A
Voltage
480VAC
Number of Poles
3
Number of Wires
4
Wire Size
12-14 AWG
Terminal Type
Screw Terminal
Color
Red
Ground Position
7h Clock Position
Enclosure Type
NEMA 4X
IP Rating
IP 67
Housing Material
Non-metallic
Construction
Watertight
Phase
3 Phase
Standard HP Rating
5
Compatibility
420C7W Connector, 420R7W Receptacle
Standards
UL 1682, UL 1686, CSA C22.2 No. 182.1, IEC 60309-1, IEC 60309-2
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: AI1644
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Mennekes
Enclosure Type: NEMA 4X
Part Number: ME 420P7W
Shelf: K-66
Model: ME 420P7W
MPN: ME 420P7W
Type: Pin and Sleeve Watertight Plug
