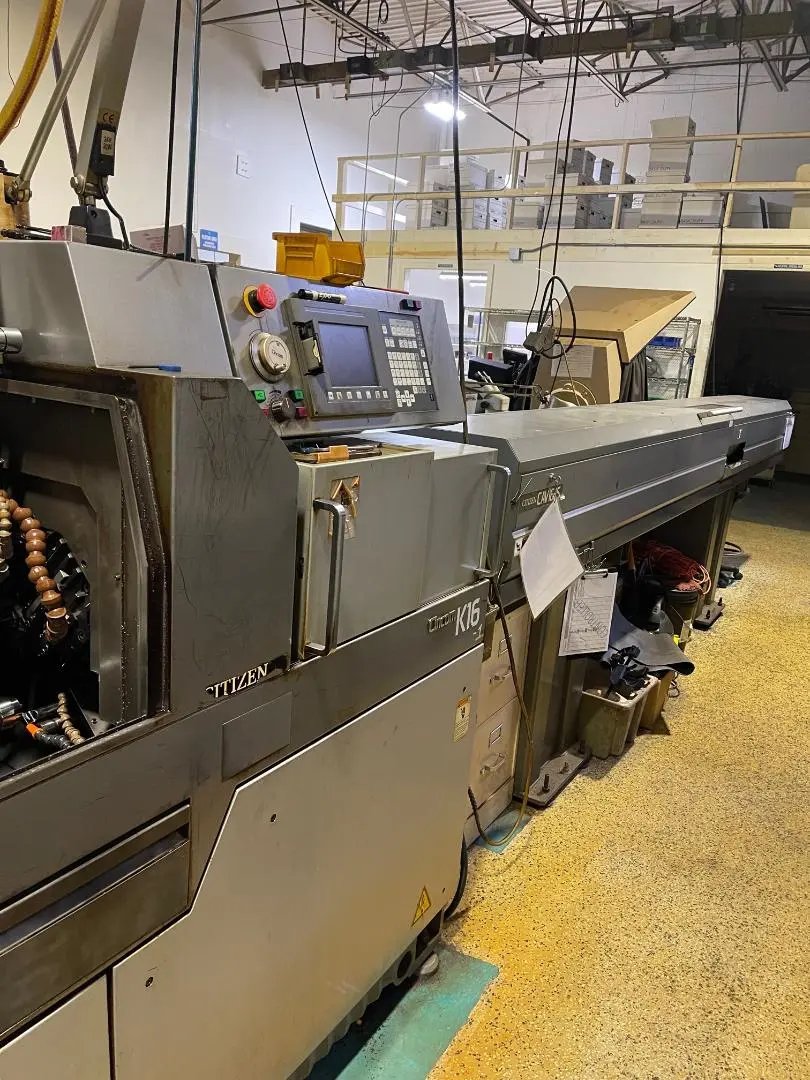

Citizen K16VIIP (1F7P) CNC Swiss Lathe, New in 2007
5/8" cap high-speed machine cap, with 15000 RPM, full C-axis, Live tooling and CAV Bar Loader
TWO AVAILABLE
| Capacity | 0.63" | 16.002 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| Control | CNC (CNC (Fanuc 31i Control)) | CNC (CNC (Fanuc 31i Control)) |
| Dimensions | 72” x 45” x 82” | 72” x 45” x 82” |
| Weight | 4,700 lbs | 4,700 lbs |
General Specifications:
CNC Control: Citizen (Fanuc)
Maximum Machining Diameter: 16mm (5/8")
Maximum Machining Length: 200mm
Main Spindle Speeds: 200 - 15,000 RPM
Main Spindle Indexing: C-Axis
Back Spindle Speeds: 200 - 10,000 RPM
Sub-Spindle Indexing: C-Axis
Rotary Tool Speeds: 200 - 6,000 RPM
Back Spindle Max Chucking Diameter: 20mm
Turning Tools: 5
Rotary (Live) Tools: 4
Front Endworking Tools: 3
Back Endworking Tools: 3
Rapid Traverse (X/Y/Z): 20 m/min
Main Spindle Drive: 3.7 KW
Back Spindle Drive: .15 KW
Rotary Tool Drive: .75 KW
Electrics: 220 Volt 3 Phase
Shipping dimensions:
Machine: 72” x 45” x 82” 4,700 lbs
Chip Pan: 40” x 38” x 25” 500 lbs
CAV 16-IS barfeed: 18’ x 2.5’ x 6’ 2,500 lbs
Fanuc 31i CNC Control
Citizen CAV16-IS 12' Magazine Bar Feed
Cool Blast Mist Collector 850
Parts Conveyor
4 live Tools
Misc Collets and Bushings
Machine will be packed for shipping prior to release
