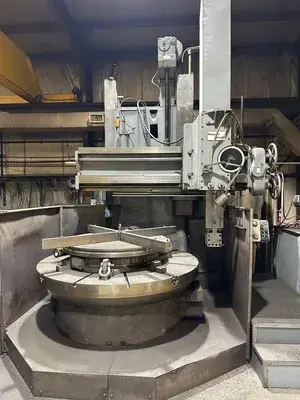

WEBSTER & BENNETT Model 72 Vertical Boring Mill
The Webster & Bennett 72" Vertical Borer (Vertical Turret Lathe) is an exceptionally robust, heavy-duty British machine tool. It is widely used for machining medium-to-large industrial castings and forgings. It features a massive 72-inch chuck and high metal-removal capabilities.
| Table Dia | 71.65" | 1,819.9 mm |
| Swing | 83.86" | 2,130 mm |
| Work Ht-U/R | 47.64" | 1,210.1 mm |
| Power | 40.2 hp | 30 kW |
| RPM | 83 RPM | 83 RPM |
| Dimensions | 128" x 180" x 160" | 128" x 180" x 160" |
| Weight | 35,000 lbs | 35,000 lbs |
WEBSTER & BENNETT Model 72 Vertical Boring Mill
Chuck Size................................72"
Max. Swing................................84"
Max. Height Under Cross Rail..............84"
Min. Height Under Cross Rail..............24"
Vertical Travel of Cross Rail.............28"
Max Height Under Turret Face..............59"
Vertical Travel of Slide..................38"
Distance of Turret Travel.................51.5"
Spindle Speed.............................83 RPM
Spindle Motor.............................40 HP
Rapid Traverse Motor......................5 HP
Rail Elevation Motor......................4 HP
Dimensions................................128" x 180" x 160"
Weight....................................35,000 lbs
