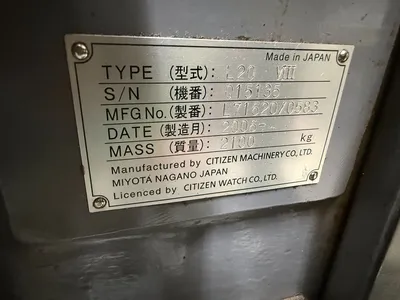

USED 2006 CITIZEN L20-VIII

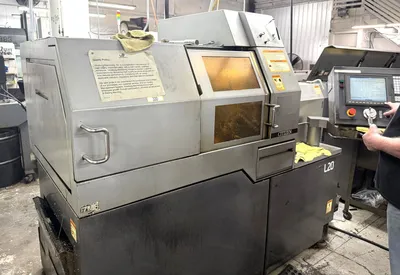

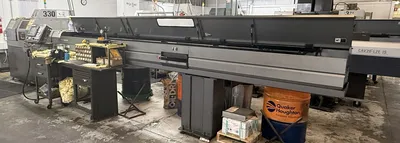

CITIZEN L20-VIII CNC SWISS TYPE TURNING CENTER, Cav Magazine Bar feeder,
Cool baster high pressure coolant, mist collector, In operation New 2006

Max. Machining diameter 20mm (.79")
Max. Machining length 200mm (7.87")
Max. Front drilling diameter 10mm (.39")
Max. Front tapping size (with tap & die) M8
Spindle through-hole diameter 24mm (.94")
Main spindle speed 10,000 RPM
Max. Drilling dia. in the rotary gang tool mach process 8mm (.32")
Max. Tapping dia. in the rotary gang tool mach process M6
Rotary spindle speed 4,500 RPM
Max. Chuck dia. of the back spindle 20mm (.79")
Max. Workpiece length for th efornt side collect from-
the back spindle 80mm (3.15")
Max. Drilling dia. in the back machining process 8mm (.32")
Max. Tapping dia. in the back machining process M6
Back spindle speed 8,000 RPM
Number of tools to be mounted 18-21
Turning tools on the gang tool post 5
Rotary tools on the gang tool post 7
Rotary tools for front spindle 2 (option)
Tools for front spindle 3
Tool Size
Gang tool post (tool) 1/2 (TO1 5/8")
Sleeve 19.05mm (.75")
Rapid feed rate
All axes 32 m/min
Motor
Main Spindle drive 2.2/3.7 Kw
Tool Spindle drive 1.0 Kw
Back Spindle drive 0.75/1.5 Kw
Cutting oil 0.4 Kw
Center height
Imput power capacity 1,050mm (41.34")
Air pressure and air flow rate for air-driven equip. 0.5 Mpa * 50NI/Mi
n
Weight (approx.) 2,100 Kg
Cont. on

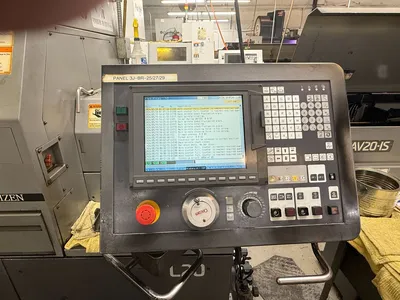

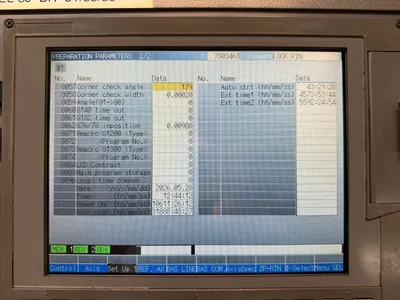

Cincom Mitsubishi CNC Controls Options
1. Synchronized Rotary Guide Bushing
2. Synchronized Bar Loader
3. Program Work area Size 80mm, Memory 160mm
4. Custom Macros
5. Tool Spindle Synchronized Tapping Function
6. Canned Drill Cycle Main Axis & C-Axis
7. Sub Spindle Constant Surface Feed
8. Sub Spindle Chasing Function
9. Spindle Syncronized Function

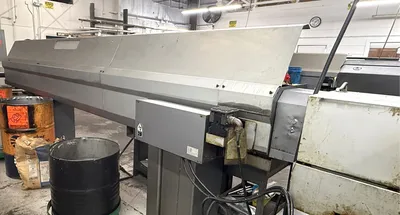

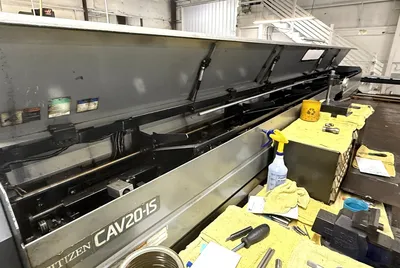

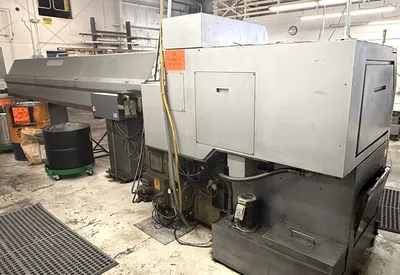

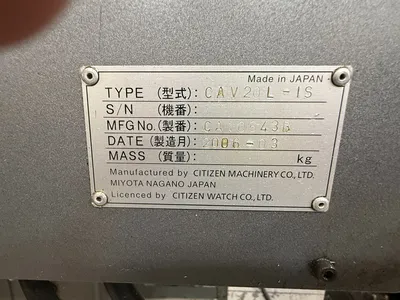

CAV-20L-IL Magazine bar feed
Main spindle chucking device
Rotary guide bushing drive device
Rotary guide bushing device
Coolant device (with level sensor)
Door switch/Door lock
Workpiece separator
Lubrication device (w/level sensor)

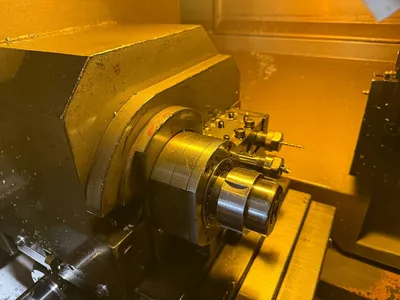

back spindle chucking device

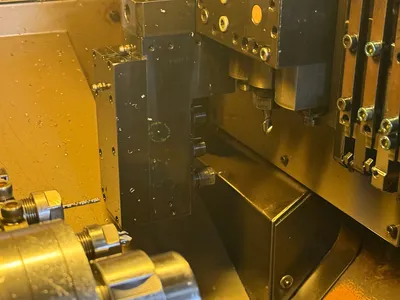

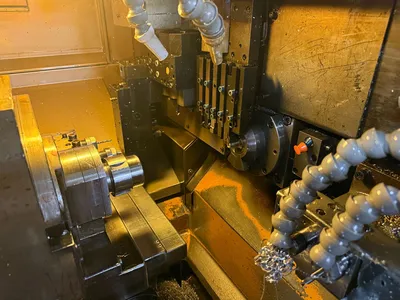

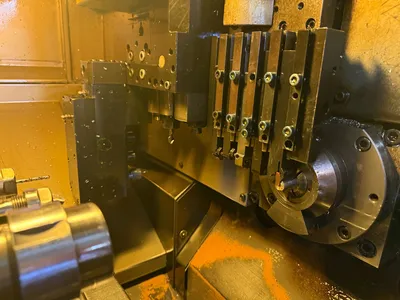

Rotary Tool Spindle unit for gang tool
Chip Conveyor
(3) Live vertical spindles
Cool blaster 850 Mist collector
