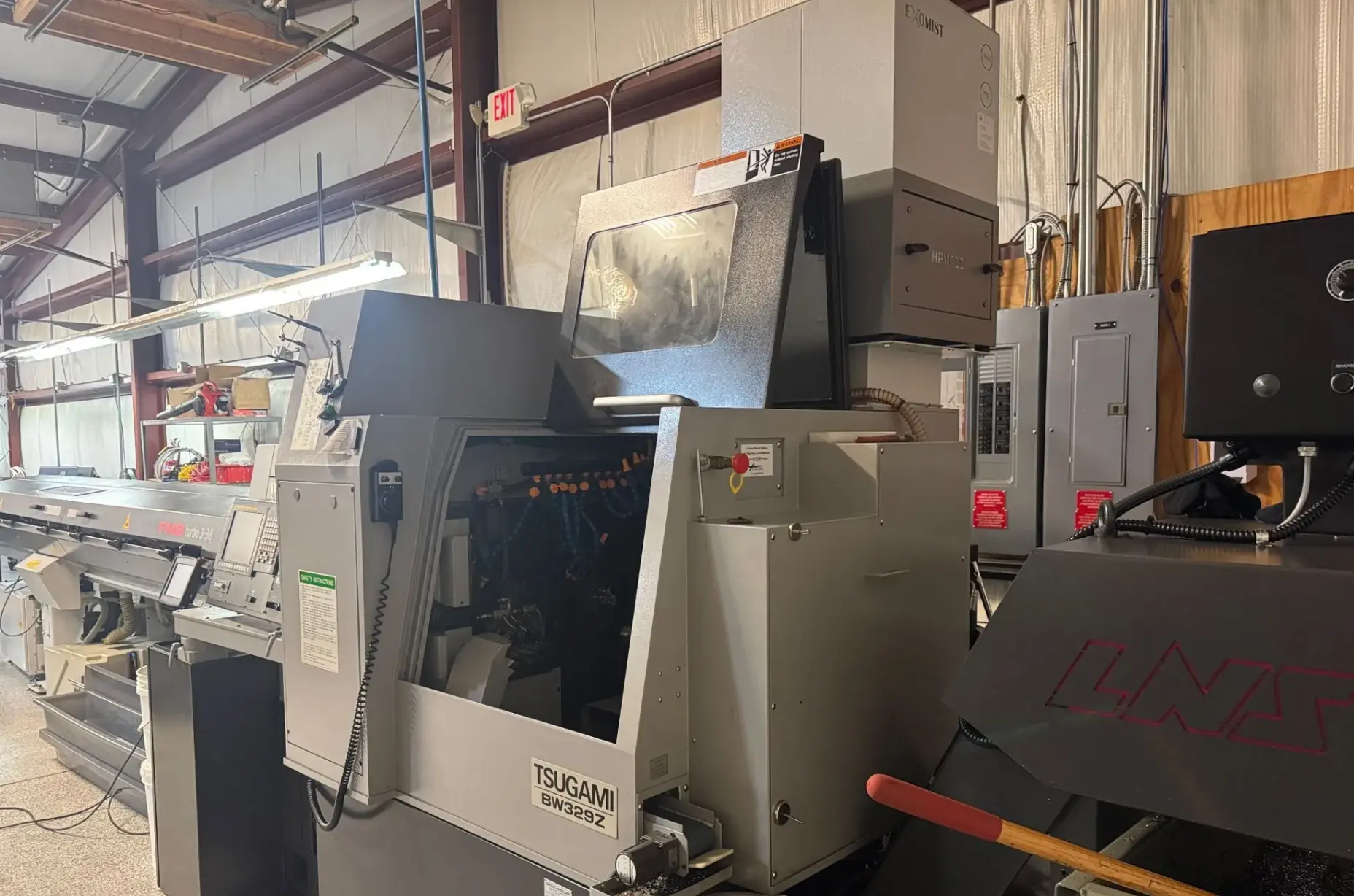

USED 2022 TSUGAMI BW329Z

2022 Tsugami BW329Z Swiss Type Automatic Screw Machine, used with 1.25" capacity, CNC FANUC 31I-B control, and 11 axes. Features include FMB Turbo 338 Barfeeder, FireTrace system, and TriMist 850 mist collector. Equipped with high-pressure coolant system.

Capacity 1.25"
Power 7.5 kW
RPM 8,000 RPM
# Axis 11
Swiss, Chucker or Convertible? Convertible
Main Spindle Indexing Full C
Sub Spindle Indexing Full C
Live Back Working Tools? Yes
Control CNC (CNC FANUC 31I-B)
Dimensions 104.5″ x 64.5″ x 79″
Weight 11,460 lbs
Maximum Bar Stock: 32mm / 1.26″
Max Headstock Stroke w/ Guide Bushing: 330mm / 12.99″
Max Headstock Stroke w/o Guide Bushing: 70mm / 2.76″
Number Tool Positions (std/max): 29 / 38
Number Live Tool Positions (std/max): 11 / 26
Main Spindle Speed: 200 – 8,000 RPM
Sub Spindle Speed: 200 – 8,000 RPM
Main Spindle Motor: 3.7 / 5.5 kW
Approx. Weight: 11,460 lbs. / 5,200 kg
Approx. Dimensions: 104.5″ x 64.5″ x 79″ W/out barfeed

FMB Turbo 338 Barfeeder, Full 12' with axial shift
FireTrace Fire Suppression System
Plumbed for 8 Port High Pressure Coolant System
Oscillation Cutting )X1/Z1, X2/Z2/X3/Z3)
Two Sets of Collets and Guide Bushings
V2-HO8 High Pressure 2,000 PSI Oil Pump
TriMist 850 Mist Collection System
LNS Turbo Micro Hinge Chip Conveyor, 500 Micron
Red/Yellow/Green Patrol Light System
Chuckit Kit
TOOLING AS PER PHOTOS
