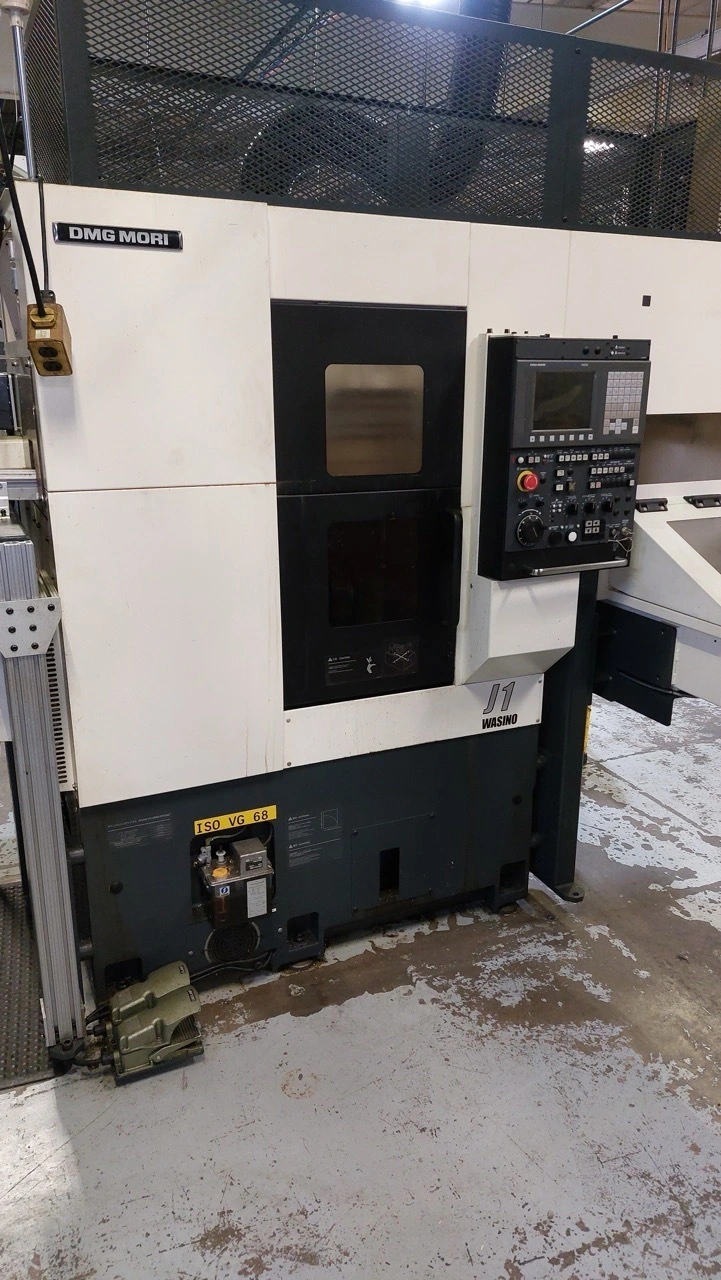

USED 2016 DMG MORI Wasino J-1
Overview
Description
Used multi-axis CNC lathe. Features a 5" chuck, 6,000 RPM spindle, and Fanuc 0i-TD controller. Compact dimensions: 50"x49"x64", 220V, 3-phase.
Specifications
| Chuck Size | 5" | 127 mm |
|---|---|---|
| Bar Capacity | 1.5" | 38.1 mm |
| Power | 7.5 hp | 5.6 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 50″ x 49″ x 64″ | 50″ x 49″ x 64″ |
| Weight | 4,409lbs | 4,409lbs |
Chuck Size: 5″
Bar Capacity: 1.5″
Max. Workpiece Diameter: 3.9″
Max. Workpiece Length: 3.9″
Max. Bar Diameter: 1.8″
Max. X-Axis Travel: 5.8″
Max. Z-Axis Travel: 6.7″
Spindle Speed: 6,000 RPM
Spindle Motor: 7.5 HP
Turret Positions: 8
Approximate Machine Dimensions: 50″ x 49″ x 64″
Approximate Machine Weight: 4,409lbs
Electrical: 220V, 3-Phase
Equipped With
Fanuc Series 0i-TD Controller
