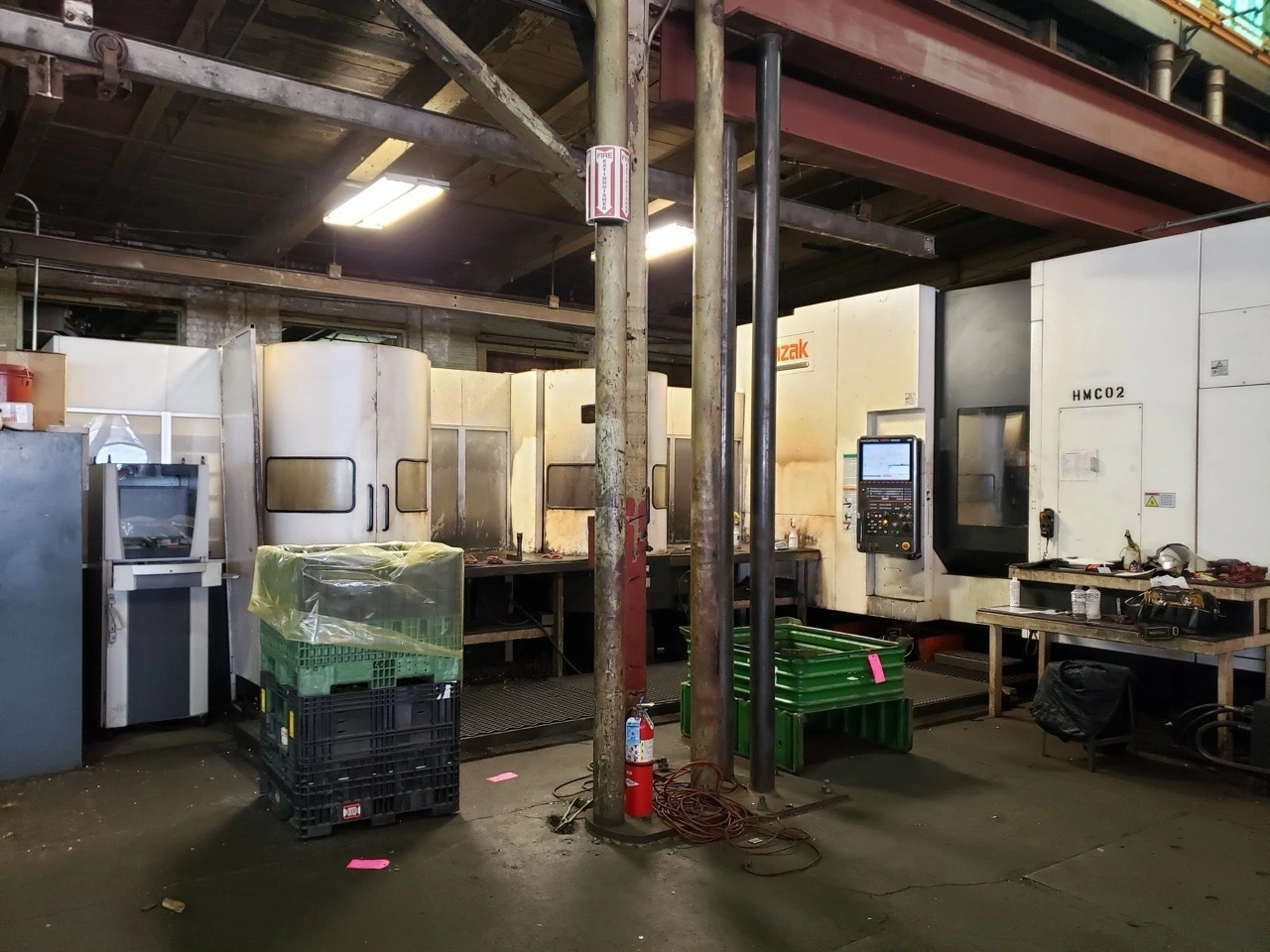

Used Horizontal Machining Center, equipped with Mazatrol Matrix Nexus Control, 120 Tool Magazine, and high-torque spindle. Features include Renishaw Probe, 360,000 Position NC Rotary Table, and high-pressure coolant system.
| X | 41.3" | 1,049 mm |
| Y | 35.4" | 899.16 mm |
| Z | 38.5" | 977.9 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 120 | 120 |
| Taper | 50.0 | 50.0 |
| Pallet-W | 24.8" | 629.92 mm |
| Pallet-L | 24" | 609.6 mm |
| # Axis | 4 | 4 |
| Control | CNC (Mazatrol Matrix Nexus) | CNC (Mazatrol Matrix Nexus) |
| Weight | 47,500 LBS | 47,500 LBS |
Mazatrol Matrix Nexus Control
Hi torque spindle – 1218NM/8000 RPM AC50HP
120 Tool Chain Magazine
Workpiece Air Blast
Renishaw (OMP60M) Probe System
360,000 Position NC Rotary Table
Auto-peck with load detection
Dynamic Compensation 2
Chip Conveyor (CONSEP 2000 Dual Belt Rear Discharge)
Mayfran Variable Speed inverter
Mazak Super Flow T8 High Pressure Coolant – 1000 PSI/8GPM
TSC Pressure switch
HCN6800 Palletech Manufacturing Cell/PCN 6800 (8 pallet stations)
B: AAD. 2 Operator Load Stations/Scheduling System
