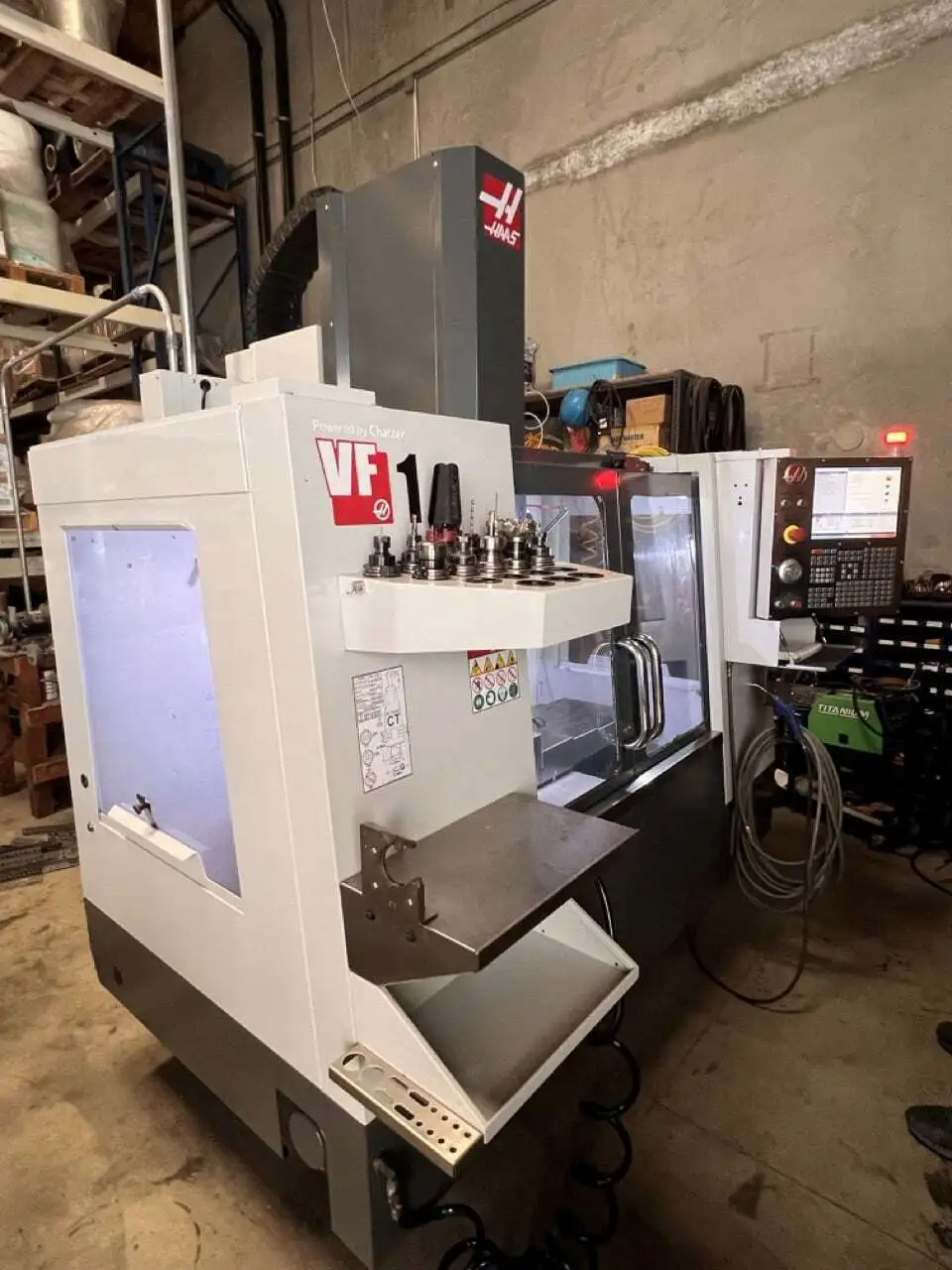

Used Vertical Machining Center features Haas CNC control, Renishaw probe, and more. Comes equipped with a 5th axis vice, CAT 40 taper, and powerful 30 hp spindle. Offers a 20" × 16" × 20" travel with 8,100 RPM.
| X | 20" | 508 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 8,100 RPM | 8,100 RPM |
| # ATC | 20 | 20 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 26" | 660.4 mm |
| # Axis | 3 | 3 |
| Control | CNC (HAAS) | CNC (HAAS) |
Table Size (L × W): 26.00″ × 14.00″
Max Table Load: 3,000 lbs
Spindle Nose to Table (max): 24.0″
Spindle Nose to Table (min): 4.0″
Feedrates & Motion
Max Cutting Feedrate: 650 ipm
Rapid Traverse (X/Y/Z): 1,000 ipm
Max Tool Diameter: 3.5″
Max Tool Weight: 12 lbs
Tool-to-Tool Time: ~4.2 sec
Chip-to-Chip Time: ~4.5 sec
Haas CNC Control
Renishaw Probe
5th Axis Double Station Vice
Rigid Tapping
Ethernet
Air Gun
