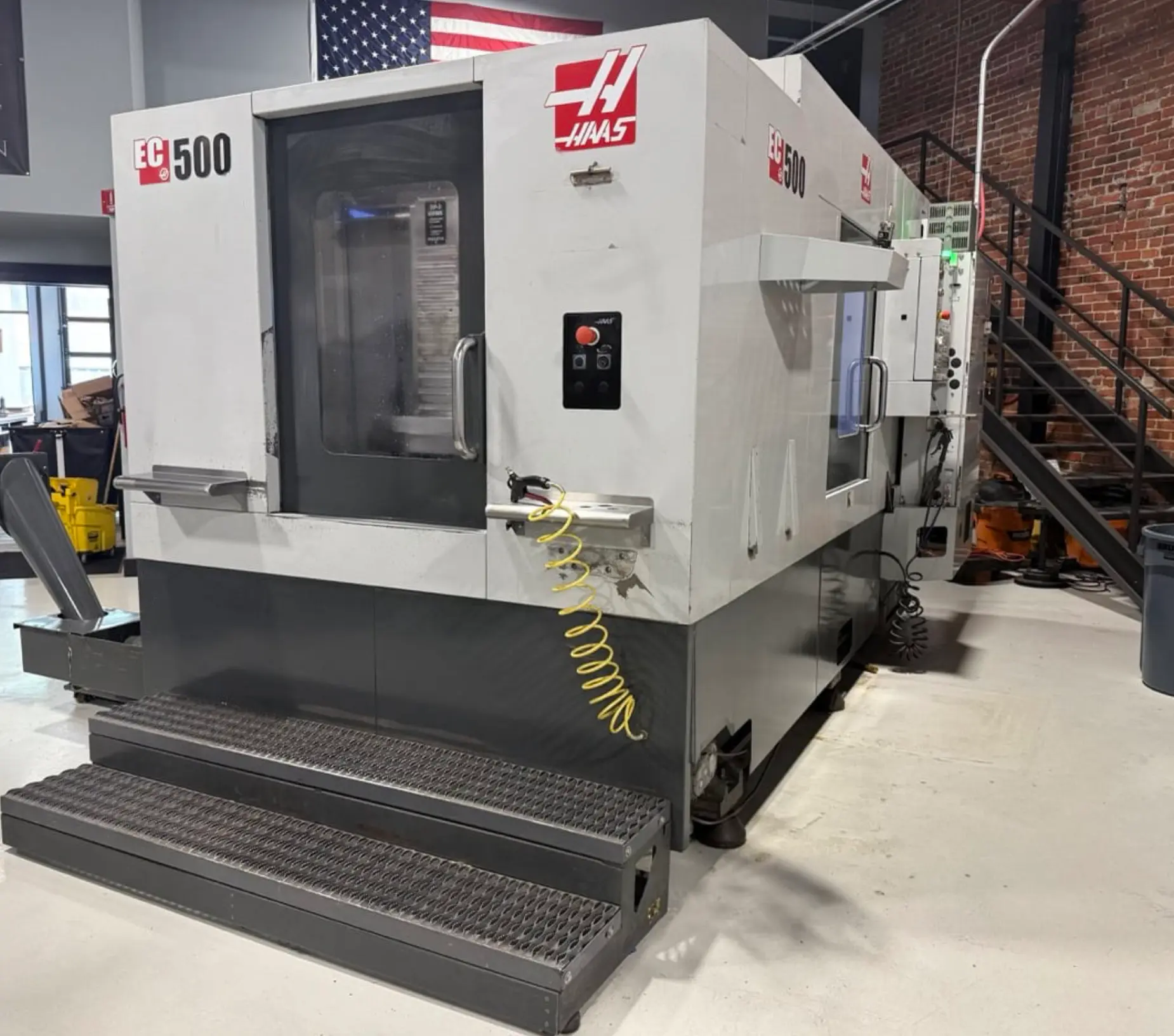

Used Horizontal Machining Center. Features 32"x20"x28" XYZ travel, 30 hp, 12,000 RPM, CAT 40 taper, and 4-axis. Equipped with Haas CNC, 1000 PSI thru spindle coolant.
| X | 32" | 812.8 mm |
| Y | 20" | 508 mm |
| Z | 28" | 711.2 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 41 | 41 |
| Taper | CAT 40 | CAT 40 |
| Pallet-W | 19.69" | 500.13 mm |
| Pallet-L | 19.69" | 500.13 mm |
| # Axis | 4 | 4 |
| Control | CNC (HAAS) | CNC (HAAS) |
Toolchanger Positions: 40+1 ATC
Pallet Indexing: 1 deg 4th Axis
Number of Pallets: 2
Maximum Workpiece Weight: 1,000 LBS.
Haas CNC Control
Thru Spindle Coolant (1000 PSI)
Chip Auger
Advance Tool Management
Rigid Tapping
Quick Codes
Macros
WIPS Renishaw Probe
Vector Drive, Inline Direct Drive
Coolant Shower
1MB Memory
Memory Keylock Switch
15” LCD Monitor
