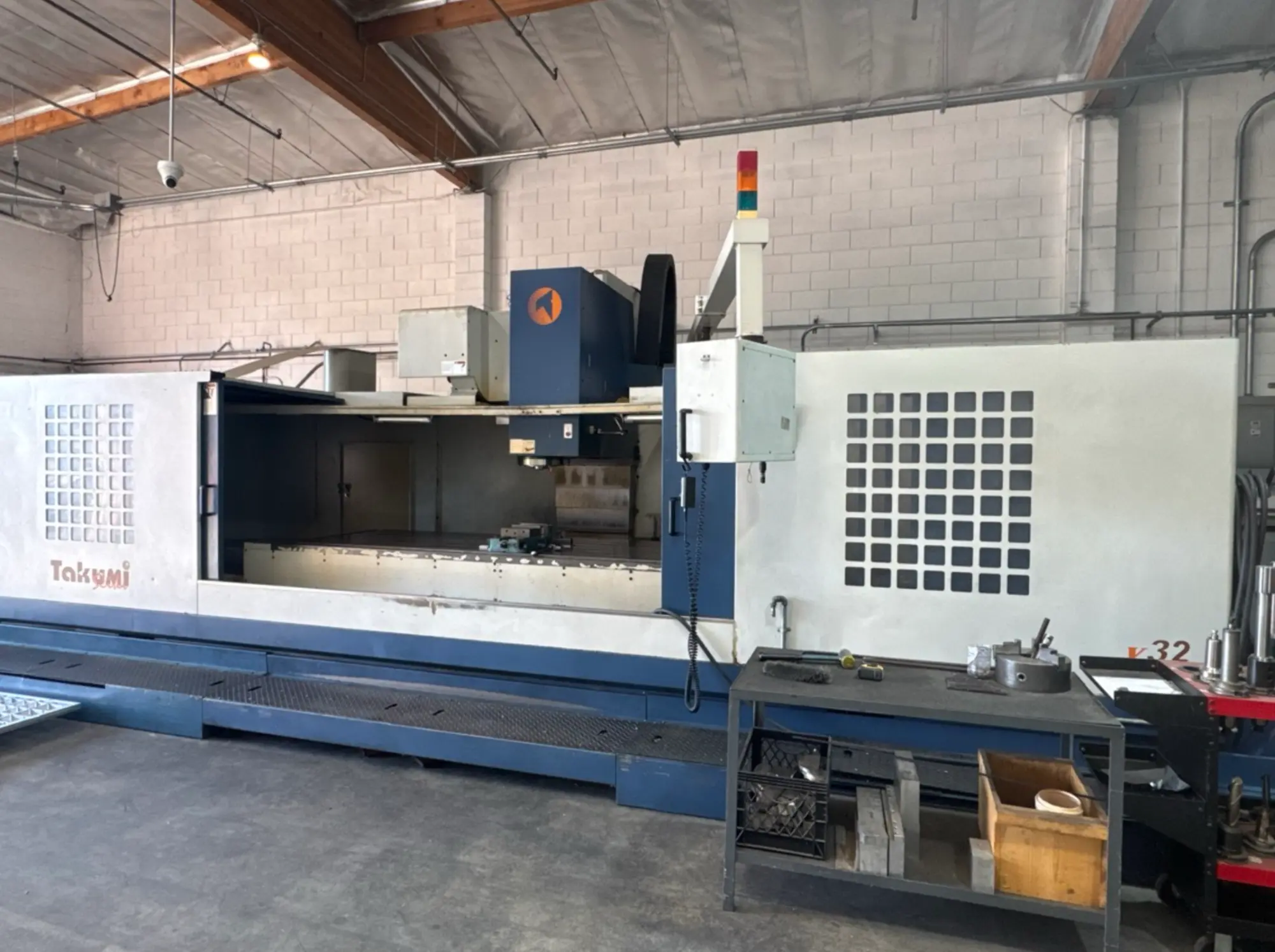

Vertical Machining Center in used condition. Features include 126"x40" table, 35 hp power, 6,000 RPM spindle, CAT 50 taper, 32 tool ATC, and Fanuc 0i-MC control. Includes 4th axis rotary, gear-driven spindle, and chip conveyor.
| X | 126" | 3,200.4 mm |
| Y | 40" | 1,016 mm |
| Z | 30" | 762 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 32 | 32 |
| Taper | CAT 50 | CAT 50 |
| Table-W | 40.35" | 1,024.9 mm |
| Table-L | 126" | 3,200.4 mm |
| # Axis | 4 | 4 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 295″ x 173″ x 140 | 295″ x 173″ x 140 |
| Weight | 52,500 lbs | 52,500 lbs |
Table Size: 126″ x 40″
Max Table Load: 9,920 lbs
Fanuc 0i-MC Control
4th Axis Rotary Table – 25″ DIA
Boxed Ways
6K Gear Driven Spindle
Thru Spindle Coolant
Chip Conveyor
All Available Manuals
