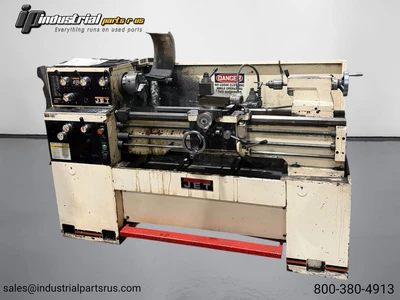

USED JET GH-1440W-3

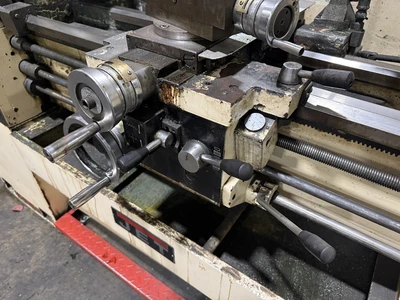

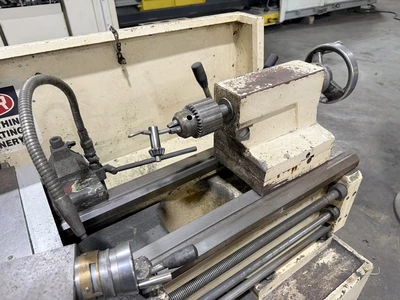

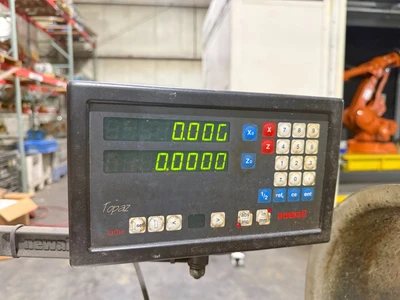

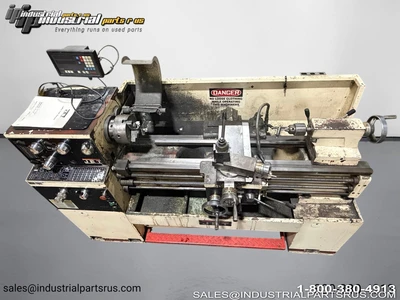

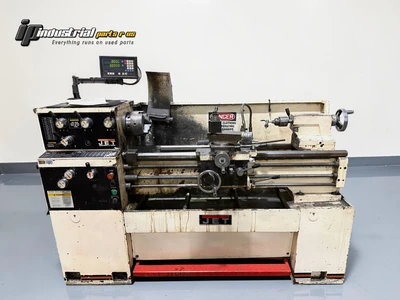

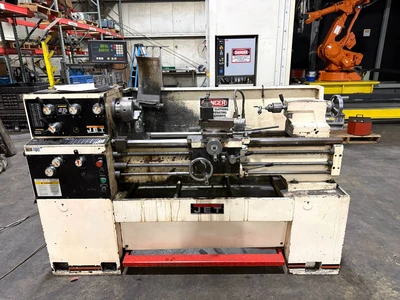

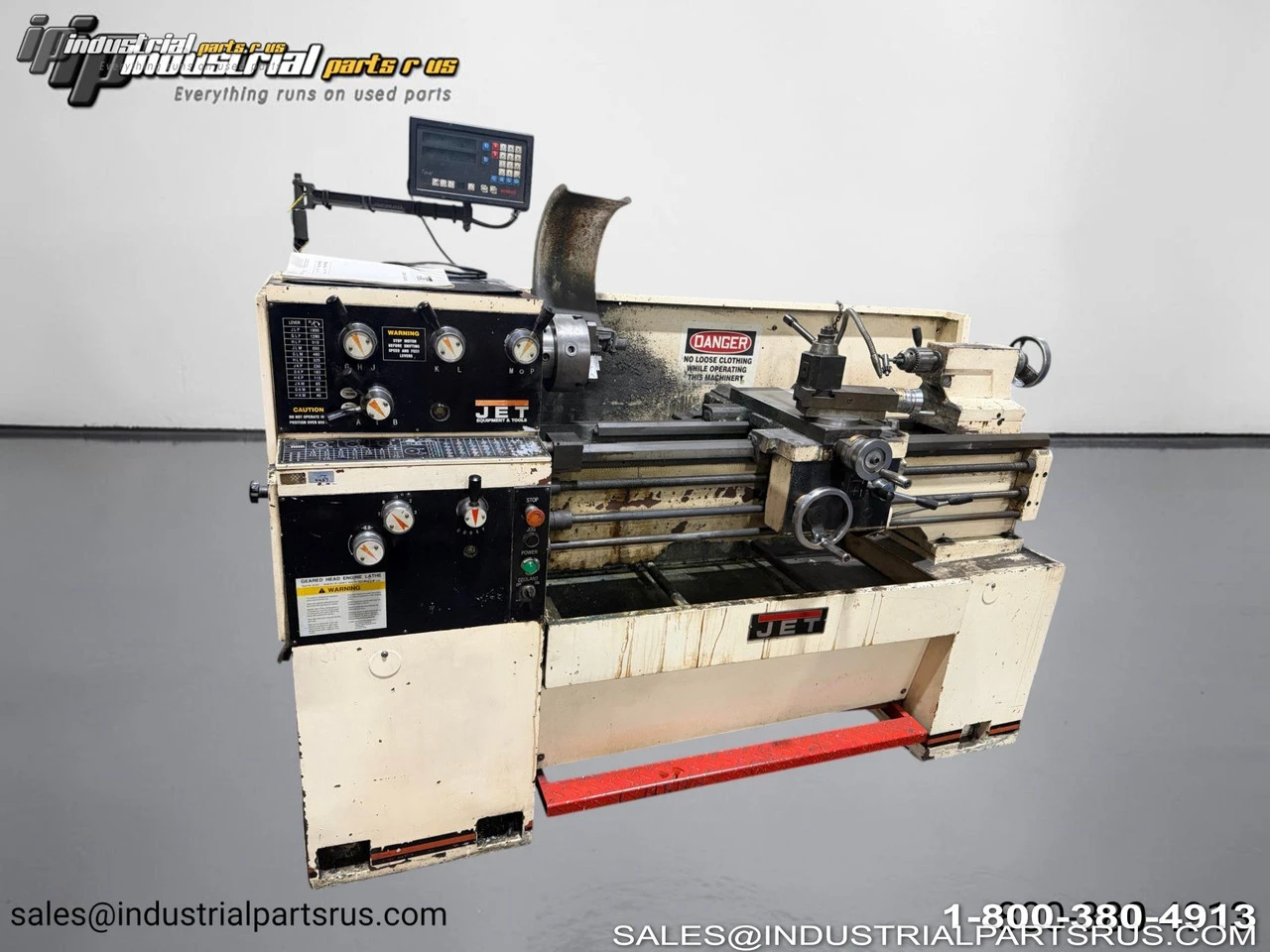

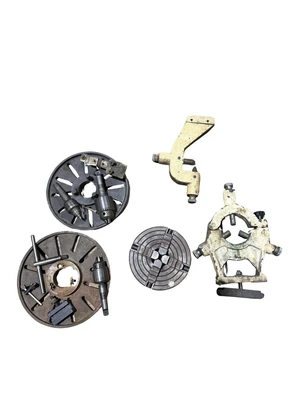

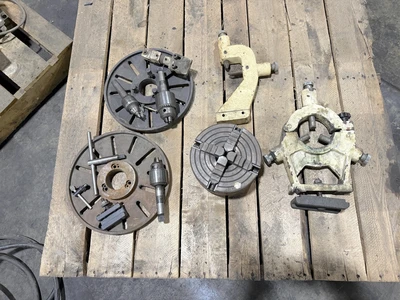

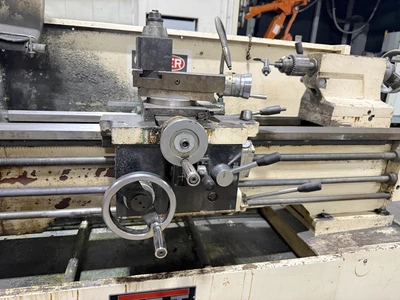

JET GH-1440W-3 geared head 14x40 Engine Lathe with Brake and Newall Topaz 2 Axis DRO. This Lathe has been powered and tested. The spindle sounds good, and everything works as normal. The cross-slide has roughly 3/4 of a turn wear in the handle, but the jibs feel tight. With the Digital Readout it is still fully capable of holding tight tolerances. Comes with a Steady and Follow Rest, D1-4 6" Self Centering 3 Jaw Chuck, 8" Independent 4 Jaw Chuck, Aloris Style Quick Change Tool Changer, Live Center, (2) Drill Chucks, and (2) 12" Face Plates. Very nice lathe for the home shop or small business!! We will palletize and load this equipment at no additional charge.
Specification
Value
Brand
JET
Model/Part Number
GH-1440W-3
Stock Number
321840
Swing Over Bed
14 inches
Swing Over Cross Slide
8-1/4 inches
Swing Through Gap
20 inches
Distance Between Centers
40 inches
Spindle Bore
1-1/2 inches
Spindle Nose
D1-4
Number of Spindle Speeds
12
Spindle Speed Range
40-1,800 RPM
Motor Power
3 HP (2.2 kW)
Motor Type
TEFC Induction
Voltage
230/460V (prewired 230V)
Phase
3-Phase
Frequency
60 Hz
Length of Gap
9-3/8 inches
Longitudinal Feeds
40 feeds: 0.0011-0.0271 IPR
Cross Feeds
40 feeds: 0.0003-0.0103 IPR
Inch Threads
40 threads: 4-112 TPI
Metric Threads
22 threads: 0.45-7.5mm
Tailstock Taper
#3 Morse
Net Weight
2,191 lbs
Shipping Weight
2,491 lbs
Dimensions
78"L x 38"W x 59"H
We warranty all items for 30 days from date of purchase.

SKU: AI1653
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2,595.00 LBS
Width: 48.00
(in)
Height: 65.00
(in)
Depth: 84.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Jet
Part Number: GH-1440W-3
Shelf: Freight
Model: GH-1440W-3
MPN: GH-1440W-3
Type: Engine Lathe
Country/Region of Manufacture: China
Power Source: Electric
Phase: Three
Voltage: 230-460Vac 3 Phase
