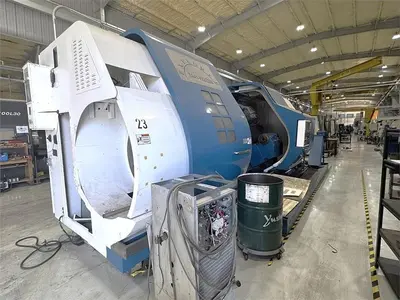

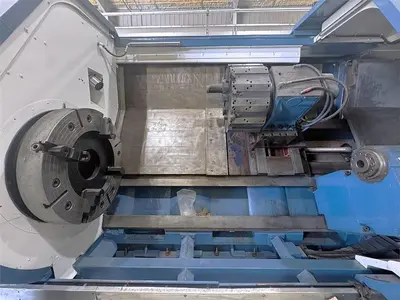

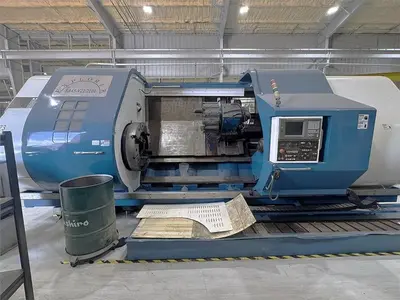

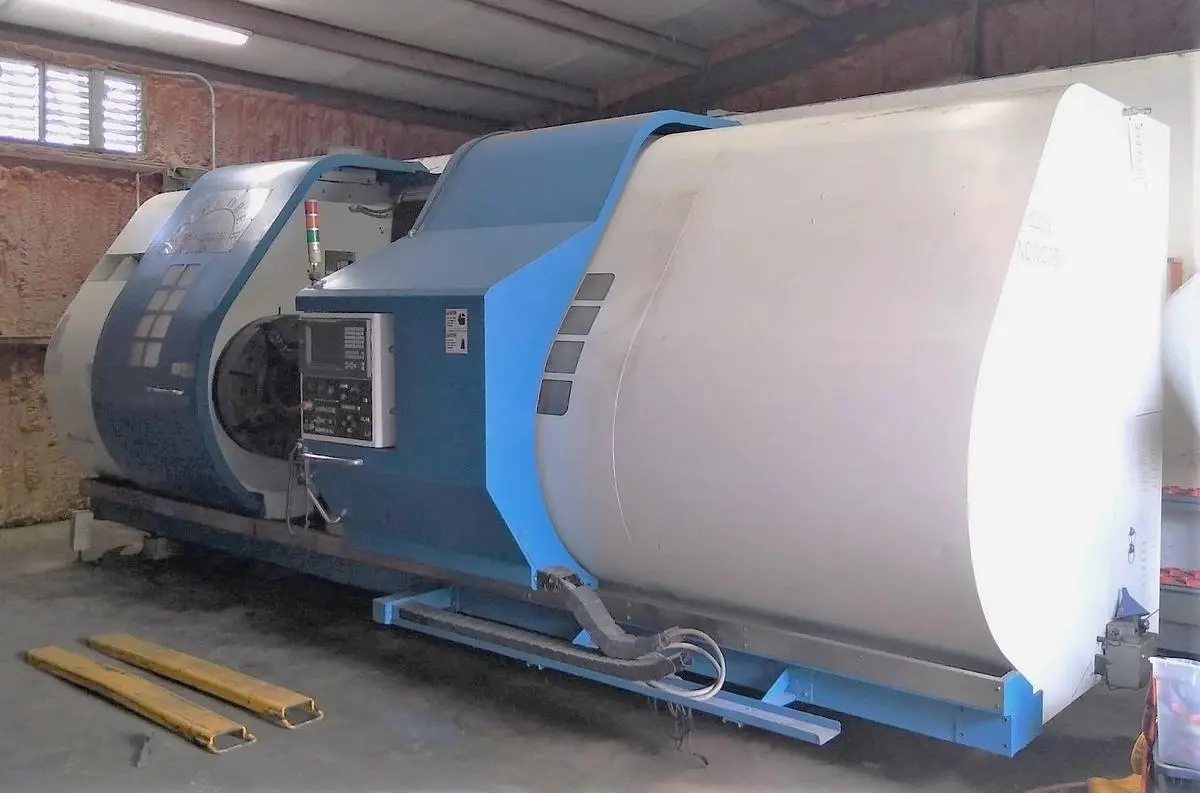

USED 2007 VANTAGE EXPLORER SA45-V22/2200 CNC BIG BORE LATHE
Overview
Description
21.06" Big Bore Spindle Bore

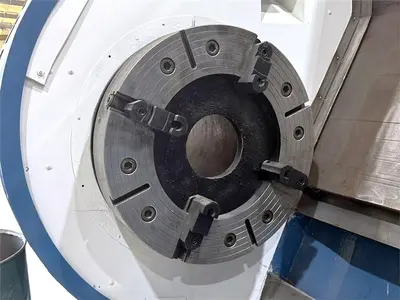

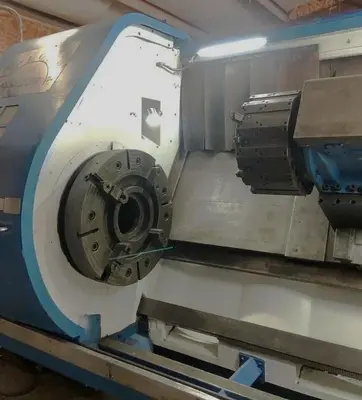

40" 4 Jaw Manual Through Hole Chuck
Tailstock

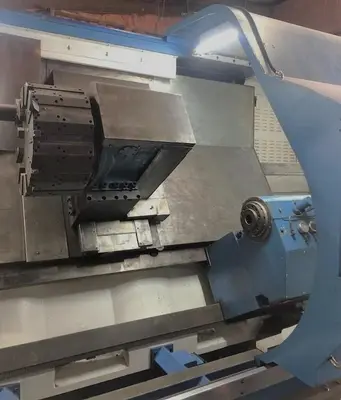

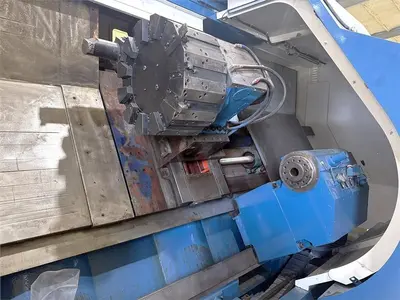

12 Station Turret Chip Conveyor
Coolant System with Tank & Pump
RS 232 Port Interface
Machine Status Condition Lights
Work Light
Heavy Duty Boxed Ways All Available Manuals & Tool Holders
The 2006 Vantage Explorer SA45-V22/2200 is a CNC big bore lathe designed for high-performance machining tasks. It features a Fanuc Series 18-T Control for precision management. With a maximum swing over the bed of 45 inches and a machining diameter and length of 45 inches and 86 inches respectively, this lathe is suited for handling large workpieces. The machine integrates a 40-inch 4 jaw manual chuck and a spindle bore of 21.06 inches, allowing considerable bar capacity.
The lathe operates at spindle speeds ranging from 2 to 300 RPM, driven by a robust 60 HP spindle motor. The 12-position turret supports tool shanks up to 4 inches in diameter, accommodating various tooling setups. For rapid operations, the machine boasts traverse rates of 315 inches per minute on the X-axis and 394 inches per minute on the Z-axis. Tailstock functionality includes a spindle travel distance of 7.87 inches, enhancing versatility in different machining applications.
Weighing 38,500 pounds, this machine is built with durability and stability in mind, though the exact dimensions are not available. Its robust construction and comprehensive specifications provide reliability and efficiency for demanding industrial applications.
Specifications

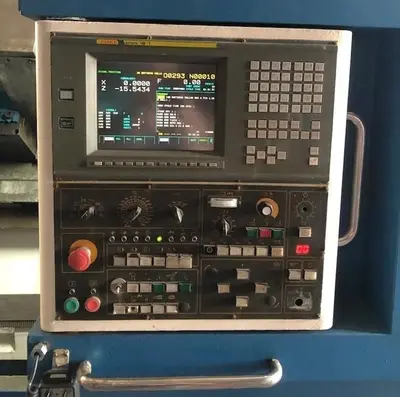

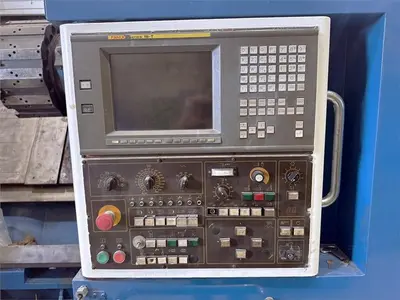

Control: Fanuc Series 18-T Control
Chuck Size: 40" 4 Jaw Manual Chuck
Maximum Swing over Bed: 45"
Maximum Swing Over Cross Slide: 39"
Maximum Machining Diameter: 45"
Maximum Machining Length: 86"
Maximum Bar Capacity: 21.06"
Spindle Nose / Spindle Bore: A2-28" / 21.06"
Spindle Speeds: 2 - 300 RPM
Spindle Motor: 60 HP
Number of Tool Positions: 12 Position Turret
Tool Shank Diameter: 4"
Rapid Traverse Rates X / Z: 315 IPM / 394 IPM
Tailstock Spindle Travel: 7.87"
Machine Dimensions: 216" x 102" x 90"
Machine Weight: 38,500 lbs.
