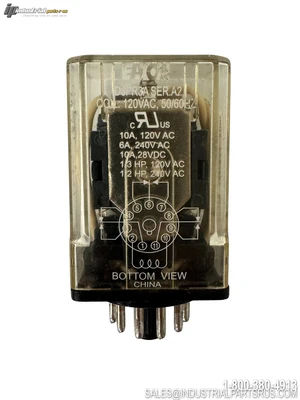

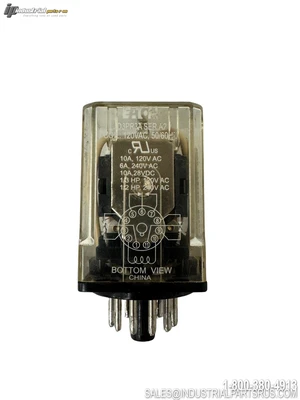

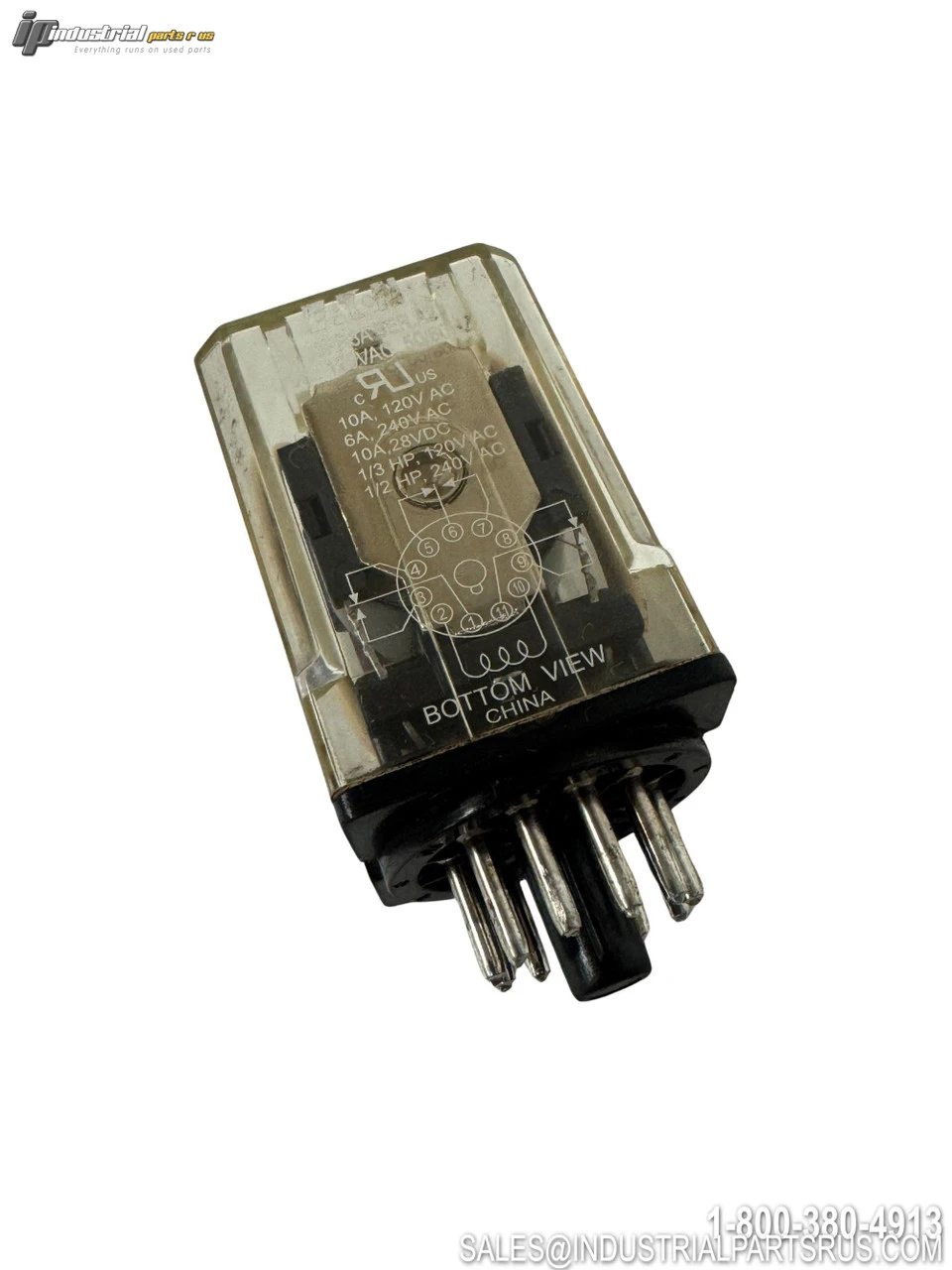

USED EATON D3PR3A

The Eaton D3PR3A is a general purpose ice cube style control relay designed for reliable switching applications. This D3 series plug-in relay features a 120V AC coil, 3PDT contact configuration, and is constructed with silver alloy contacts for excellent electrical conductivity and long service life. The relay uses an 11-pin octal terminal configuration for easy plug-in installation and includes a convenient push-to-test button for field testing.
Specification
Value
Brand
Eaton
Model/Part Number
D3PR3A
Series
D3
Product Type
General Purpose Control Relay
Relay Style
Ice Cube
Coil Voltage
120VAC
Coil Resistance
1700 Ohms
Contact Configuration
3PDT
Number of Poles
3
Contact Rating
16 Amp
Maximum Switching Voltage
300V
Contact Material
Silver Alloy
Terminal Style
11-Pin Octal
Mounting Type
Plug-In
Cover Style
Plain Cover
Enclosure Rating
IP40
We warranty all items for 30 days from date of purchase.

SKU: AI1646
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Mounting Style: Plug-In
Current Rating: 16A
Application: General Purpose Control
Manufacturer: Eaton
Enclosure Type: IP40
Part Number: D3PR3A
Shelf: J-10
Model: D3PR3A
Coil Voltage: 120VAC
MPN: D3PR3A
Type: Control Relay
