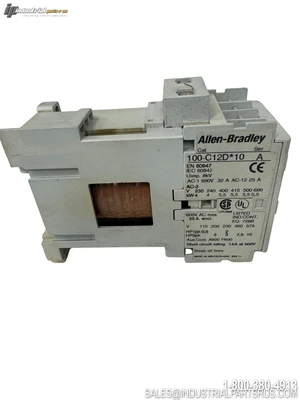

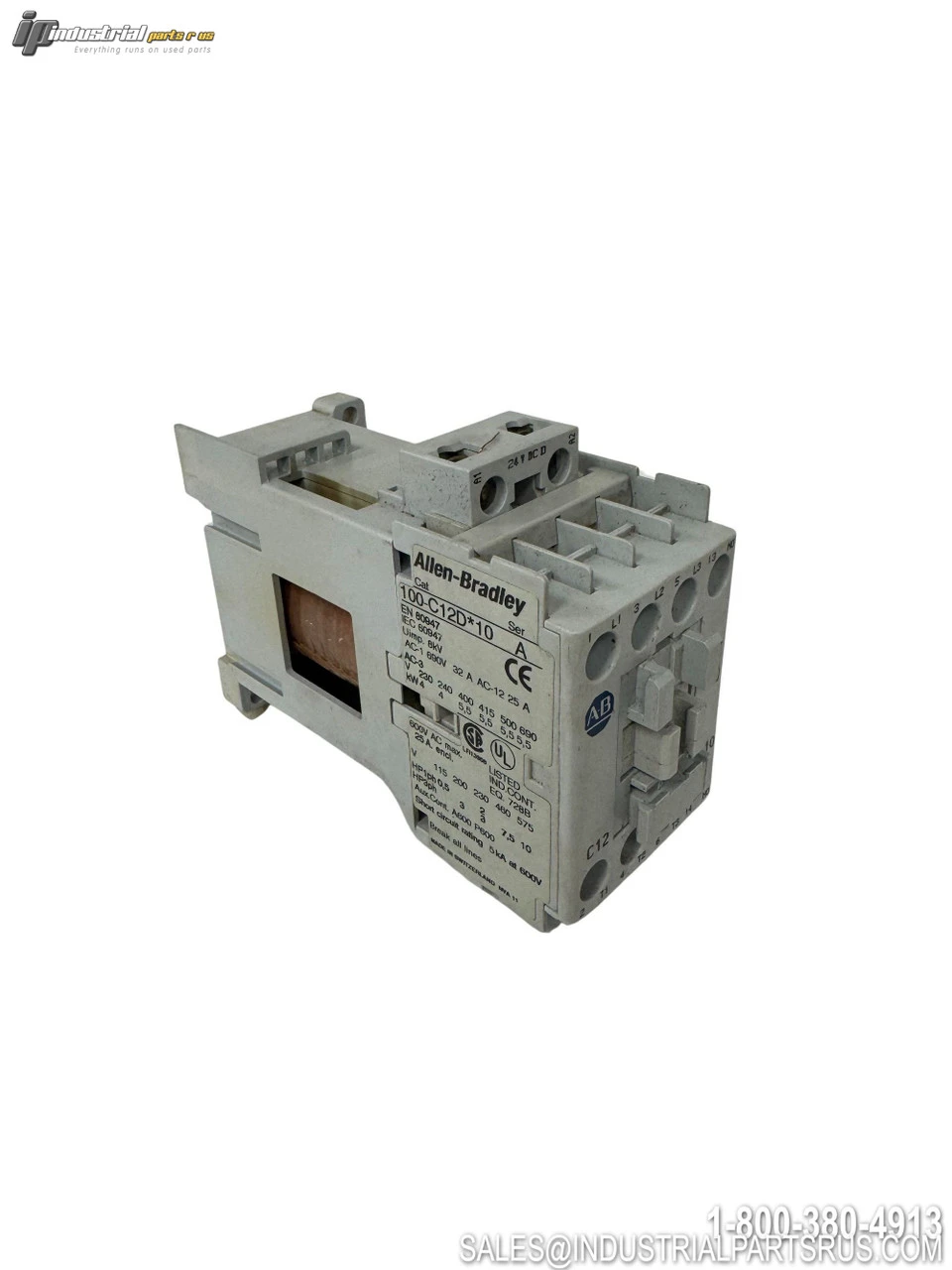

USED ALLEN-BRADLEY 100-C12D*10

The Allen-Bradley 100-C12D*10 is a compact 3-pole IEC contactor designed for controlling motors and other loads up to 12 amperes. This Bulletin 100-C series contactor features space-saving design with high performance and low power consumption, making it ideal for motor control applications in industrial automation systems.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
100-C12D*10
Product Family
Bulletin 100-C
Type
IEC Contactor
Current Rating (AC-3)
12 Amps
Current Rating (AC-1)
32 Amps
Number of Poles
3
Coil Voltage
110V 50Hz / 120V 60Hz AC
Auxiliary Contacts
1 Normally Open
Terminal Type
Screw Terminals
Mounting Type
DIN Rail or Base Mount
Rated Voltage
Up to 690V AC
Motor Rating at 230V
3 HP
Motor Rating at 460V
7.5 HP
Enclosure Protection
IP20
Coil Termination
Line Side
Load Type
Motor Load
Certifications
UL, CSA, IEC, CE
We warranty all items for 30 days from date of purchase.

SKU: AI1656
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Mounting Style: DIN Rail Mount
Current Rating: 12 A
Material: Thermoplastic Housing
Full Load Amps: 12
Manufacturer: Allen-Bradley
Enclosure Type: IP20
Part Number: 100-C12D*10
Series: Bulletin 100-C
Shelf: C-14
Model: 100-C12D*10
Coil Voltage: 120VAC
Horsepower: 3 HP at 230V, 7.5 HP at 460V
MPN: 100-C12D*10
Type: Contactor
