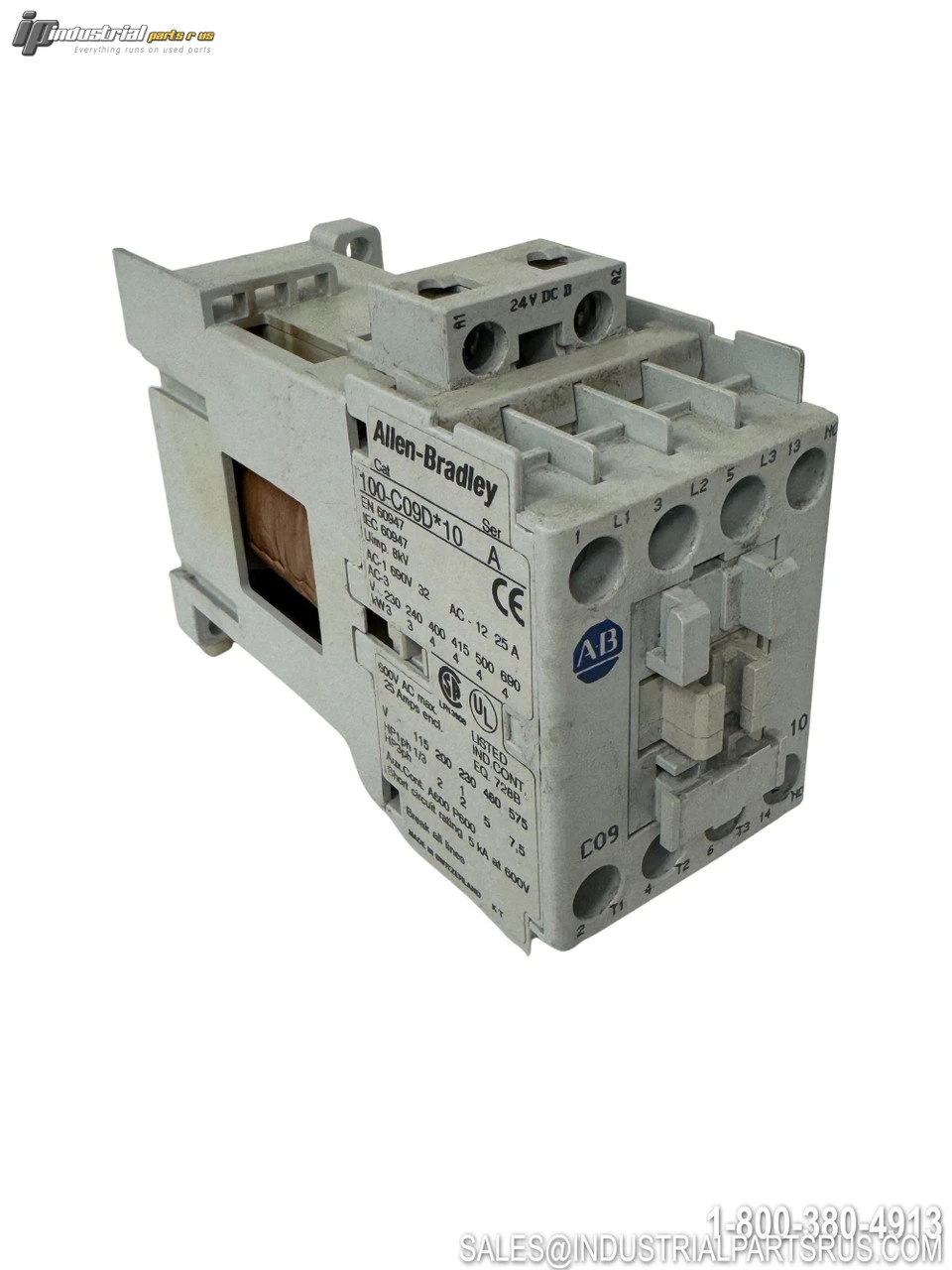

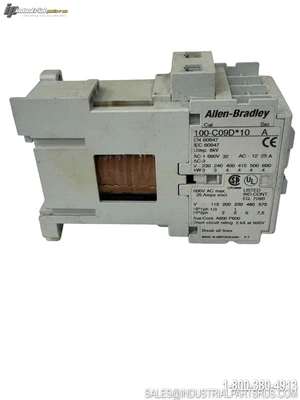

USED ALLEN-BRADLEY 100-C09D*10
Overview
Description
The Allen-Bradley 100-C09D*10 is a 3-pole IEC rated contactor designed for motor control applications. This compact contactor is rated for 9 amperes with a 120VAC operating coil and includes one normally open auxiliary contact for control circuit feedback.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
100-C09D*10
Type
IEC Contactor
Current Rating
9 Amp AC-3, 32 Amp AC-1
Coil Voltage
110V 50Hz / 120V 60Hz
Poles
3 Normally Open
Auxiliary Contacts
1 Normally Open
Horsepower Rating
2 HP @ 230V, 5 HP @ 460V
Power Rating
4 kW
Voltage Rating
230-690 VAC 50Hz, 115-575 VAC 60Hz
Terminal Type
Screw Terminals
Mounting Style
DIN Rail Mount
Frequency
50/60 Hz
Weight
0.85 lbs
Series
100-C
Standards Compliance
UL Listed, CE, CSA, IEC/EN 60947-4-1
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: AI1655
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Mounting Style: DIN Rail Mount
Current Rating: 9 AMP AC-3, 32 AMP AC-1
Manufacturer: Allen-Bradley
Part Number: 100-C09D*10
Series: 100-C
Shelf: C-14
Model: 100-C09D*10
Coil Voltage: 120VAC
Horsepower: 2 HP @ 230V, 5 HP @ 460V
MPN: 100-C09D*10
Type: Contactor
