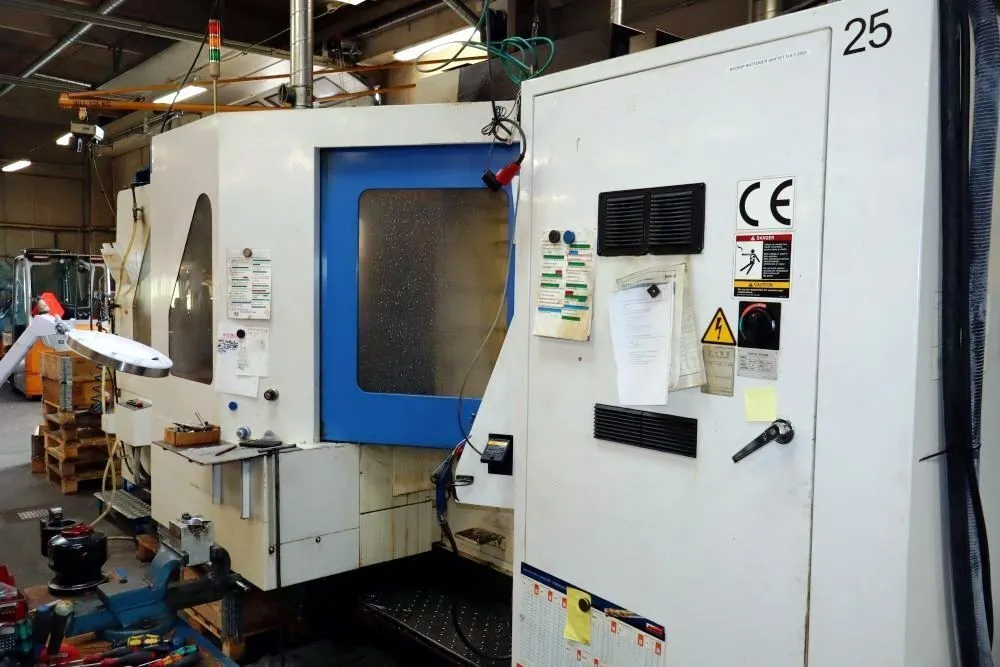

USED 2004 KIA CENTER H63

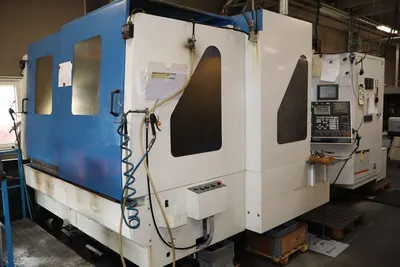

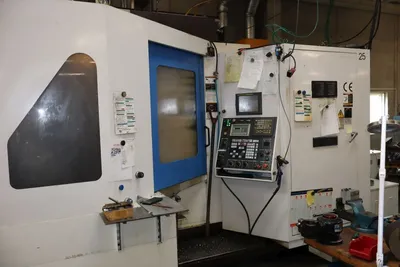

Twin Pallet Horizontal Machining Center: Kia Center H63

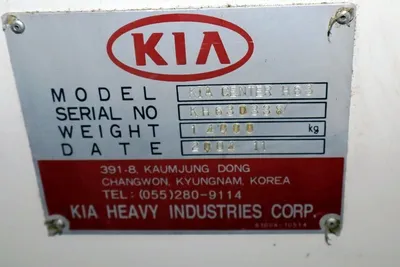

Serial number: KH630338
Year of manufacture 2004 11
Vægt: 14 tons + shuttle type twin pallet palletizer: 2 tons.
Operating hours as of May 12, 2026:
Power: 71457
Operation: 28051
Cutting: 13222.
The machine is powered and still used in production.
Conus: BT50, 120 degrees

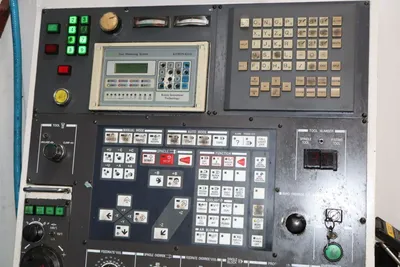

Control: Fanuc Series 18i-MB
Cooling through spindle.
Max. working area: Ø1120x875 mm
Feed:
X-axis 950 mm
Y-axis 825 mm
Z-axle: 760 mm
Distance from the plane surface to the spindle center: 175 to approximately 935 mm
Distance from table center to spindle nose: 0 to approx. 825 mm

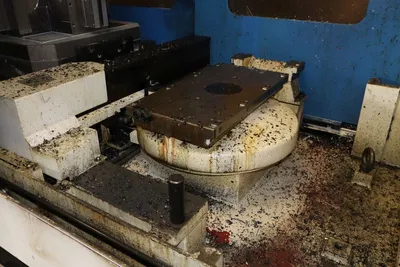

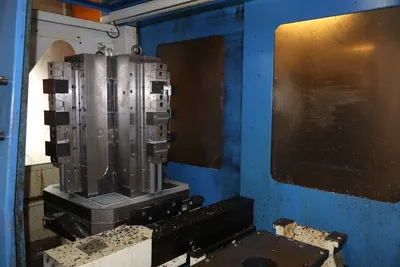

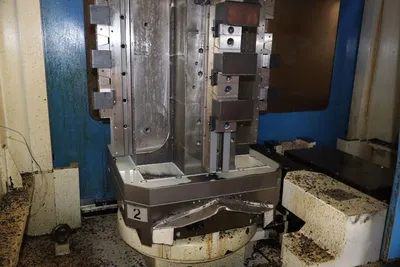

Pallet size: 630x630 mm
Max. load: 1000 kg./pallet

Spindle:
Taper: NT50
Spindle speed: 5000 rpm.
Spindle motor output: 22 kW
2 step geared headstock

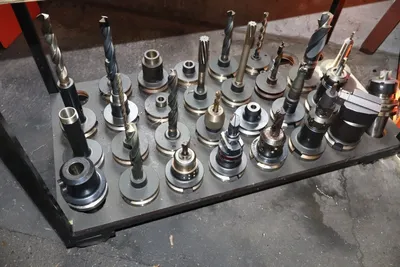

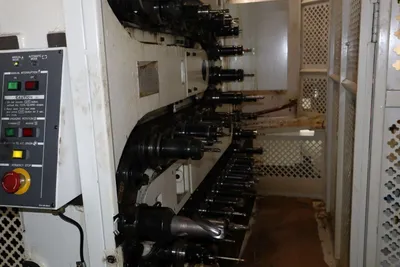

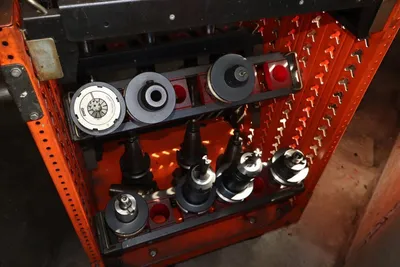

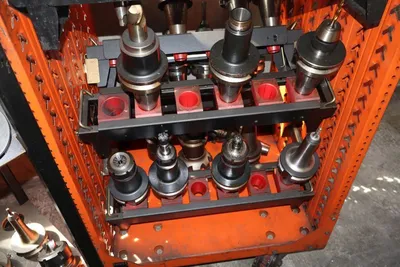

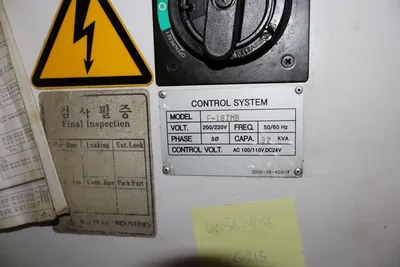

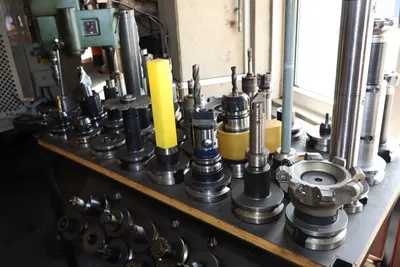

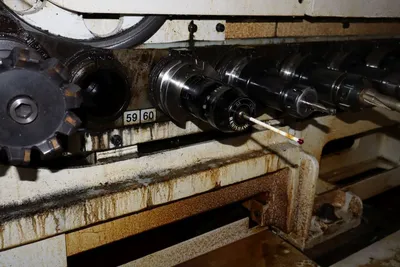

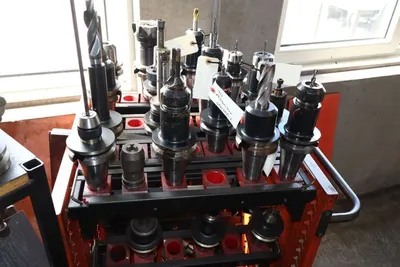

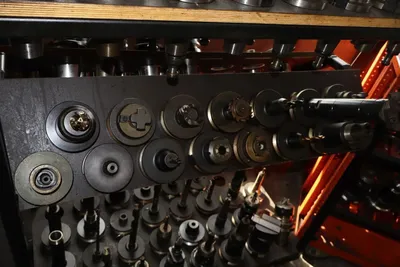

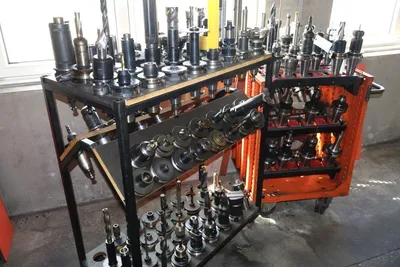

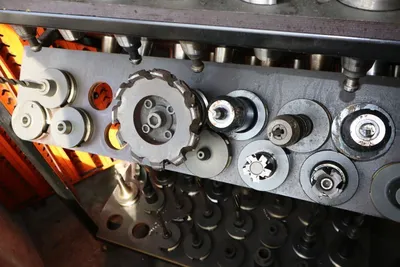

ATC: 60 tool positions. Control System model F-18IMB. The machine is sold with tools in the machine and tools on two tool trolleys as pictured.

Max. tool diameter: Ø110 mm
Max tool diameter without adjacent tool: Ø 245 mm
Max. Tool length: 600 mm
Max. tool weight: 20 kg.
Tool change time – tool to tool: 6 seconds

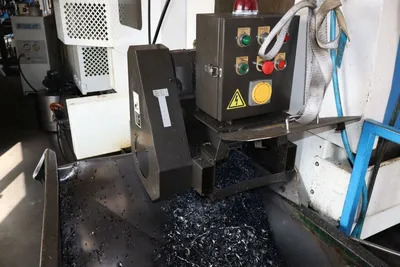

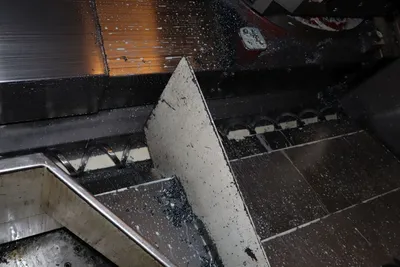

Oil cleaner and chip conveyor included.

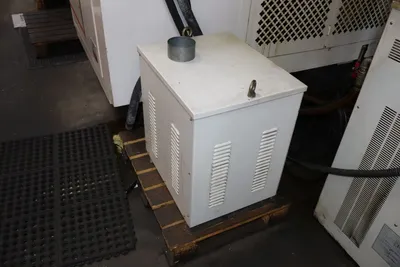

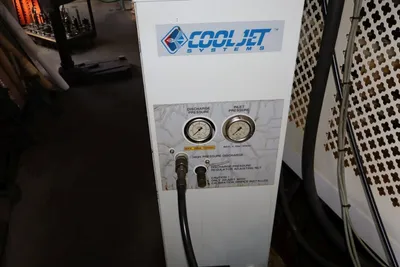

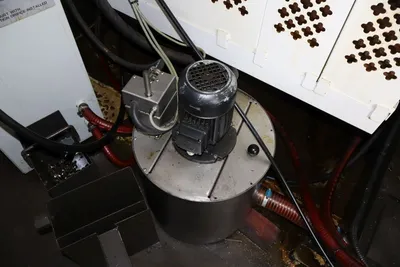

Cooljet Systems oil cooler included.
CJS Oil Chiller included.
Backup batteries replaced on 01/06/2023. New backup taken before power outage.
Machine dimensions: LxWxH: 3610x5320x3140 mm
Manuals included.
Parameter backup included on USB
The machine is disconnected from power before collection.
The machine is emptied of oil before collection.

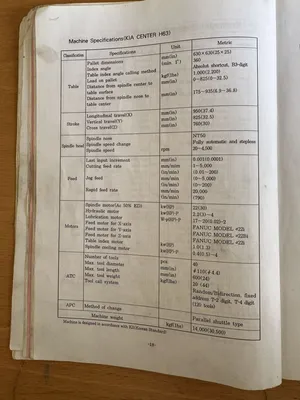

Pls. find specs sheet in the photos
