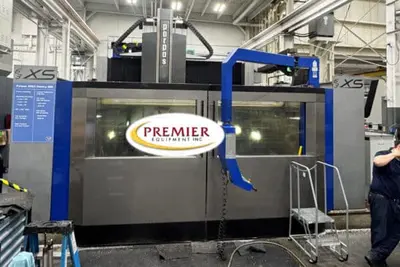

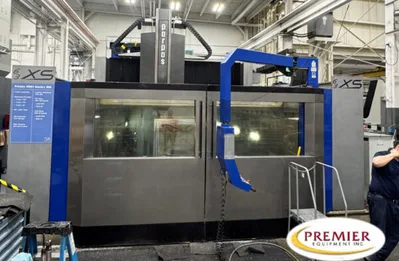

Parpas XS63 with Head Changing 5X Gantry Mill – 2011

Parpas XS63 with Head Changing 5X Gantry Mill

Table Size:  236” x 98” x 11.81”
X-Axis Longitudianl Travel:  236.22”
Y-Axis Cross Travel:  118.11”
Z-Axis Vertical Travel:  59.05”
Distance Between the Columns:  145.66”
Feedrates X / Y and Z:  2362 IPM / 1574 IPM

Heidenhain iTNC 530
5-Axis Machining
High Pressure Thru-Tool Coolant
TIC Head HSK 100 Spindle – 5000 RPM / 88/78 HP
TOE Head – HSK63 Spindle / 20,000 RPM / 49/38 HP

**The Floor Plate (Table) is Not Included with this Machine
