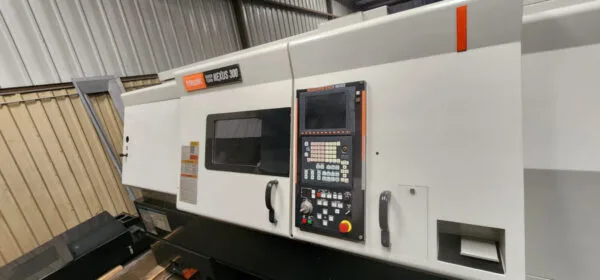

Mazak Nexus 300 (48″cc) – 2006

Mazak QT Nexus 300 / QTN300 / QTN-300

CNC Turning Center

MAXIMUM SWING:                26.77”
STANDARD MACHINING DIAMETER:  10.39”
MAXIMUM MACHINING DIAMETER:  16.53” (ADJACENT TOOLS EMPTY)
SPINDLE MOTOR:  35/30 (30 MIN/CONT.)
SPINDLE BORE:  3.46”
SPINDLE TORQUE:  422 FT/LBS.
STD. BAR CAPACITY:  3”
SPINDLE SPEED:  4,000 RPM
SPINDLE NOSE:  A2-8
TURRET TYPE:  DRUM TURRET
NUMBER OF TOOLS:  12
TOOL SHANK HEIGHT:  1”
BORING BAR SHANK DIAMETER:  1.5”
TURRET INDEX TIME:  .2 SEC (ONE POSITION)
X-AXIS TRAVEL:  8.85”
Z-AXIS TRAVEL (BED LENGTH: 48) :  49”
RAPID TRAVERSE RATES X-AXIS:  1,181 IPM
RAPID TRAVERSE RATES Z-AXIS:  984 IPM
TAILSTOCK CENTER:  MT NO. 5
MACHINE HEIGHT:  78.73”
FLOOR SPACE REQUIREMENT:  48” BED  137.8” X 80”
WEIGHT:  (48” BED)  16,535 LBS.

Mazatrol Fusion 640T Control
Auto Tool Eye
Tailstock
Chip Conveyor
