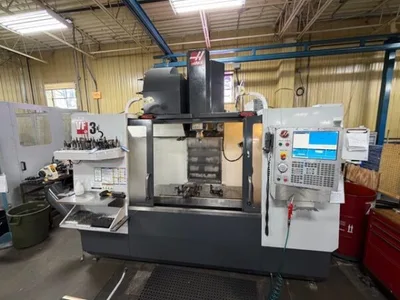

2011 Haas VF-3
CNC Vertical Machining Center
Table Size48″ x 18”
Maximum Weight on Table3500 lbs
Number of Axis3 Axis
X Axis Travel40”
Y Axis Travel20″
Z Axis Travel25″
Table to Spindle Nose4” – 29”
Automatic Tool Changer40 ATC
Max Tool Weight: 12 lbs
Max Tool Diameter / Length: 5” / 11”
Spindle Taper#40 Taper
Spindle Speed in RPMS10,000 RPM
Spindle Motor20 HP
Machine Dimensions118” x 110” x 119.5”
Machine Weight12,5000 lbs.
Haas CNC Control
10K Spindle (geared spindle)
2 Speed gearbox
High intensity lighting
Brushless 4th axis wiring
Auto Air gun
Chip auger
CT option
Extra Z clearance, inch (this is a great option for rotaries)
ETHERNET interface
750MB Memory
High speed machining
Programmable coolant
Remote jog handle
Early power failure detection module
Rigid tapping
Sidemount toolchanger
Macro option
Coordinate, rotation & scaling
Spindle orientation
