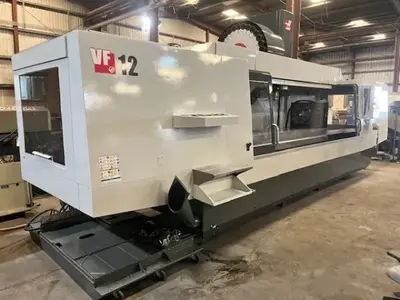

HAAS VF-12/50 with Rotary Table – 2014

HAAS VF12/50 CNC VERTICAL MACHINING CENTER
MAIN SPECIFICATIONS

Table Size 150″ x 28″

Maximum Table Load 4,000 lbs

X-Axis Travel 150″

Y-Axis Travel 32″

Z-Axis Travel 30″

Spindle Speed 7,500 rpm – 2 Speed Gear Box

Spindle Taper CAT 50

Spindle Motor 30 HP Distance Spindle Nose to Tabletop 4″ – 34″

Tool Magazine Capacity 30 Station Side

* Scale Feedback on X AXIS

* Side Mounted Arm Type Tool Changer

Rapid Traverse Rates X / Y, Z 360 IPM / 600 IPM

Thru Spindle Coolant 1000 PSI Programable Coolant Nozzle
Auxiliary Coolant Filter

Probe Ready

Visual Quick Code Programming

User-Definable Macro

Spindle Orientation

Coordinate Rotation & Scaling

Auger Style Chip Conveyor

CNC Control Cabinet Cooler

Rigid Tapping

High Intensity Lighting

Color Remote Jog Handle

15″ Color LCD Monitor

1 MB Program Memory

95 Gallon Flood Coolant System

USB Port Interface

RS 232 Port Interface

230V 3 / 60

Haas HRT 450 Installed
