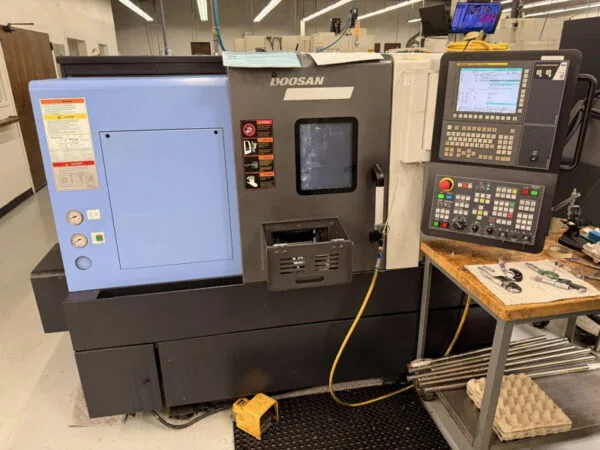

DOOSAN LYNX 2100A CNC Turning Center
SWING 23″
MACHINING LENGTH 13″
# AXIS 2
CHUCK SIZE 6″
BAR CAPACITY 2″
POWER 20 hp
MAX RPM 6,000 RPM
TURNING DIA 13.8″
TAILSTOCK Yes
DIMENSIONS 91.3″ x 63″ x 66.6″
WEIGHT 6,850 lbs
General Specifications:
X-Axis Travel: 8.1″
Z-Axis Travel: 13.4″
Rapid Traverse Rate (X/Z): 1181 / 1417 IPM
Turning Diameter: 13.8″
Turning Length: 13″
Bar Capacity: 2″
Chuck Size: 6″
Spindle Speed: 6,000 RPM
Spindle Motor: 20 HP
Torque: 93.6 ft-lbs
Boring Bar Diameter: 1.5″
Shank: BMT-Key
Turret Positions: 12
Machine Dimensions: 91.3″ x 63″ x 66.6″
Machine Weight: 6,850 lbs
Fanuc 0i-Plus CNC Control
Programmable Tailstock
Hennig Chip Conveyor
Tool Setter
Parts Catcher
All Available Manuals and Tooling
