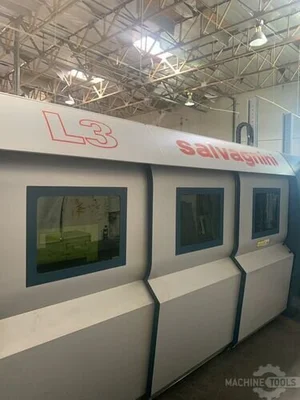

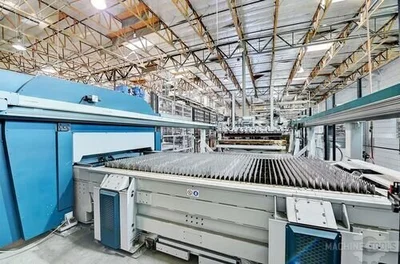

Salvagnini L3 - 30 CNC Fiber Laser w/ Automation
| Sheet-W | 60" | 1,524 mm |
| Sheet-L | 120" | 3,048 mm |
| Wattage | 2000 w | 2,000 W |
| IPM | 4724 cmpm | |
| X | 120" | 3,048 mm |
| Y | 60" | 1,524 mm |
| Z | 3.9" | 99.06 mm |
General Info
Stock #: 121260017
Brand: Salvagnini
Model: L3 - 30
Year: 2015
Loading Fee: Riggers Required
Specifications
Table Size: 5' x 10'
Working Range: 5' x 10'
Z Axis Stroke: 3.9"
Maximum Positioning Speed: 4724 IPM
Positioning Accuracy: .003"
Average Position Range: .001"
Assist Gases: Nitrogen, Oxygen, Compresser Air
Cutting Capacity (Steel): 24 Gauge to 3/4"
Cutting Capacity (Stainless Steel): 24 Gauge to 7/16"
Cutting Capacity (Aluminum): 24 Gauge to 3/8"
Cutting Capacity (Copper): 24 Gauge to 24" x 5/16"
Cutting Capacity (Brass): 24 Gauge to 7/32"
Hours: 6313
Electrical: 460V / 60 Hz / 3 PH
Equipped With

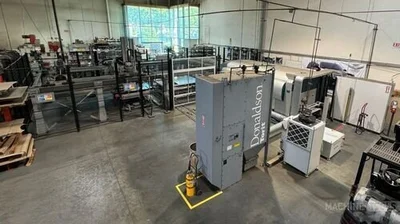

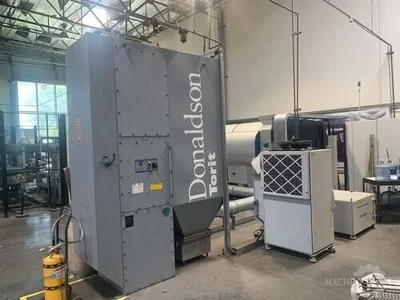

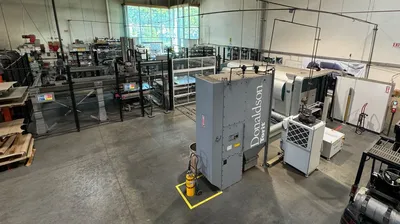

3000 Watt IPG Laser Power Source, 5' x 10' Shuttle Tables, Donald Torit Dust Collector, Chiller
Additional Info
Current Beam On Hours 8,517. Can be inspected upon request
