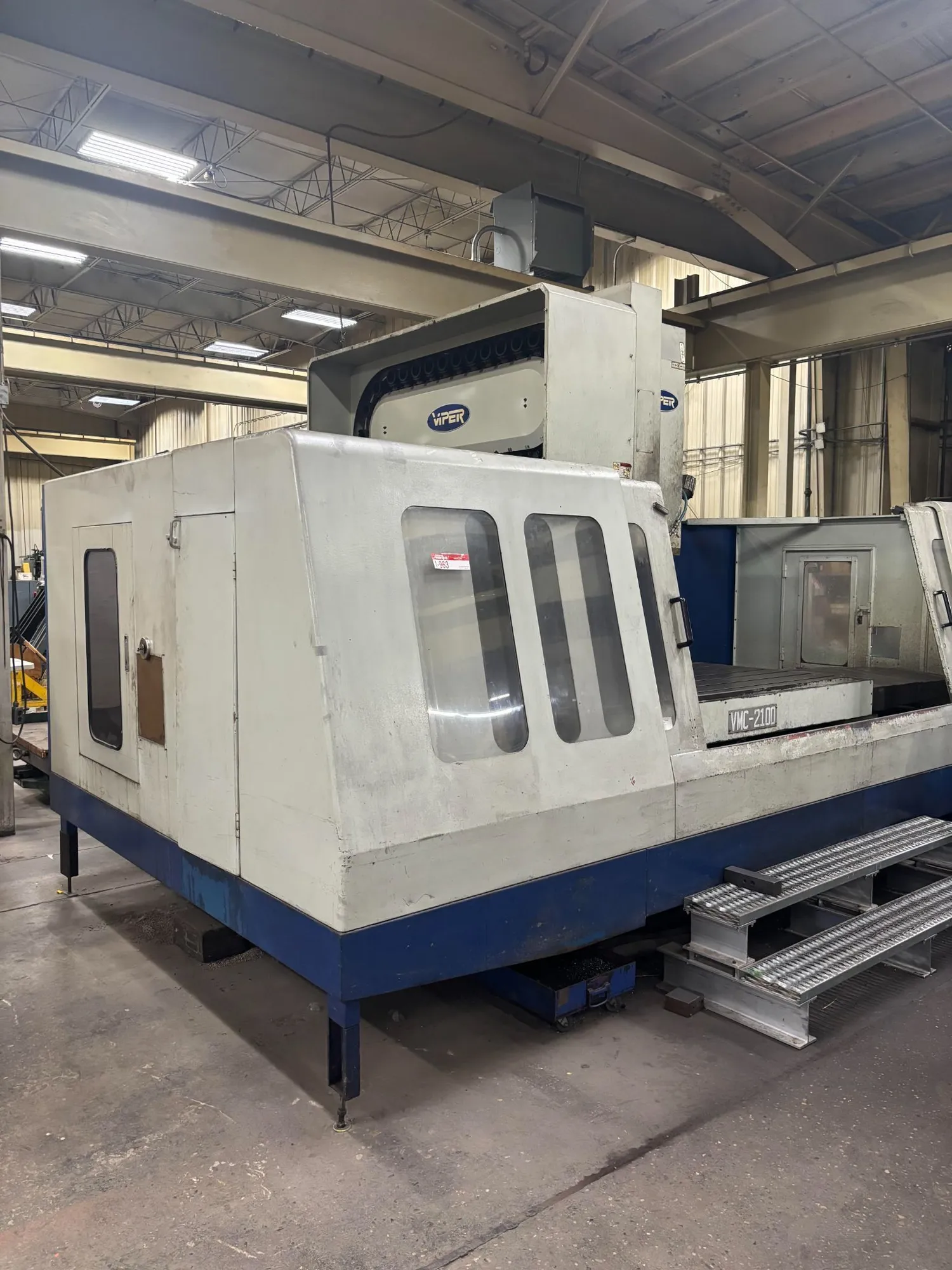

Viper VMC 2100 AP VMC, Mits 530 CNC, 6000 RPM, 32 ATC, CAT 50 , 2009
| X | 82.7" | 2,100.6 mm |
| Y | 40" | 1,016 mm |
| Z | 32" | 812.8 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 32 | 32 |
| Taper | CAT50 | CAT50 |
| Table-W | 35.4" | 899.16 mm |
| Table-L | 94.4" | 2,397.8 mm |
| # Axis | 3 | 3 |
| Control | CNC (Mitsubishi 530) | CNC (Mitsubishi 530) |
| Dimensions | 220 in x 160 in x 120 in | 220 in x 160 in x 120 in |
| Weight | 26000 lbs | 26000 lbs |
Box ways
Coolant Tank
No Chip Conveyor
6000 RPM
35 HP Spindle Drive
RS 232 Port / Cable
Dell Optiplex GN Dell 15" Monitor Computer with DNC Cable
Chiller Unit
200-22- Volt
