2016 Southwestern TRAK DPMSX5P 3-Axis CNC Vertical Mill, used, featuring a Proto TRAK SMX Controller, 12"x50" table, 5 HP spindle motor, and auto lube system. Ideal for precise milling with up to 5 inch³/min capacity.
| Table-W | 12" | 304.8 mm |
| Table-L | 50" | 1,270 mm |
| Travel-Long | 40" | 1,016 mm |
| Travel-Cross | 20" | 508 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 5,000 RPM | 5,000 RPM |
| Taper | 40 | 40 |
| Control | CNC | CNC |

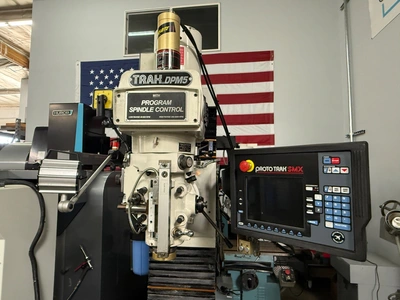

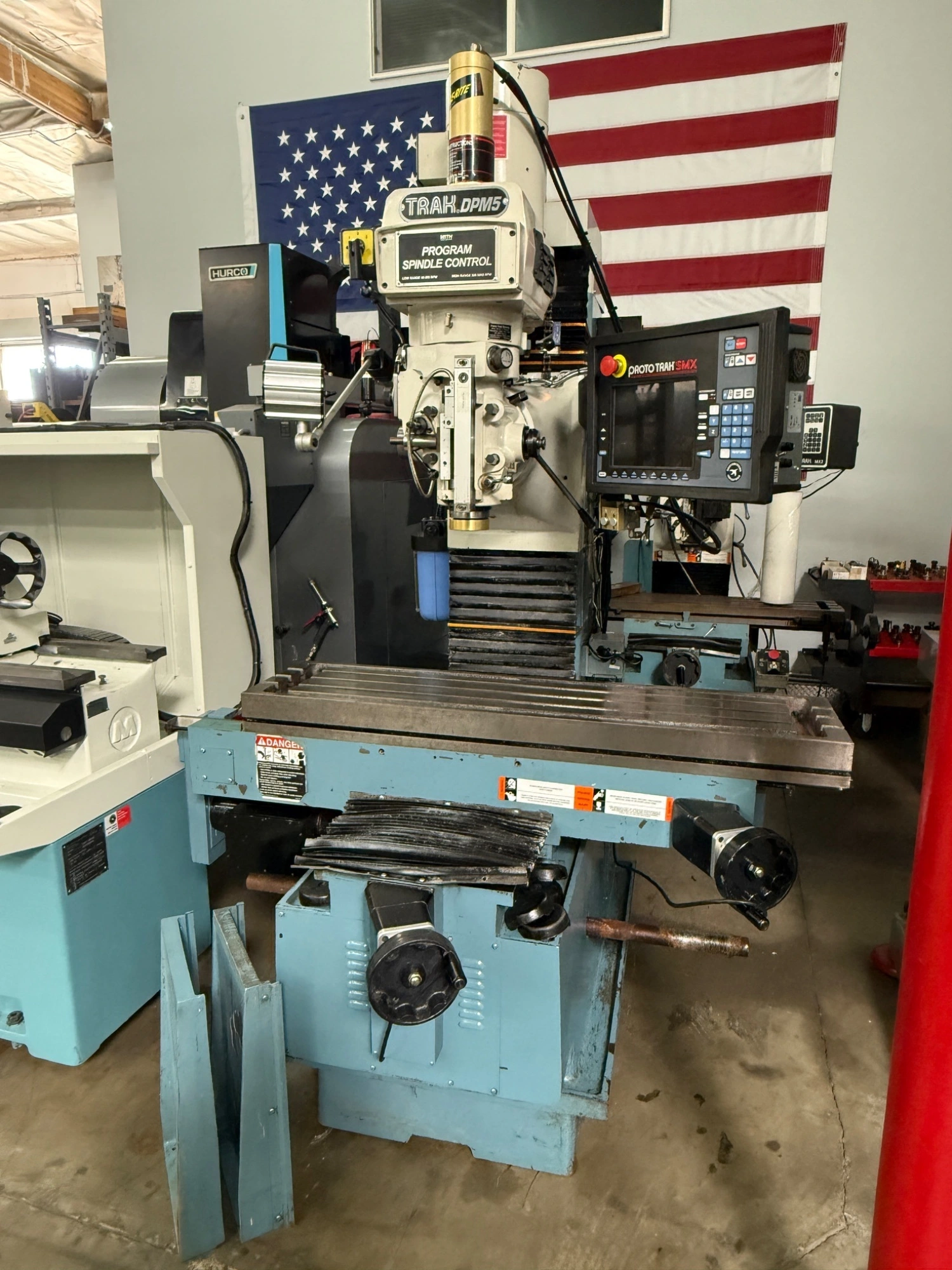

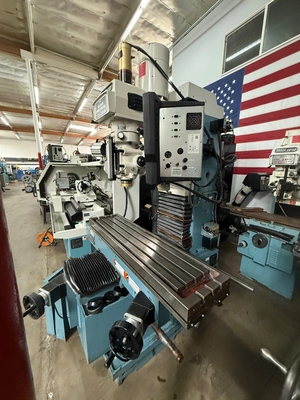

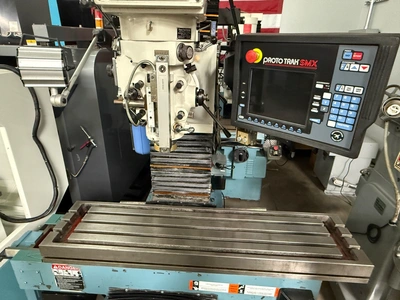

2016 SOUTHWESTERN TRAK DPMSX5P 3-Axis CNC Vertical Mill #8215
SPECIFICATIONS:
Table Size: 12″ x 50″
Longitudinal Travel: 40″
Cross Travel: 20″
Ram Travel: 23.5″
Quill Travel: 5″
Spindle Speed Range: 40-600, 300-5000
Spindle Motor: 5 HP
Spindle Taper: 40 Taper
Quill Diameter: 3.9375″
Spindle Center to Column Face: 20″
Max Spindle Nose to Table: 23.5″
Drilling Max Capacity: 1″ Diameter
Tapping Max Capacity: 1″
Rapid Traverse X, Y, Z: 150 IPM
Milling Max Capacity: 5 inch^3/min
Voltage: 220V/3PH/17.5AMP
Equipped With:
Proto TRAK SMX Controller
Auto Lube System
Program Spindle Control
Torque-Rite Power Draw Bar
