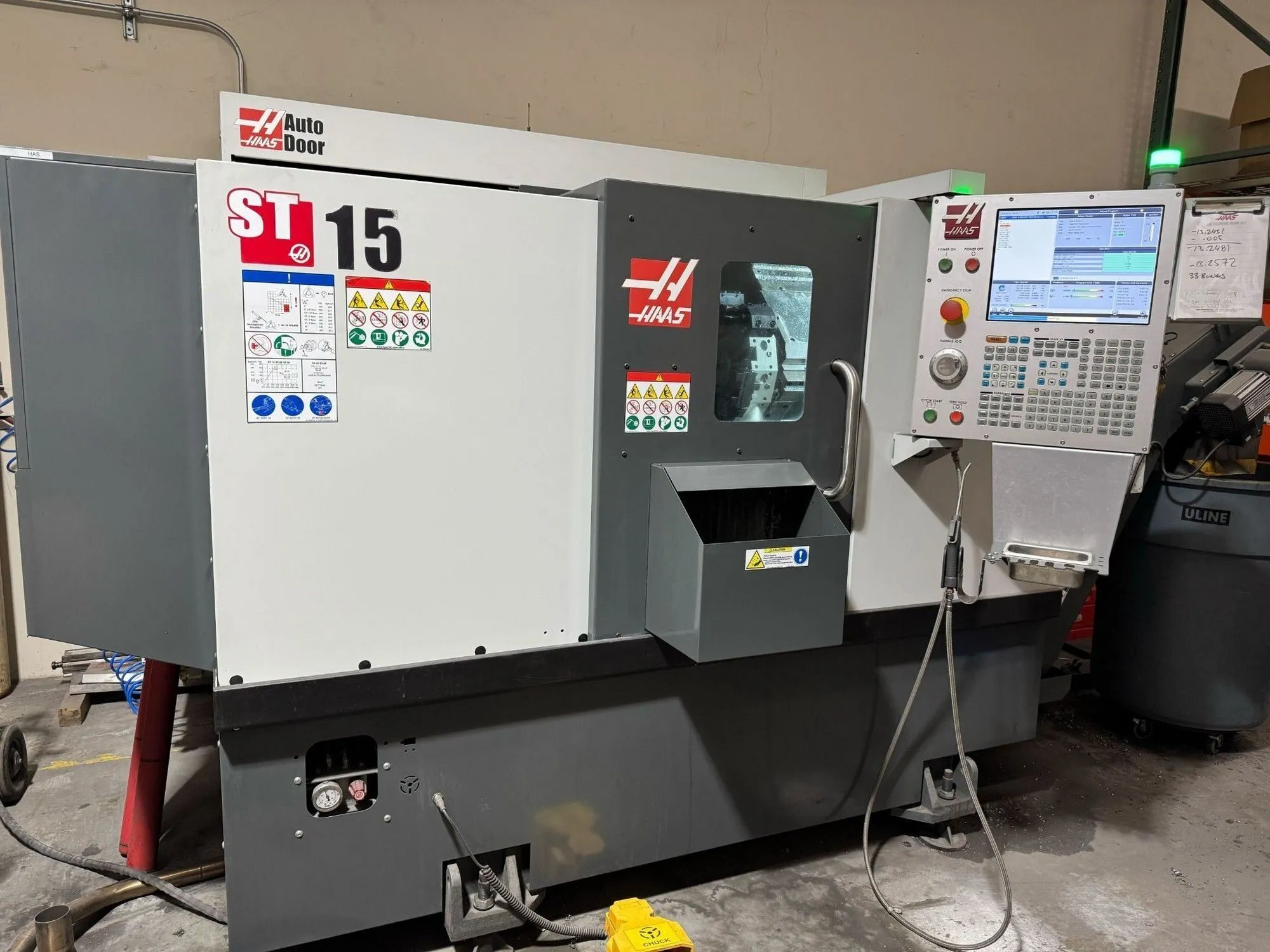

HAAS ST-15 CNC Lathe, 2020 model, used. Features: 27" swing, 16" machining length, 8.3" chuck size, 2.5" bar capacity, 20 HP, 4000 RPM max, 14" turning diameter. Ideal for precision turning tasks.
| Swing | 27" | 685.8 mm |
| Machining Length | 16" | 406.4 mm |
| Bar Capacity | 2.5" | 63.5 mm |
| Chuck Size | 8.3" | 210.82 mm |
| Turning Diameter | 14" | 355.6 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
Key Specifications:
12-station bolt-on turret
A2-6 spindle nose
8.3" hydraulic chuck
Belt-type chip conveyor
30-gallon coolant tank
Options & Features:
Automatic tool presetter
Auto door (lathe)
Parts catcher
Rigid tapping
User-definable macros
Ethernet + WiFi connectivity
HaasConnect / HaasDrop
Safe Run
Visual Part Programming
Touchscreen control
Early power-failure detection
Royal Quick-Grip collet chucks:
1.9800"
1.50"
1.00"
Royal collet chuck tool
Royal bar puller
Trusty-Cook spindle liners
Assorted tooling and inserts
Power-On Time: 2,998 hrs
Cycle Start Time: 457 hrs
Feed Cutting Time: 281 hrs
