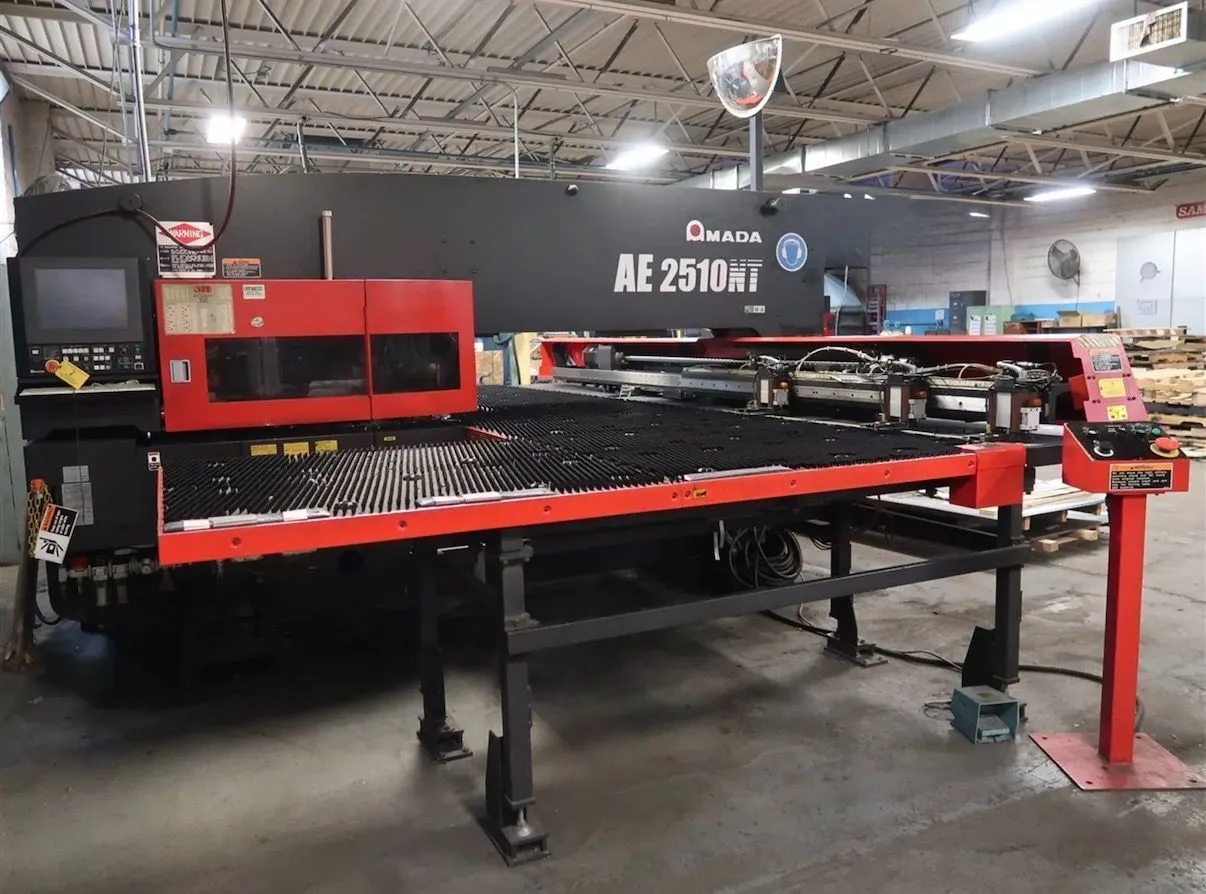

USED 2013 AMADA AE 2510 NT
Overview
Amada AE 2510 NT
Specs
Capacity 22 tons
Sheet Size 98.425" x 50"
Largest Punched Hole 3 1/2"
Number of Turret Stations 45 Station 4- Auto-Index
Stroke Length 1.65" (increased forming cap.)
X/Y Hits Per Min. 1" centers .197" stroke X=350 HPM, Y=280 HPM
X/Y Hit Rate Marking 900 HPM,
Linear Positioning Speed X=3,150 IMP, Y=2,362 IPM
Control Model Fanuc AMNC/PC (NT)
Drive motors AC Servo
Smallest Programmable Increment .001"
Machine Weight 28,660 Lbs
Equipped With
SINGLE AC SERVO DRIVEN RAM
Built-in Microprocessor - Standard software included for programming a comprehensive set of
patterns used in punching, nibbling, and notching operations.
Diagnostic System - Extensive diagnostic system indicates programming errors and pinpoints
machine and control malfunctions.
On Screen G-Code Simulator - See the part before it is punched
Intelligent Turret Set up- Input tool locations and angles, clamp positions
Job Scheduler- Specifiy Job Order and Quantities
Stripping Sensor - Automatically halts machine operation if tool does not strip.
Automatic Repositioning - Heavy duty work holders secure material during repositioning.
Metric or inch dimensional programming.
Precision ground recirculating ball lead screws for X and Y Axis.
Crash proof clamp sensors.
Hardened and ground turret index pins and bushings.
Safety interlocks and overrun protectors with all step control prevents accidents.
Air Blow System
45 Station 4-Auto Index Thick Turret
Brush Table
