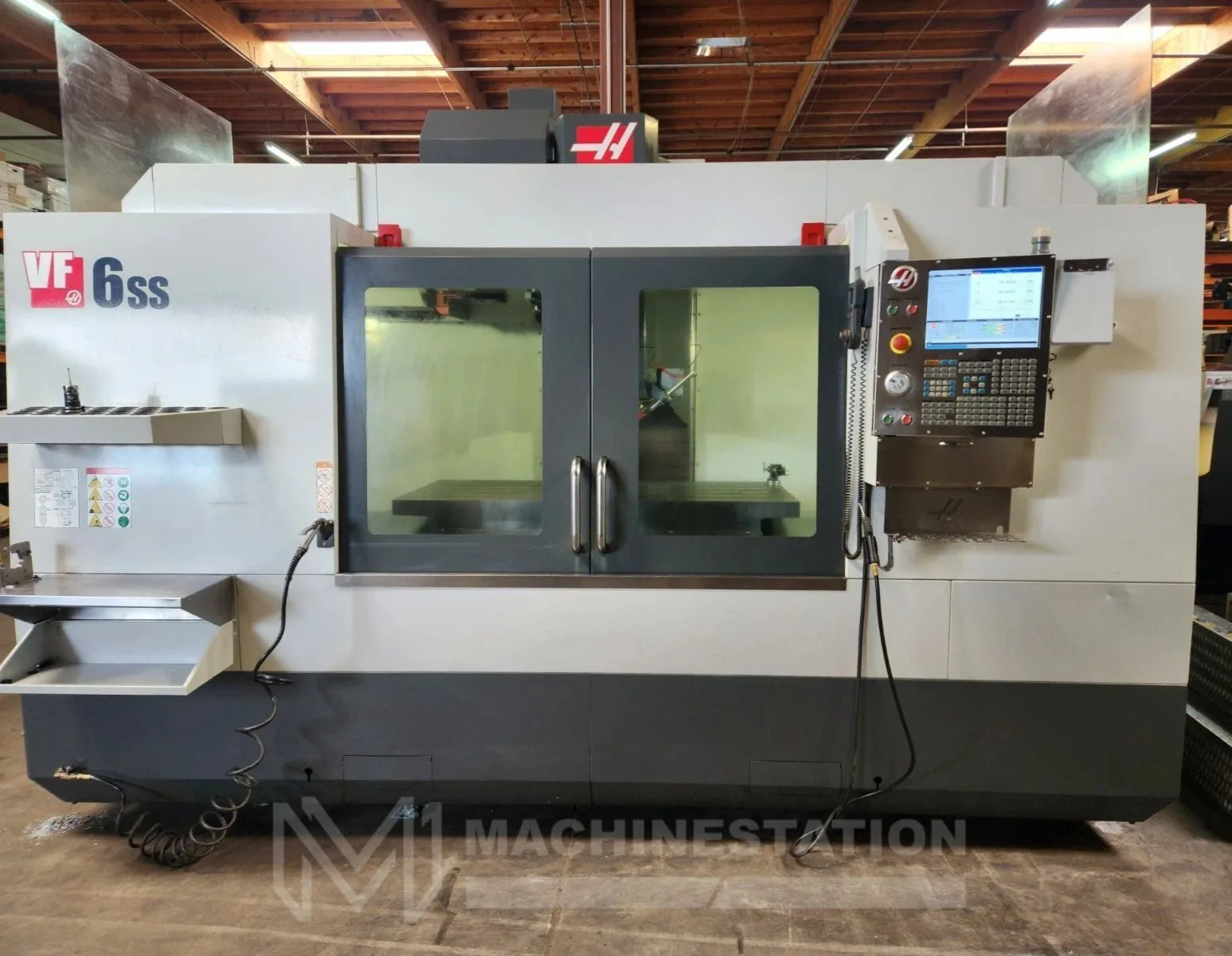

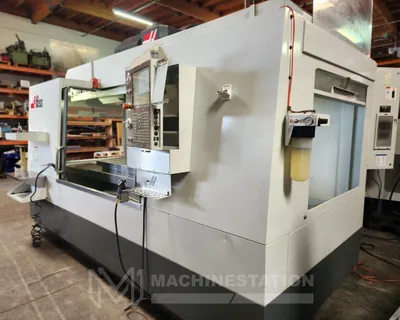

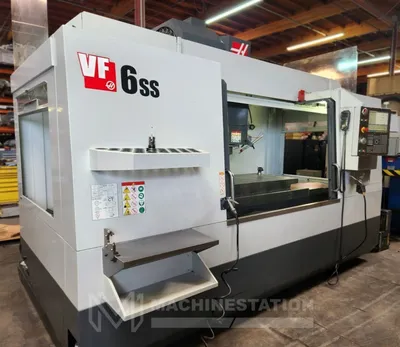

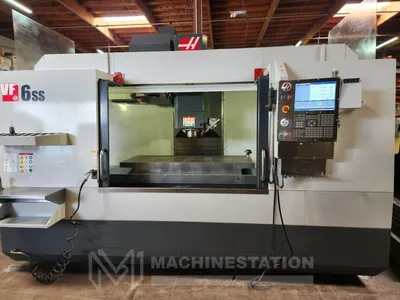

USED 2017 HAAS VF-6SS

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

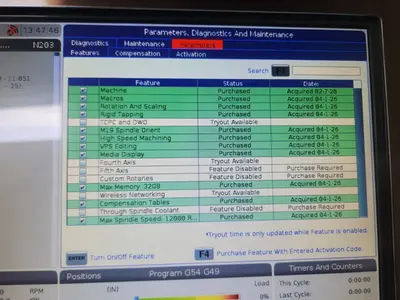

Features:

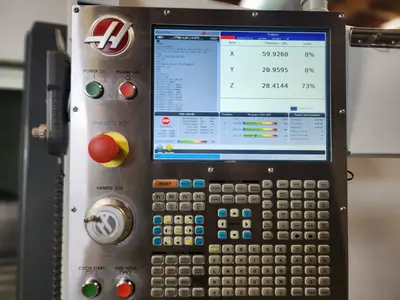

Haas CNC Control
VPS Editing
Rotation and Scaling
Macros
Media Display
Compensation Tables
32GB Max Memory
Coolant System

Travels:
X-axis: 64″
Y-Axis: 32″
Z-Axis: 30″
Rapid Traverse Rates: 1200 IPM
Cutting Feed Rates: 833 IPM
Spindle Nose To Table (Min.- Max.): 4″ – 34″

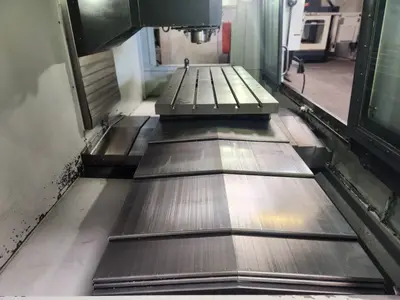

Table:
Length: 64″
Width: 28″
Number Of Std T-slots: 5
T-Slot Width: 5/8″
Max Weight On Table: 2000 Lbs

Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 30 HP
Vector Drive Max Torque: 90ft-lb @ 2000 RPM

Automatic Tool Changer:
Capacity: 24 Station Side Mounted
Tool Weight: 12 Lbs
Max Tool Diameter (Full): 2.5″
Max Tool Diameter (adjacent empty): 5″
Max Tool Length: 16″
Tool Changing Time: 3.2 Seconds

General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 195″ x 102″ x 130″ High
Weight: 22,300 lbs Approx.

12,000 RPM Inline Direct Drive Spindle
24 Station High Speed Tool Changer
Wireless Intuitive Probing System (Upgraded $6,795 value Included)
Probe Riser Block (Upgraded $595 value Included)
High Speed Machining (Upgraded $3,995 value Included)
Programmable Coolant Nozzle
Rigid Tapping
Spindle Orientation

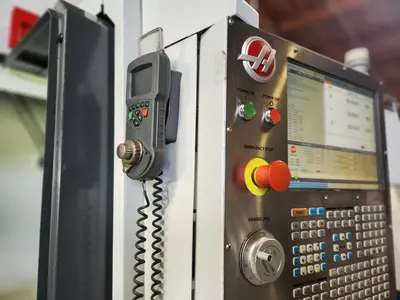

Remote Jog Handle
Chip Auger
