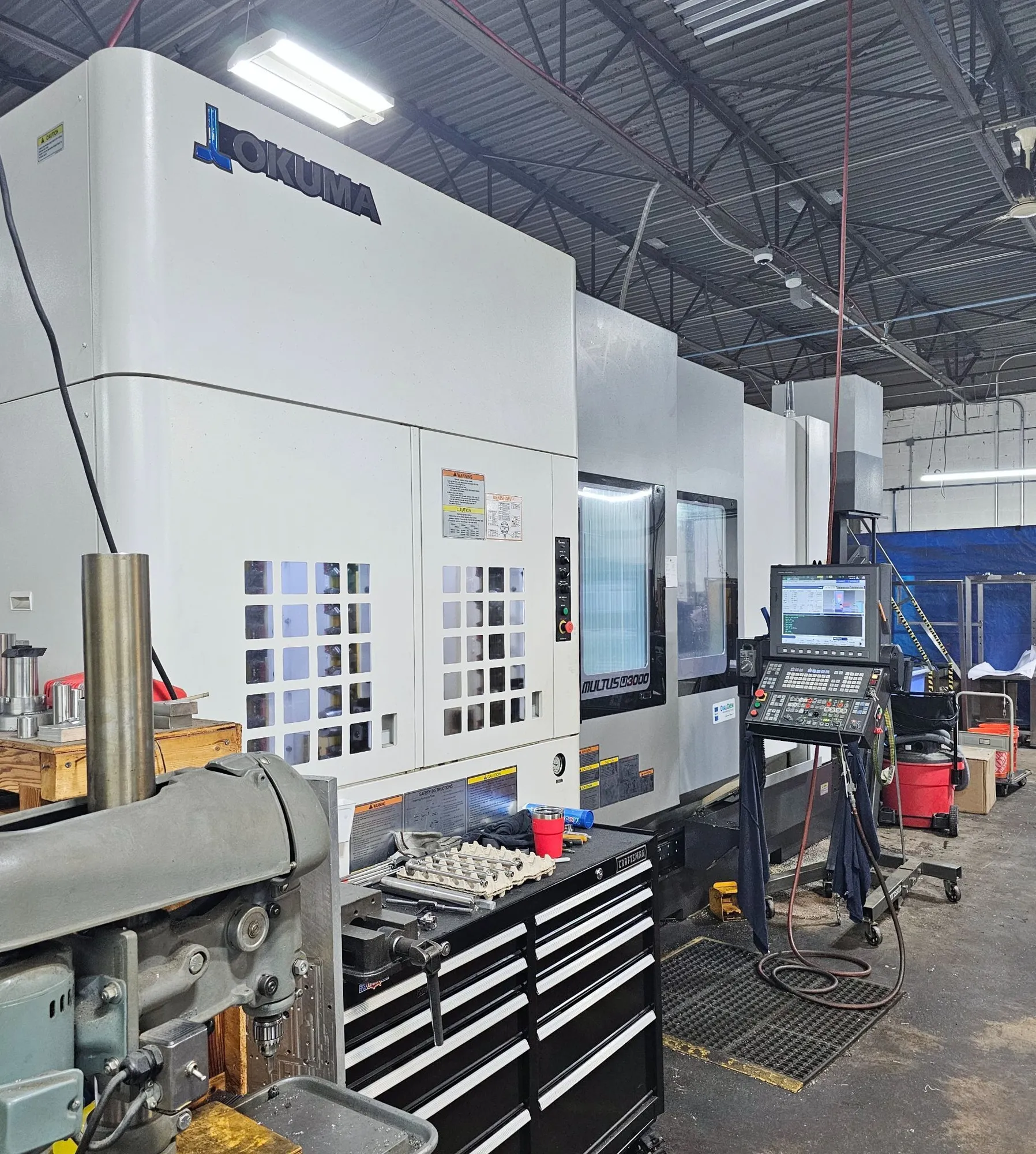

USED 2021 OKUMA MULTUS U30002SW/1500
Overview
Description
OSP-P300SA-L THINC Control, Full 5-Axis, Contouring B-Axis Milling Spindle (12,000 RPM, CAPTO C6), Y-Axis, Lower Turret, Sub Spindle, Big Bore (3.1" Bar Capacity), Royal Collet Chucks, Long Bed (80"), 80 Tool Positions, High-Pressure Coolant, (50) CAPTO Tool Holders Included, only 1,800 Cutting Hours. This 2021 Okuma Multus U30002SW/1500 is in plant, under power and available immediately.
Specifications
| SWING OVER BED | 25.59" | 649.99 mm |
|---|---|---|
| MAX CUTTING DIAMETER | 25.59" | 649.99 mm |
| MAX CUTTING LENGTH | 59.06" | 1,500.1 mm |
| X-AXIS TRAVEL | 25.39" | 644.91 mm |
| Y-AXIS | Yes | Yes |
| Y-AXIS TRAVEL | 9.84" (+/- 4.92") | 9.84" (+/- 4.92") |
| Z-AXIS TRAVEL | 62.99" | 1,599.9 mm |
| BAR CAPACITY | 3.1" | 78.74 mm |
| SPINDLE NOSE | A2-8 | A2-8 |
| SPINDLE MOTOR | 30 hp | 22.4 kW |
| SPINDLE SPEED | 4,200 RPM | 4,200 RPM |
| RAPID TRAVERSE RATE - X-AXIS | 1,968 in/min. | 50 m/min. |
| RAPID TRAVERSE RATE - Y-AXIS | 1,574 in/min. | 40 m/min. |
| RAPID TRAVERSE RATE - Z-AXIS | 1,969 in/min. | 50 m/min. |
| SUB SPINDLE | Yes | Yes |
| SUB SPINDLE - SPINDLE NOSE | A2-6 | A2-6 |
| SUB SPINDLE - SPINDLE MOTOR | 30 hp | 22.4 kW |
| SUB SPINDLE - SPINDLE SPEED | 5,000 RPM | 5,000 RPM |
| SUB SPINDLE / W-AXIS TRAVEL | 62.36" | 1,583.9 mm |
| B-AXIS SPINDLE MOTOR | 30 hp | 22.4 kW |
| B-AXIS MILLING SPEED | 12,000 RPM | 12,000 RPM |
| B-AXIS SPINDLE TAPER | CAPTO C6 | CAPTO C6 |
| B-AXIS TOOL POSITIONS | 80 | 80 |
| B-AXIS ROTATION | 240 DEGREES (+210/ -30) | 240 DEGREES (+210/ -30) |
| TURRET 2 CAPACITY | 12 | 12 |
| TURRET 2 - X-AXIS TRAVEL | 9.25" | 234.95 mm |
| TURRET 2 - Z-AXIS TRAVEL | 62.36" | 1,583.9 mm |
Equipped With
OKUMA OSP-P300SA-L THINC CONTROL
FULL 5-AXIS, CONTOURING B-AXIS MILLING SPINDLE (12,000 RPM, CAPTO C6)
Y-AXIS
SUB SPINDLE
LOWER TURRET (STATIC)
BIG BORE (3.1” BAR CAPACITY – MAIN SPINDLE)
2-SPEED GEARBOX
ROYAL QG-80 COLLET CHUCK (MAIN)
ROYAL QG-65 COLLET CHUCK (SUB)
C-AXIS SYNC (BOTH SPINDLES)
80-TOOL POSITIONS (CAPTO C6)
60”/1500MM BED LENGTH
RENISHAW RMP600 AUTO-GAUGING PROBE
AUTOMATIC TOOL PRESETTER
CHIP CONVEYOR
MP SYSTEMS (VF-8) HIGH-PRESSURE COOLANT UNIT
NIAGARA SHOWER COOLANT
EXO-MIST MIST COLLECTOR
Y-AXIS GAUGING WITH SLOPE GAUGING
C-AXIS AUTO ZERO OFFSET FUNCTION (BOTH SPINDLES)
Z-AXIS AUTO ZERO OFFSET FUNCTION (BOTH SPINDLES)
SUPER NURBS (X+, Y+, Z+, C+, B)
ADVANCED ONE-TOUGH IGF
MULTI-EDGE LATHE TOOL INDEX FUNCTION
THERMO FRIENDLY CONCEPT (SPINDLES & CASTING)
NEGATIVE TOOL RADIUS COMPENSATION
GEOMETRUC ERROR COMPENSATION
GEOMETRIC ERROR GAUGING
TOOL CENTER POINT CONTROL II
STRIAGHTNESS COMPENSATION
COLLISION AVOIDANCE SYSTEM
(8) SETS OF SPARE M-CODES
SPINDLE FLUCTUATE
FIXTURE TRACKING
SYNCHRO TAPPING
SPINDLE SYNC TAP
ARC THREAD CUT
3D ANIMATION
ANIMATION
HI-CUT PRO
MAC MAN
(50) CAPTO C6 TOOL HOLDERS
MORE OSP OPTIONS THAN LISTED (OSP DATA CARD AVAILABLE, UPON REQUEST)
** AS OF JUNE 2026, CUTTING TIME – 1,876 HOURS
** FULL REPLACEMENT COST, AS EQUIPPED - $950,000+
** MACHINE CUT PRIMARILY STAINLESS STEEL, PLASTIC & HASTELLOY
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
