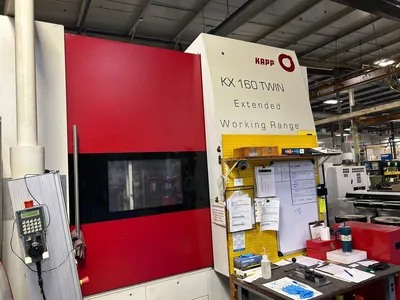

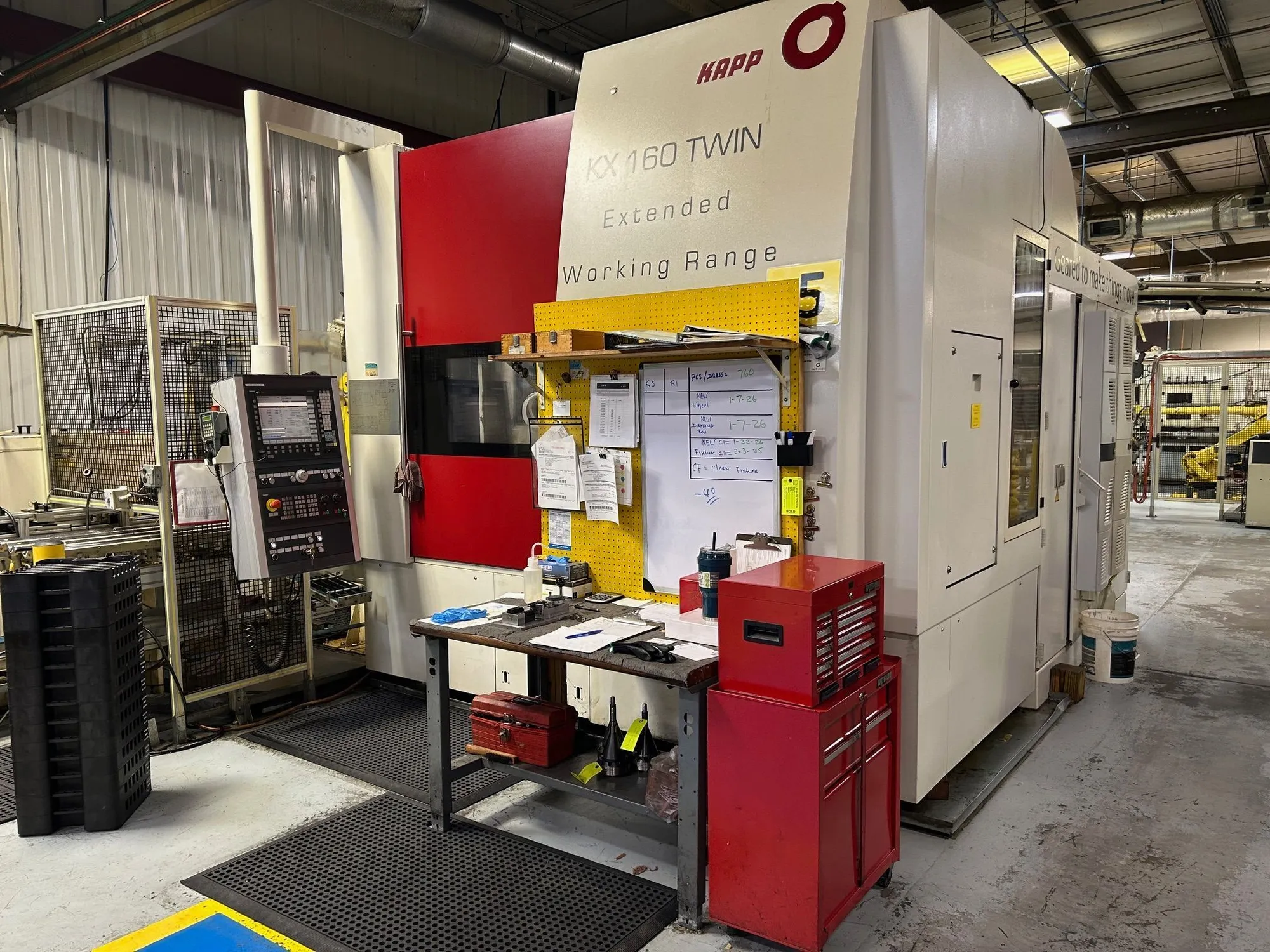

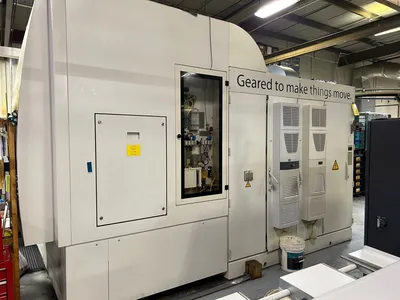

KAPP KX160 TWIN Gear Grinder. Features Siemens 840D, Hoffman filtration, and Fanuc automation. Handles up to 170mm workpiece.
| Generating Grinding | YES | YES |
| Profile Grinding | NO | NO |
| Internal Grinding | NO | NO |
| Worm Grinding | NO | NO |
| Workpiece Diameter (max.) | 170 mm | 6.6929" |
| Work Area Over Table (max.) | 6.3" | 160.02 mm |
| Grinding Stroke (max.) | 13.78" | 350 mm |
| Module | 4.5 | 4.5 |
| Grinding Wheel Speed (max.) | 6,000 RPM | 6,000 RPM |
| Swivel Angle (min.) | -45° | -45° |
| Swivel Angle (max.) | 45° | 45° |
| Grinding Wheel Diameter (min.) | 4.72" | 119.89 mm |
| Grinding Wheel Diameter (max.) | 10.236" | 259.99 mm |
| Grinding Wheel Width (max.) | 12.598" | 320 mm |
| Grinding Worm Width (max.) | 300 | 300 |
| Axial Travel | 13.78" | 350 mm |
| Diametral Pitch | 0 | 0 |
| Maximum Workpiece Length | 11.81" | 299.97 mm |
| Grinding Spindle | 33.5 hp | 25 kW |
| Table Load (max.) | 220 lb | 99.8 kg |
| Control Manufacturer | Siemens | Siemens |
| Control | CNC (SIEMENS 840D) | CNC (SIEMENS 840D) |
| Dimensions | 3.25 x 3.25 x 3.30 m | 3.25 x 3.25 x 3.30 m |
| Weight | 15.50 T | 15.50 T |
Specifications:
Maximum Wheel Diameter: 260 mm
Gear Width: 320 mm
Maximum Module: 4,5
Minimum Module: 0,5
Maximum Helix Angle: +/- 45 Degrees
Total Power Requirement: 68 kW
Machine Weight: 15,50 T
Machine Dimensions: 3,25 x 3,25 x 3,30 m
Number of Teeth: 1 - 999
X-Axis: 345 mm
Y-Axis: 250 mm
Z-Axis: 320 mm
B-Axis: 360 Degree
C-Axis: 360 Degree

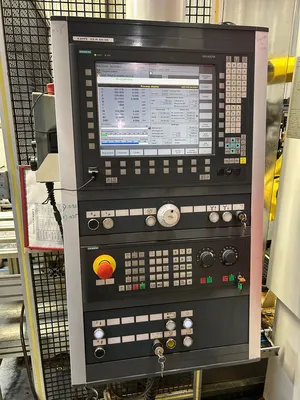

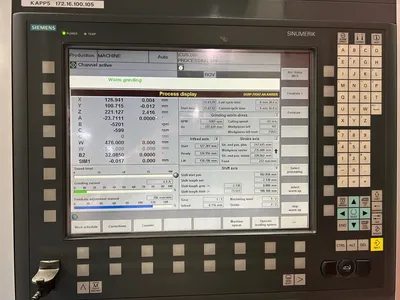

Siemens 840D Control

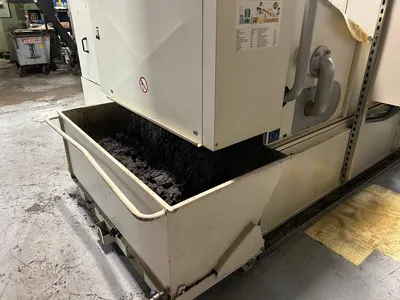

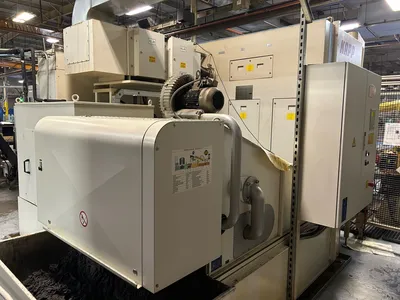

Hoffman Filtration System
Extended Working Range
Rotary Dresser
Load Table
Hand Held HMI

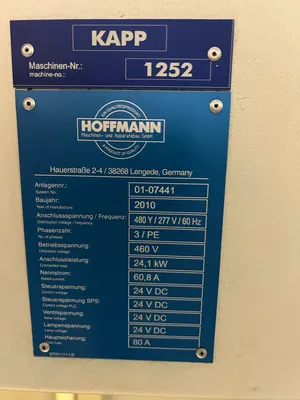

3/60/460 Electrics

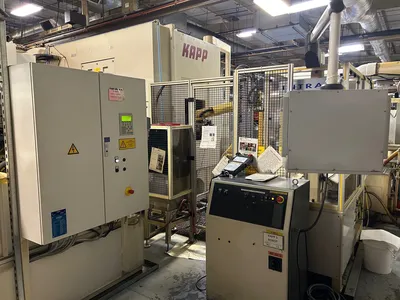

Creative Automation Cell
---Fanuc Robot
---Fanuc System AR-30ia Controller
---Grapar Cap Auto/Wash
---Intra Gaging
