6” x 6” x 3/8” BUFFALO “2-1/2H” HORIZONTAL ANGLE BENDING ROLL - Extra Rolls - Readout - 30 HP Motor
| Angle (L1) | 6" | 152.4 mm |
| Angle (L2) | 6" | 152.4 mm |
| Angle (T) | 0.375" | 9.525 mm |
| Pipe Capacity | 5" | 127 mm |
| (Init/Dbl Pinch or Pyramid) | 'PYRAMID' | 'PYRAMID' |
| Operation (Horz, Vert, Horz/Vert) | 'HORZ' | 'HORZ' |
| Power | 30 hp | 22.4 kW |
| Dimensions | 72” x 76” x 68” | 72” x 76” x 68” |
| Weight | 20600 LBS | 20600 LBS |

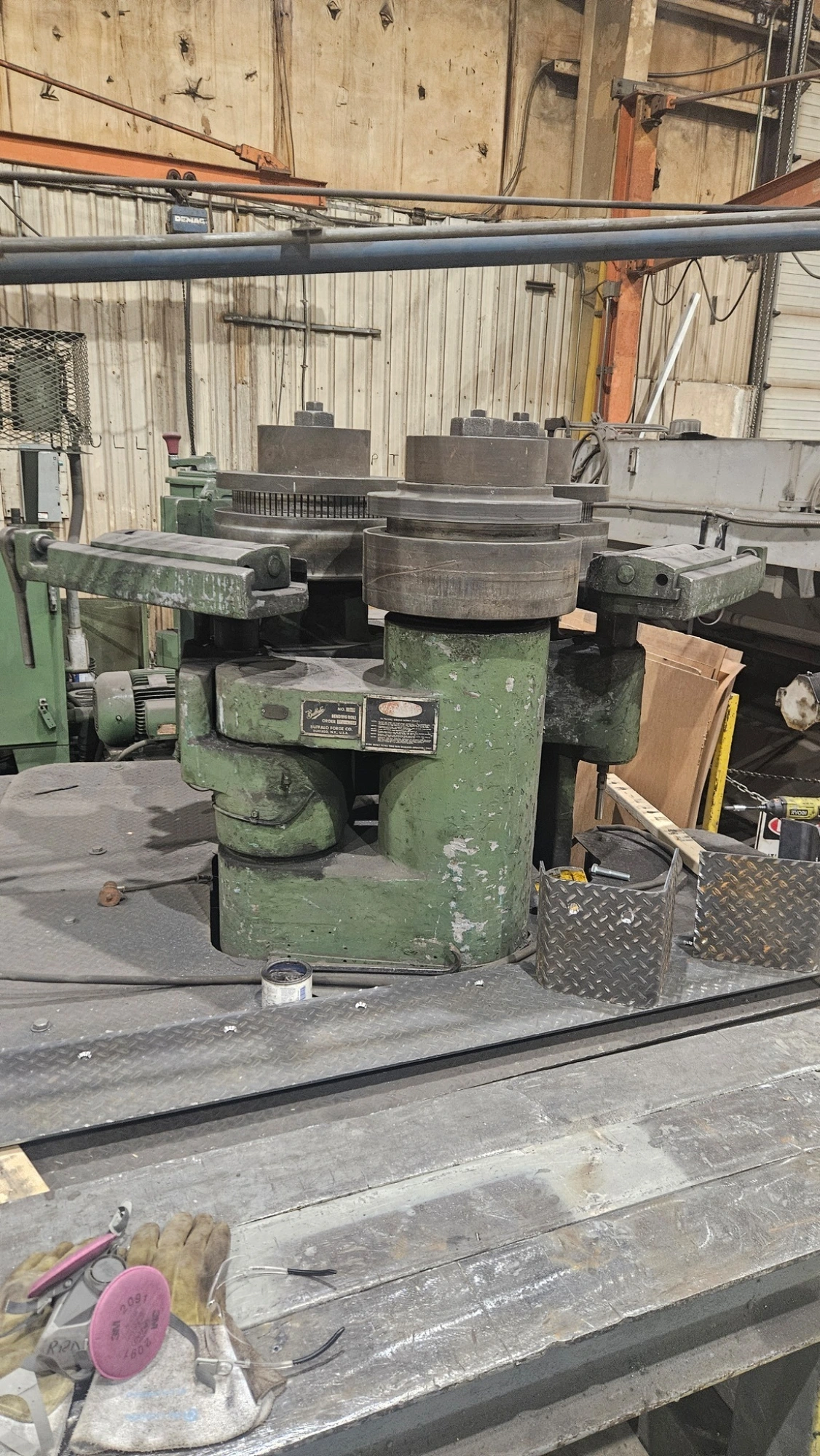

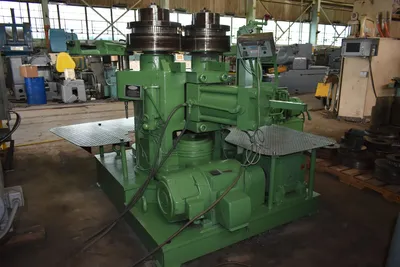

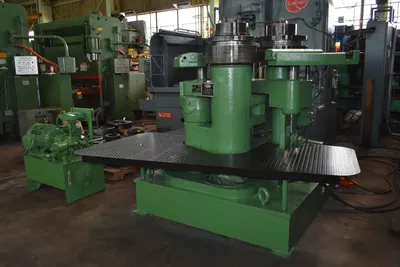

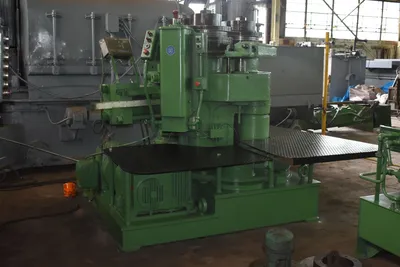

6” X6” X 3/8” BUFFALO HORIZONTAL ANGLE BENDING ROLL
Serial No 77U-4782, Model 2-1/2H
EQUIPPED WITH:

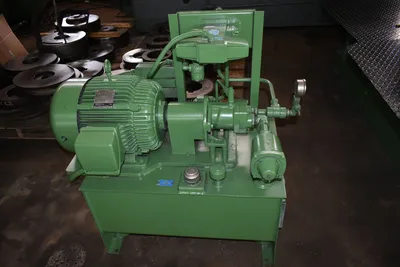

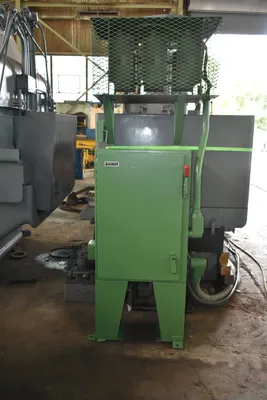

Control Console w/Forward & Reverse
Set Of Rolls On Machine

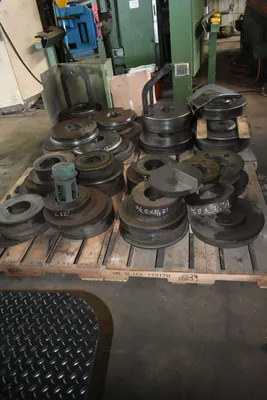

Extra Rolls
CATALOG SPECIFICATIONS:
Bending Capacity at Minimum Diameter:
Leg-In Angles, Angle Sides 6" x 6" x 3/8”
Minimum Inside Diameter 134”
Leg-Out Angles, Angle Sides 6" x 6" x 3/8”
Minimum Inside Diameter 72”
Flat On Flat 10" x 2"
Minimum Inside Diameter 50”
Flat On Edge 6" x 1-1/4"
Minimum Inside Diameter 84”
Flange-In Channels 12" @ 30#
Minimum Inside Diameter 48”
Flange-Out Channels 12" @ 30#
Minimum Inside Diameter 48”
Beam On Flange 12" @ 50#
Minimum Inside Diameter 72”
Solid Round Bars 3-3/4"
Minimum Inside Diameter 48”
Solid Square Bars 3-1/4"
Minimum Inside Diameter 72”
Standard Steel Pipe 5"
Minimum Inside Diameter 60”
XH Steel Pipe 5”
Minimum Inside Diameter 75”
XXH Steel Pipe 4”
Minimum Inside Diameter 48”
Roll Tonnage Adjustable 100 TONS
Roll Travel Adjustable 7.5”
Lower Roll Centers 21”
Angle Rolls, Diameter 20"
Upper-Shaft, Diameter 6"
Lower-Shaft, Diameter 6"
Roll Speed, Maximum 5 RPM
Linear Speed of Workpiece 30 FPM
Main Drive Motor, Horsepower 30 HP
Hydraulic Pump Motor, Horsepower 15 HP
Overall Dimensions, L x W 72” x 76”
Overall Height 68”
Weight, Approximately 20600 LBS
