| Machining Length | 2.36" | 59.944 mm |
| # Axis | 2 | 2 |
| Power | 7.5 hp | 5.6 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turning Dia | 0" | 0 mm |
| Tailstock | No | No |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Fanuc Oi-TF series CNC Control) | CNC (Fanuc Oi-TF series CNC Control) |
| Dimensions | 31.5″ x 66″ x 71″ High Approx. | 31.5″ x 66″ x 71″ High Approx. |
| Weight | 3792 lbs. Approx. | 3792 lbs. Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

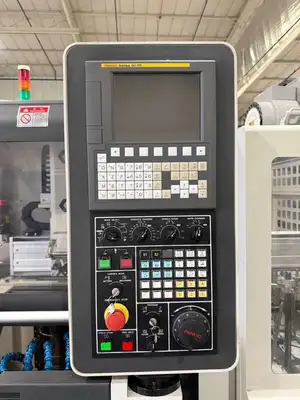

Fanuc Oi-TF series CNC Control
Coolant Tank
Chip Pan

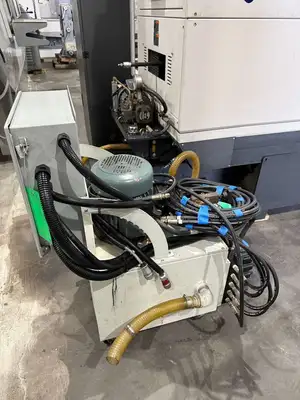

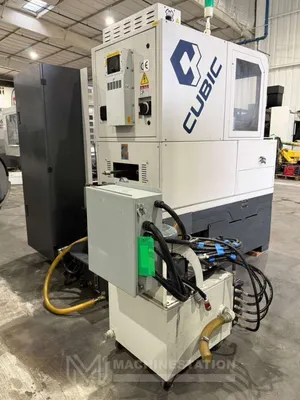

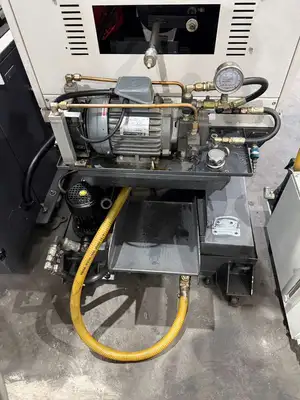

Hydrualic Unit
Capacity:
Max Turning Diameter: 1-3/16″ (30 mm)
Max Turning Length: 2.36″ (60 mm)
Max Spindle Bore: 1.77″ (45 mm)
Travels:
X Axis Travel: 8.27″ (210 mm)
Z Axis Travel: 7.87″ (210 mm)
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 787 IPM
Spindle:
Spindle Bore: 1.77″ (45 mm)
Spindle Speed: 6,000 RPM
Spindle Motor: 7.5 HP
Gang-Tool:
Number of Tools: 6 ( 2 OD and 4 ID )
Turning Tool: 0.63″ (16 mm)
Drill Shank: 3/4″ (20 mm)
General:
Power: 220v / 3-Phase
Overall Dimensions: 31.5″ x 66″ x 71″ High Approx.
Weight: 3792 lbs. Approx.
Collet Chuck
Auto Parts Loading System

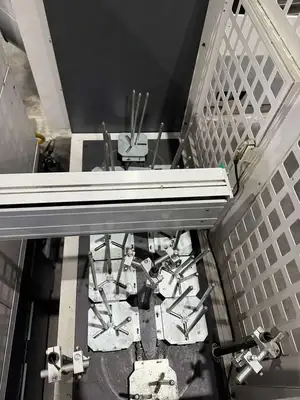

12 Station Rotary Stacker

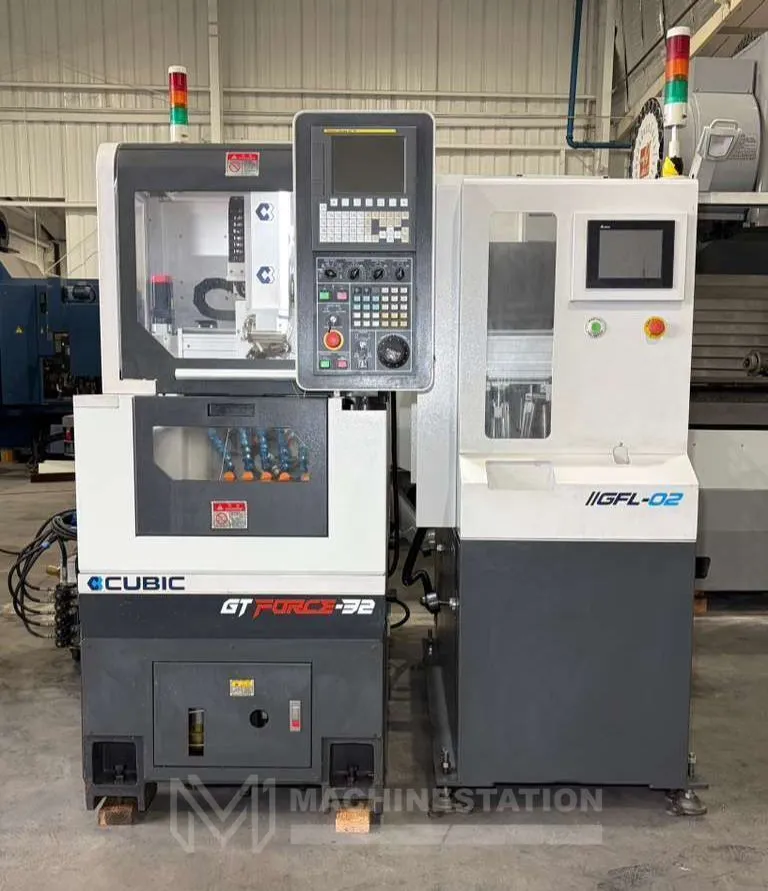

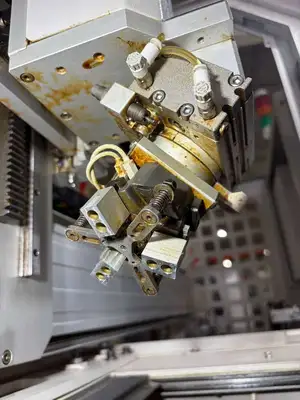

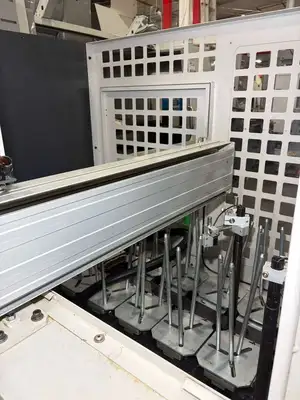

Integrated Gantry Robot

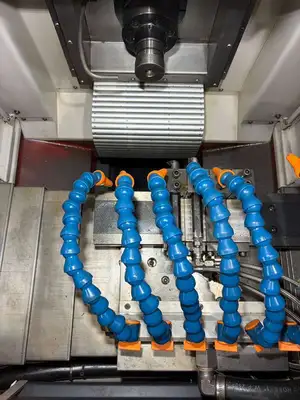

6-Gang Tool Setup
Auto Door
