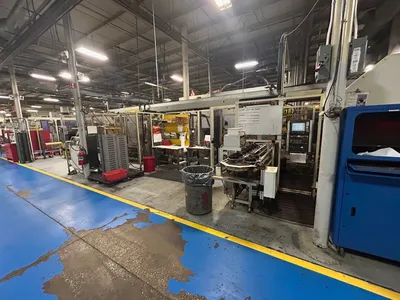

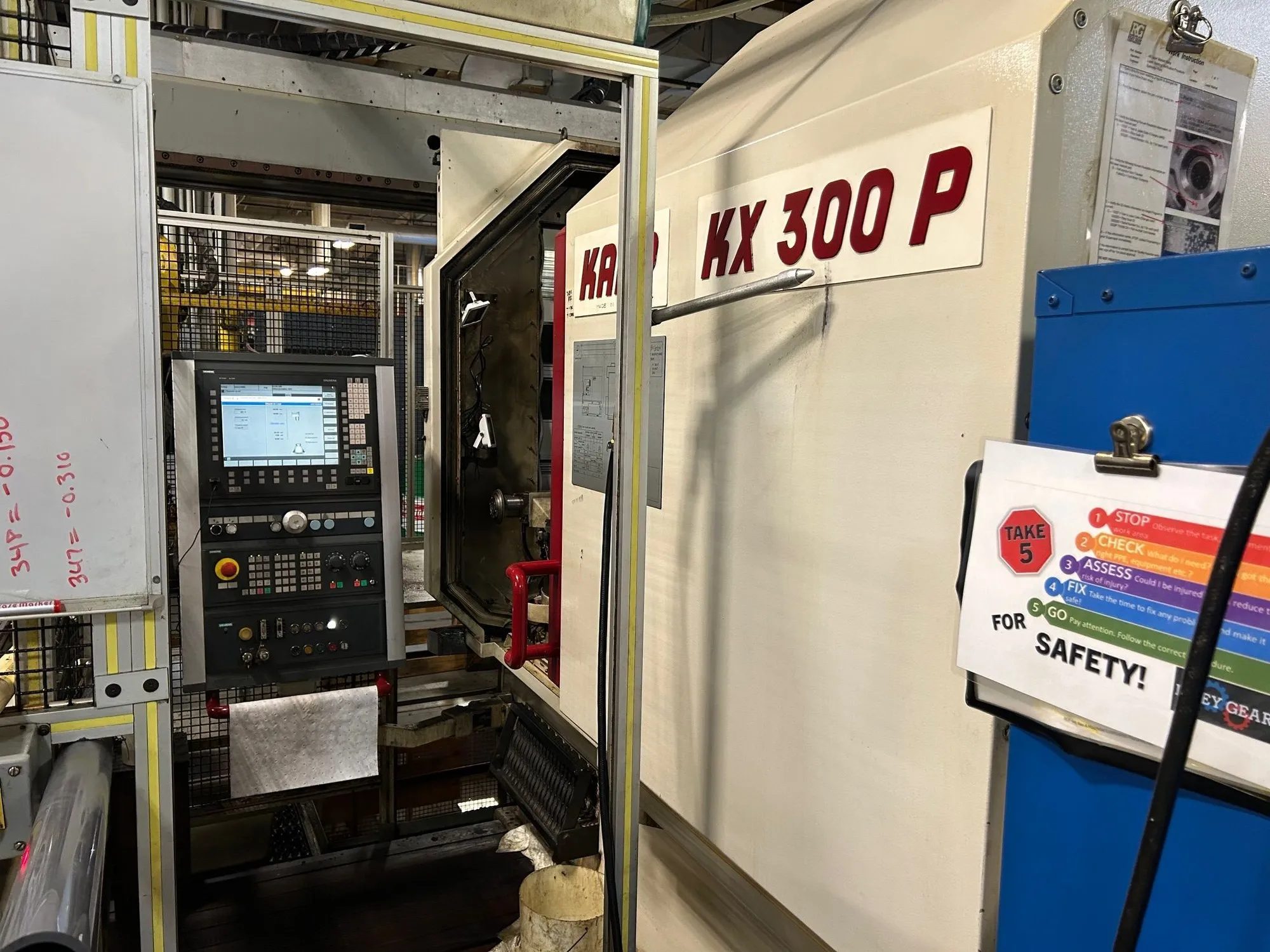

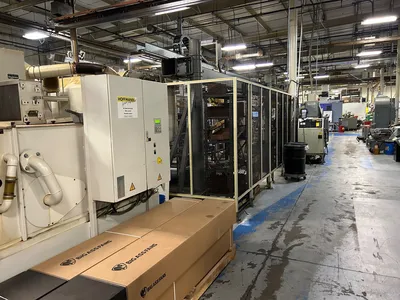

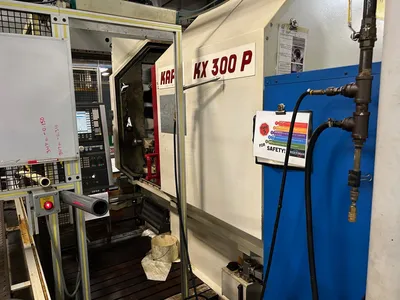

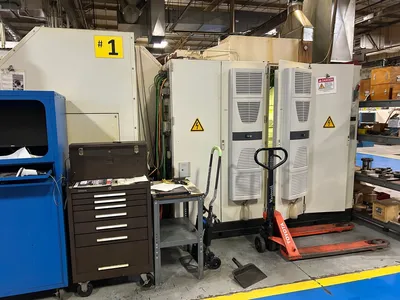

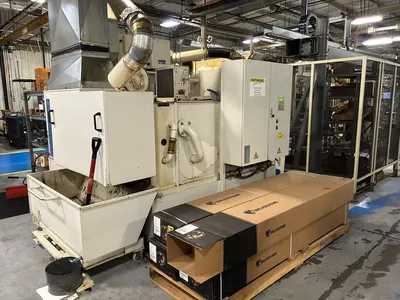

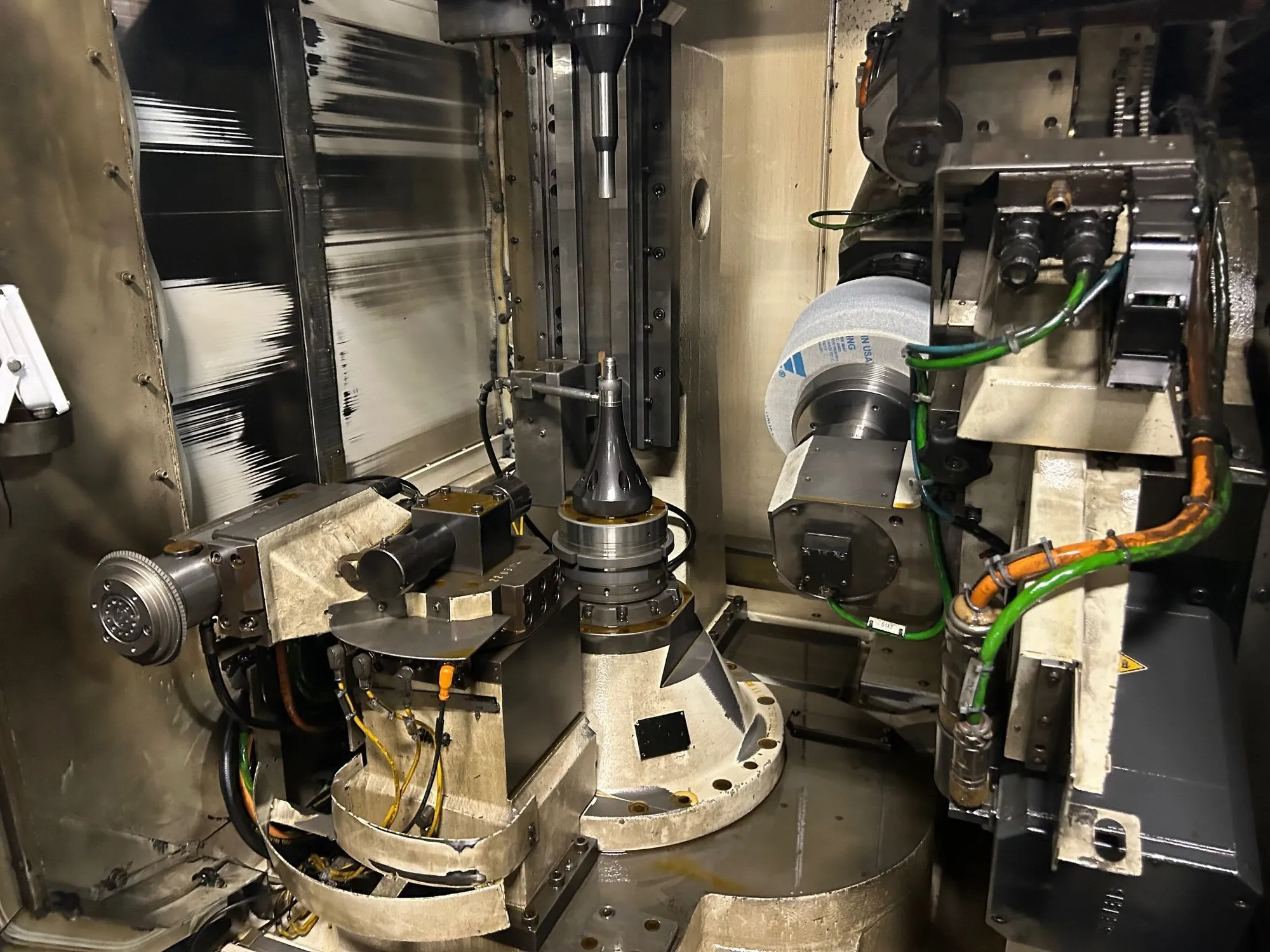

KAPP KX 300P CNC Gear Grinder available. Max workpiece diameter: 300 mm, Siemens 840D control, Hoffman Filtration, rotary dresser, load table and more.
| Workpiece Diameter (max.) | 300 mm | 11.811" |
| Module | 0.5/10 | 0.5/10 |
| Swivel Angle (min.) | 45° | 45° |
| Swivel Angle (max.) | 45° | 45° |
| Grinding Wheel Diameter (max.) | 11.81" | 299.97 mm |
| Grinding Wheel Width (max.) | 12.59" | 319.79 mm |
| Control Manufacturer | Siemens | Siemens |
| Control | CNC | CNC |
| Dimensions | 440.94 x 216.54 x 114.17 | 440.94 x 216.54 x 114.17 |
| Weight | 51700.096 | 51700.096 |
Specifications:
Maximum Wheel Diameter: 300 mm
Gear Width: 320 mm
Minimum/Maximum Module: 0,5/10
Maximum Helix Angle: 45 Degree
Frequency: 50 Hz
Voltage; 400 V
Main Fuse: 125 A
X-Axis: 270 mm
Y-Axis: 250 mm
Z-Axis: 320 mm
A-Axis: +/- 45 Degrees
B-Axis: 360 Degrees
C-Axis: 360 Degrees
Total Power Requirement: 89 kW
Machine Weight: 23,5 T
Machine Dimensions: 11,2 x 5,5 x 2,9 m

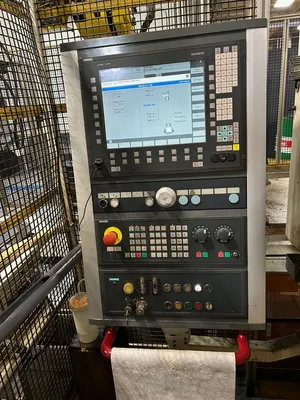

Siemens 840D Control

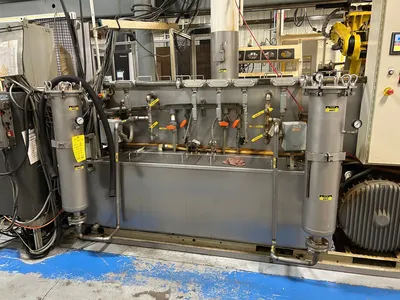

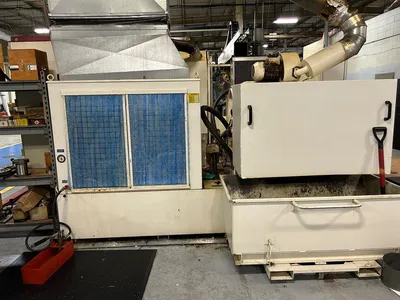

Hoffman Filtration
Extended Tailstock
Rotary Dresser
460/3/60 Electrics
Load Table

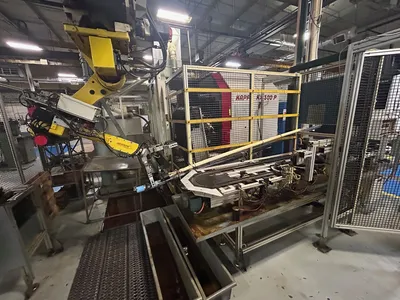

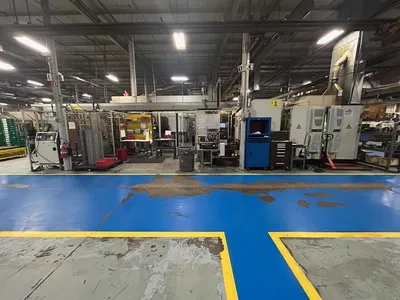

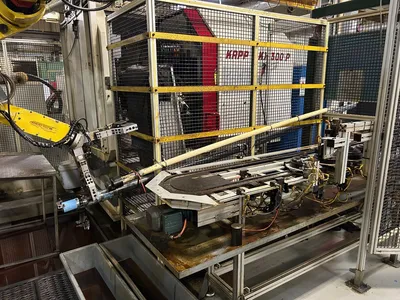

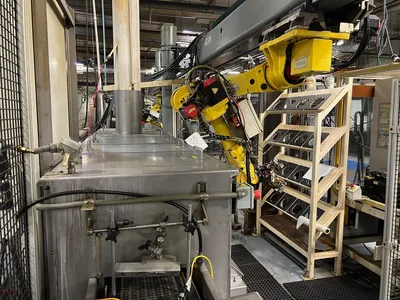

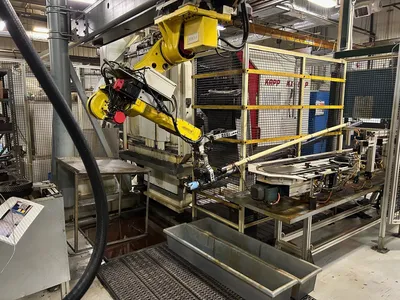

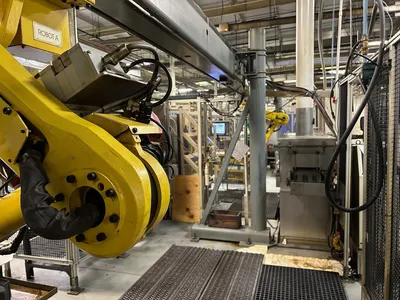

Creative Automation Cell:

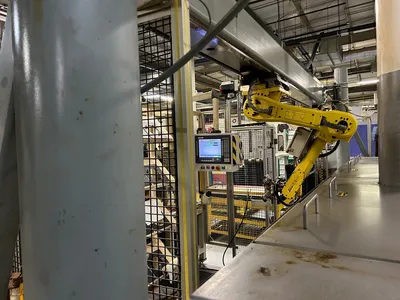

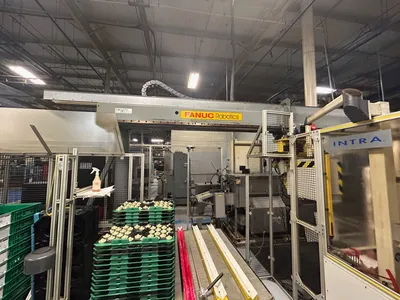

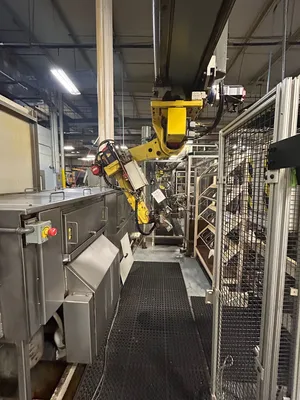

---Fanuc Robotic Rail

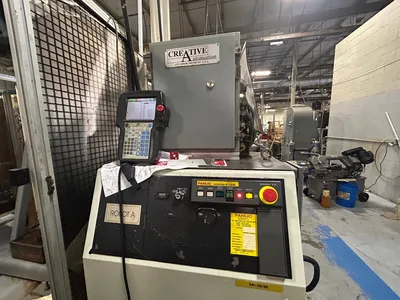

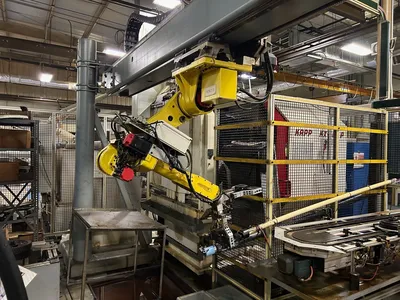

---(2) Fanuc M161iB Robots

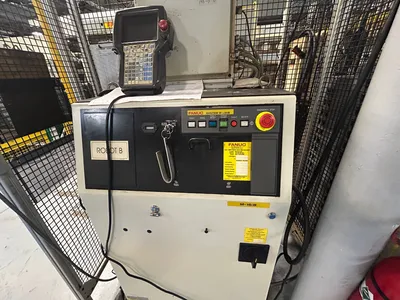

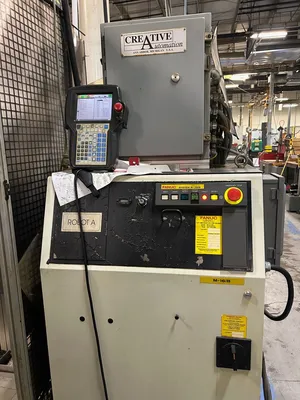

---(2) Fanuc R-J3iB Controllers

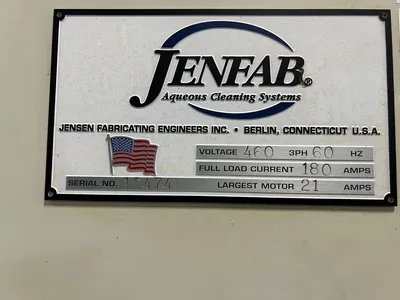

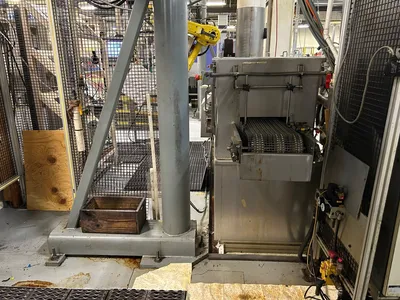

---Jenfab Washer - Washer - Blowoff
---Intra Gaging
---Packout Station
